Location in exploded diagrams

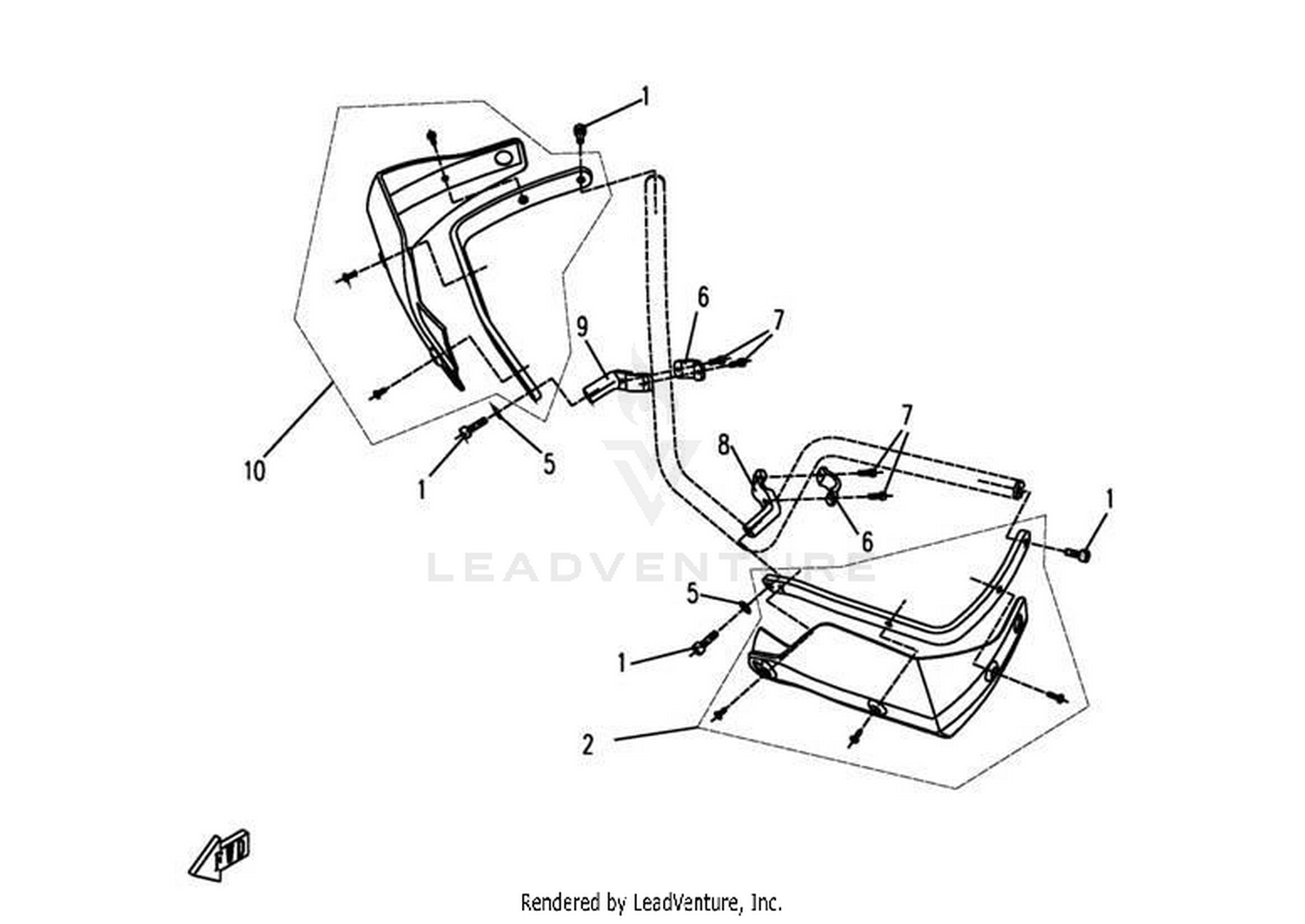

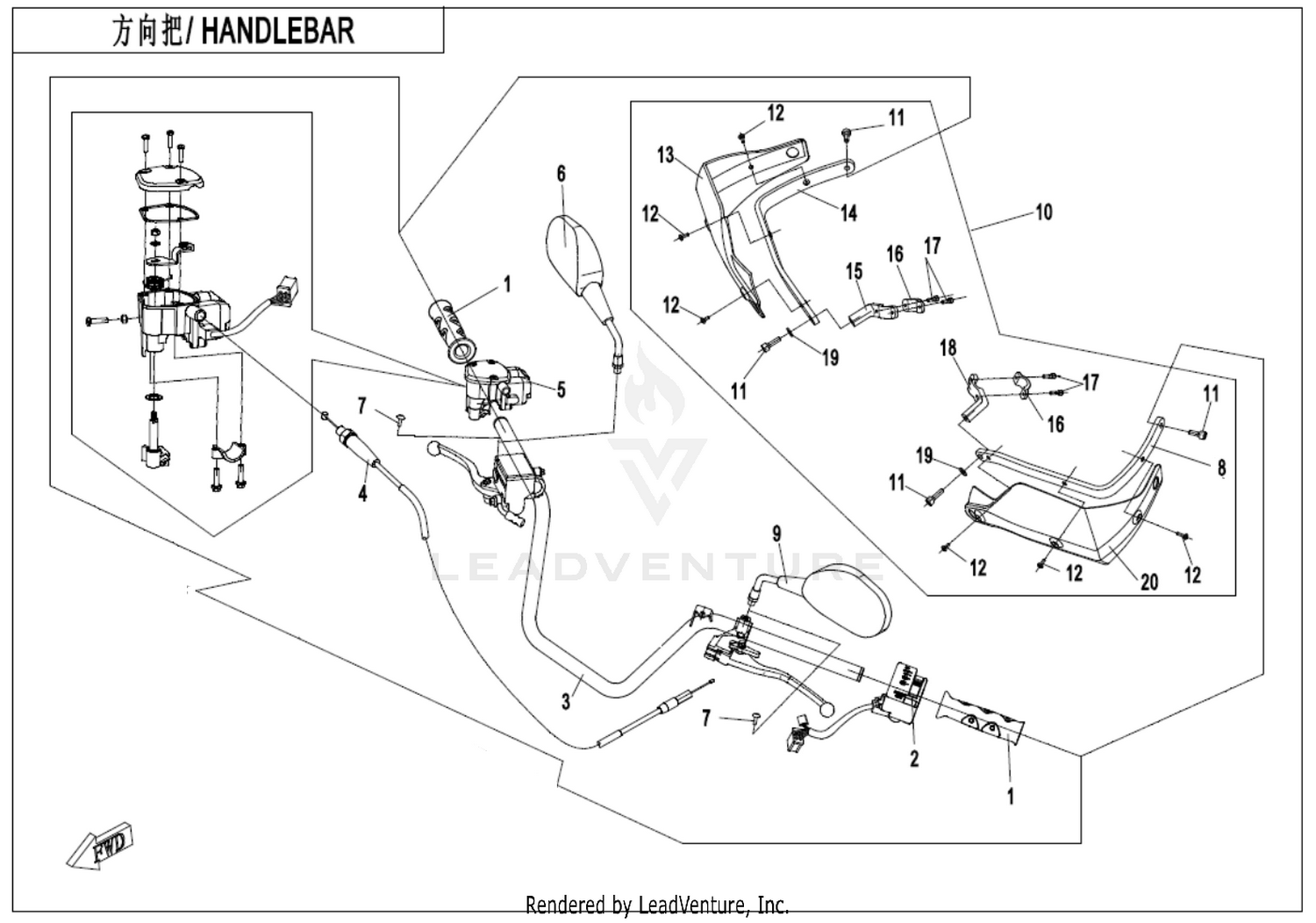

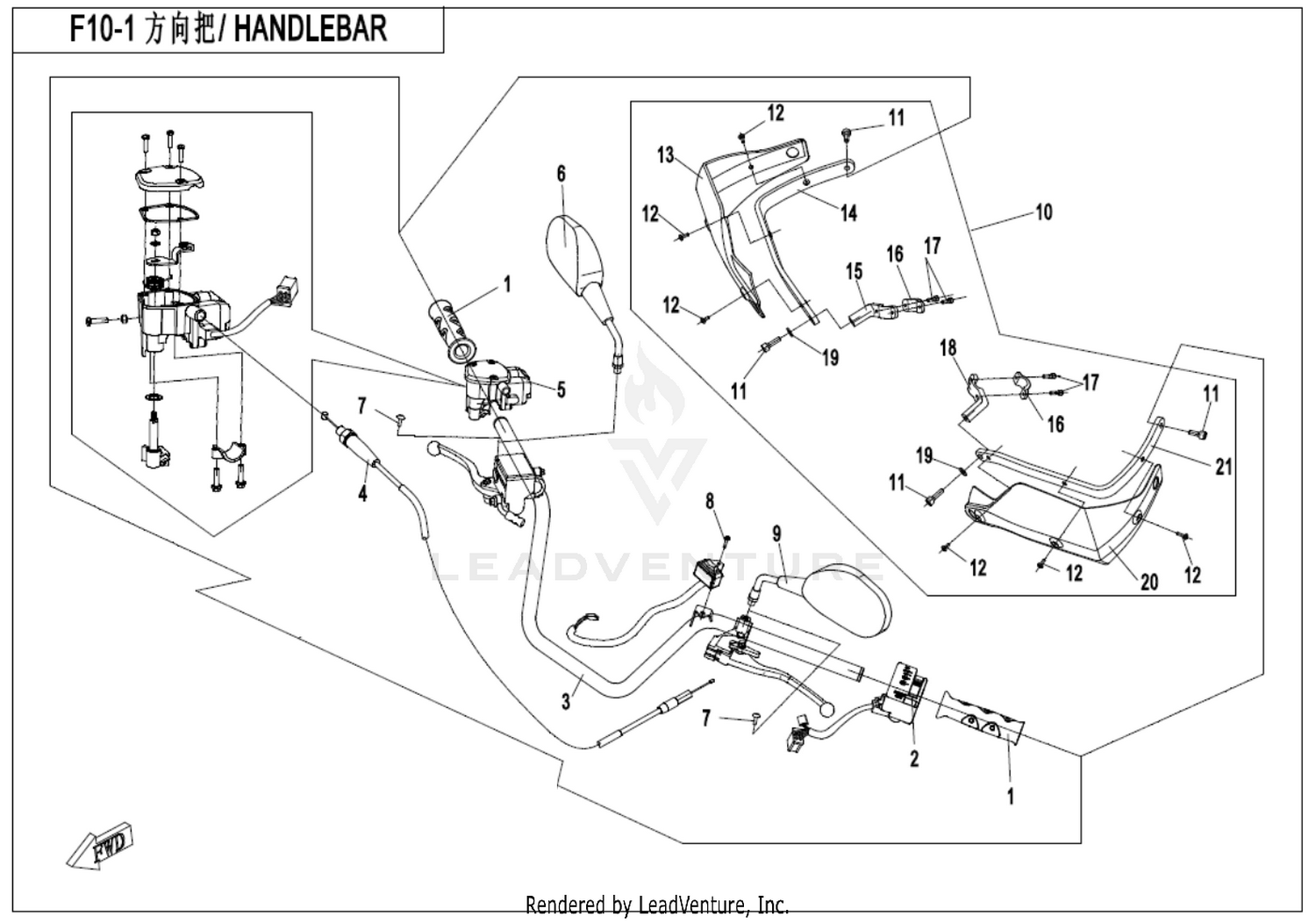

Other parts on this diagram — Handlebar(For Russia)
- #02 9GQ0-105000 — Throttle Cable
- #10 9050-100200 — Hand Guard Assy
- #05 9CRB-160700 — Differential Rh Switch Assy Ordinary
- #04 30102-080020810 — Screw M8X20@Trivalent Chromium
- #17 30102-050020810 — Screw M5X20@Trivalent Chromium
- #02 5190-200300 — Rh Rear View Mirror
- #17 30105-050010410 — Screw M5X10
- #08 401B-100201 — Bracket, Lh Hand Guard
- #04 8060-100001 — Lh Hand Grip
- #19 9010-080004 — M8 Rubber Plug
- #10 401B-100220 — Rh Hand Guard Assy
- #09 30305-080112 — Washer F8
- #10 9CR6-160600 — Lh Handlebar Switch Assy Day Running Light
- #12 30006-060012810 — Bolt M6×12
- #14 401B-100222 — Rh Handguard
- #02 401B-100210 — Hand Guard Assy, Lh
- #01 401B-100100 — Handlebar Assy
- #03 5190-200200 — Rear View Mirror, Lh
- #09 401B-100202 — Rh Hand Guard Bracket
- #08 401B-100212 — Hand Guard, Lh
