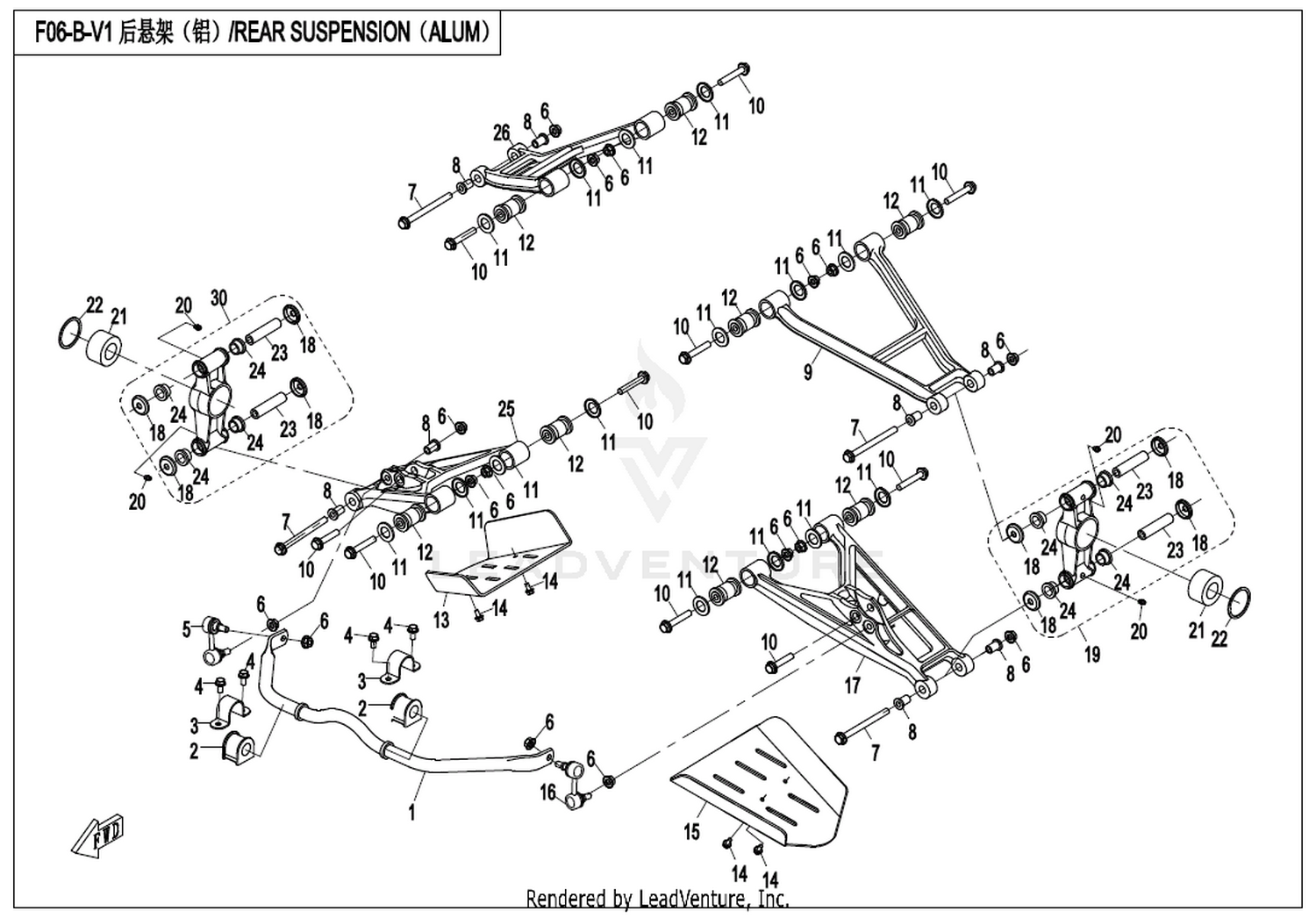

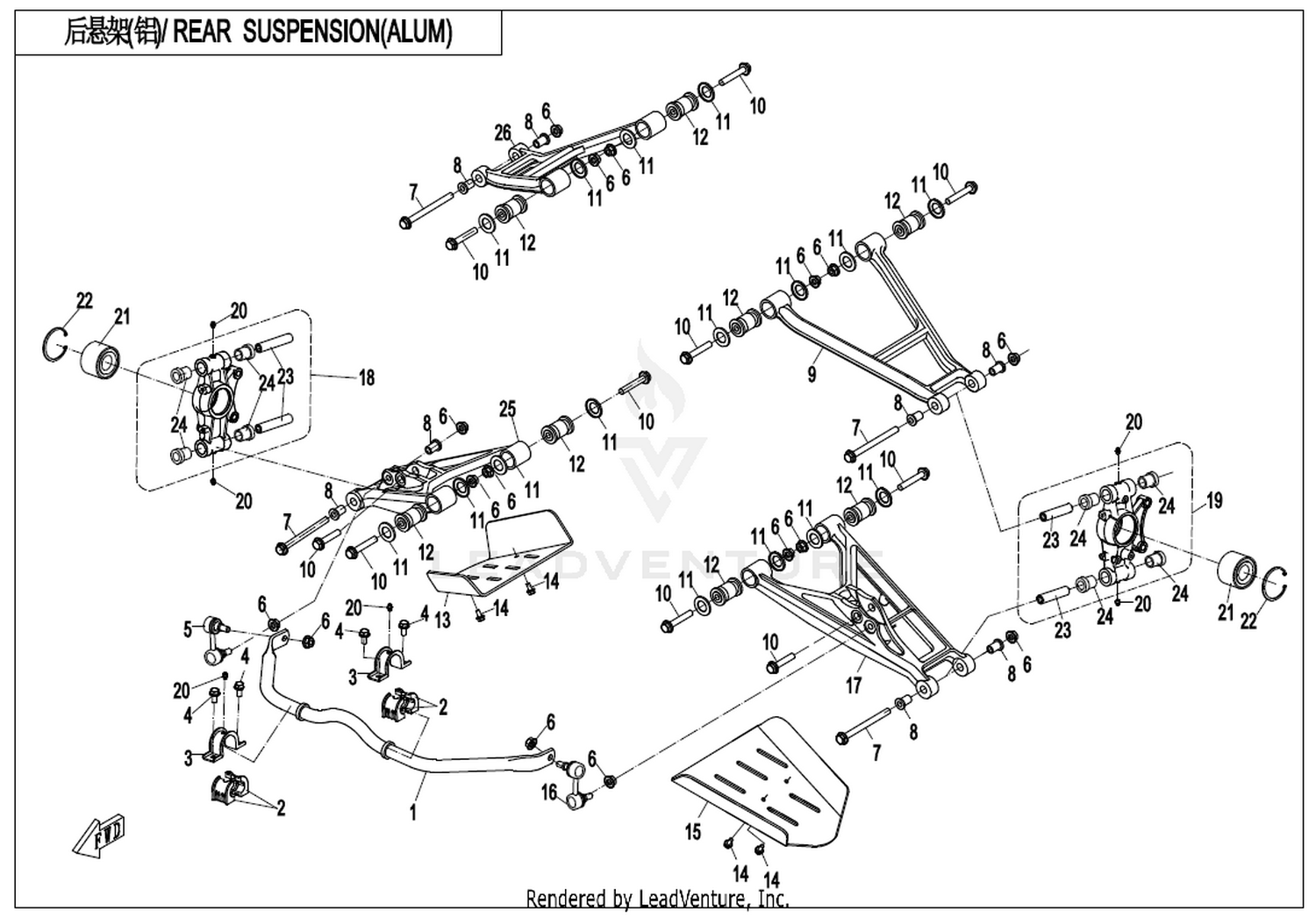

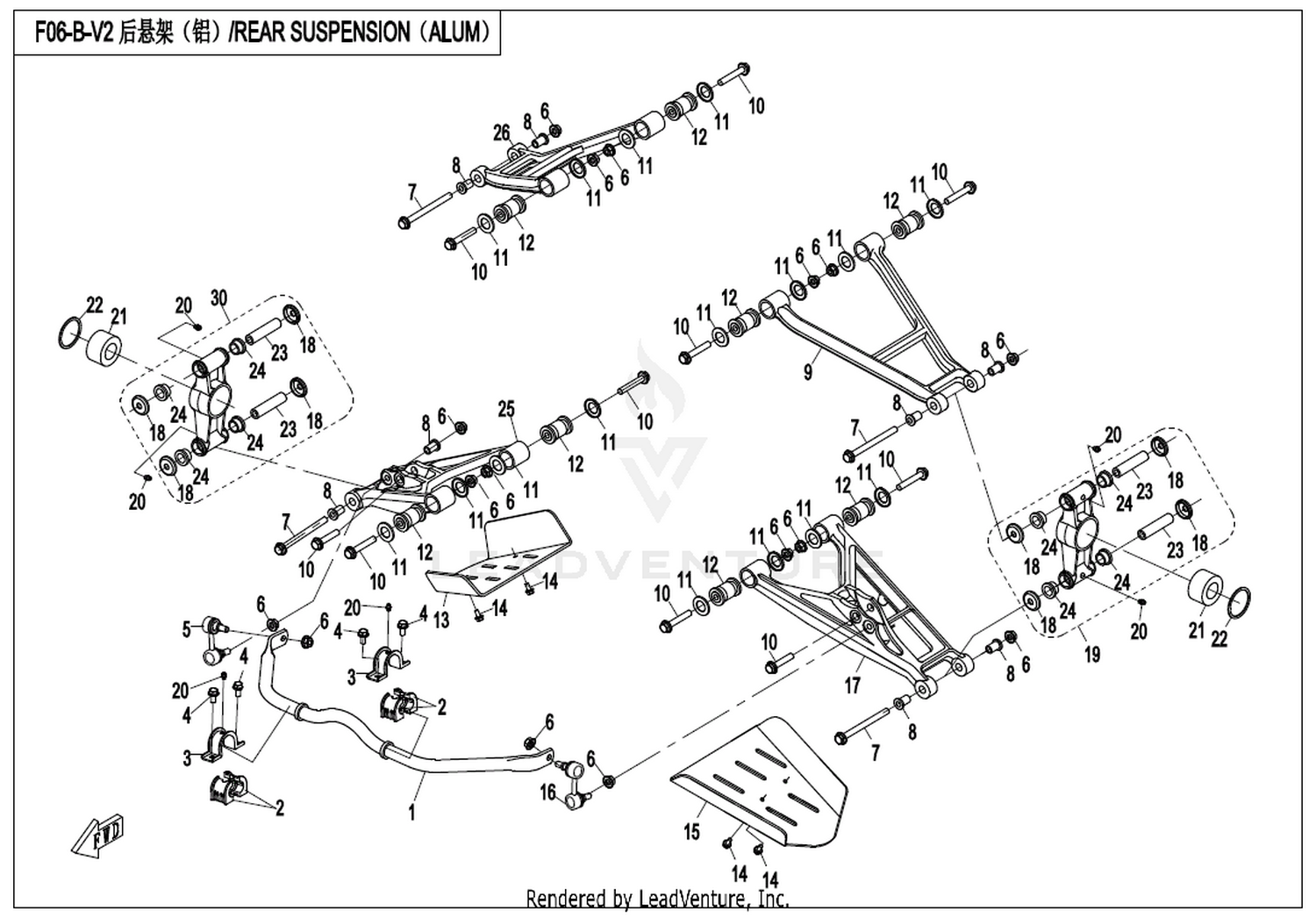

Location in exploded diagrams
Other parts on this diagram — Rear Suspension(Alum) 1
- #18 30006-080012810 — Bolt M8×12
- #13 30006-102140810 — Bolt M10×1.25×140
- #22 30006-102070810 — Bolt M10X1.25X70@Color Zinc Trivalent Chromium
- #13 7020-060002 — Rear Rh Swing Arm Panel
- #17 7020-060401-10000 — Rear Lower Swing Arm, Lh
- #06 3120100 — Oil Cup
- #23 9010-060005 — Middle Spacer
- #26 401B-060101-00001 — Needs Description
- #08 9010-060800-20000 — Rh Ball Pin Assy Ccvi
- #08 401B-060001 — Rear Swing Arm Sleeve
- #11 9010-050003 — Cushion Sleeve Cap
- #04 30006-060016870 — Bolt M6×16
- #18 9010-060900 — Anti-Dust Cap
- #21 9GQ0-050710 — Bearing, Hub
- #24 9010-060004 — Bushing
- #01 9010-060500 — Sway Bar
- #04 30204-102810 — Nut M10×1.25
- #09 401B-060301-00001 — Rear Upper Lh Swing Arm
- #12 9010-050500 — Cushion Sleeve Assy
- #15 7020-060001 — Panel, Lh Rear Swing Arm
- #19 9010-0600A0 — Rear Bearing Carrier Assy
- #25 30800-05505 — Circlip For Hole Black
- #25 7020-060201-10000 — Rear Swing Arm (Lower), Rh
- #02 9GQ0-060003 — Supporter, Sway Bar
