Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 51.90 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 47.99 | listing | cfmoto.quadzillaparts.co.uk |

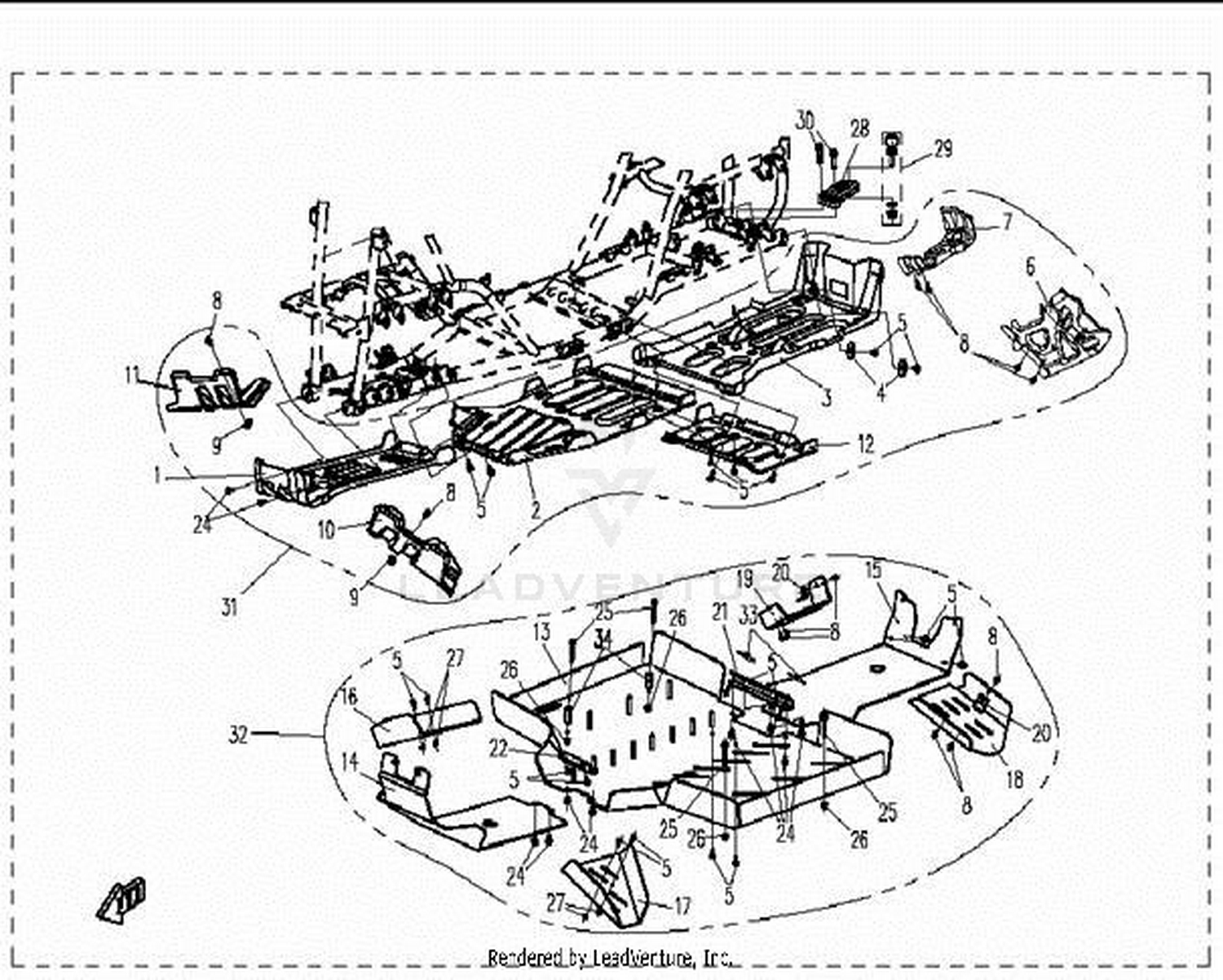

Location in exploded diagrams
Other parts on this diagram — Engine Skid Plate & Towing
- #04 30006-060016870 — Bolt M6×16
- #16 901B-040024 — Front Rh Suspension Fender
- #05 30006-060020870 — Bolt M6×20
- #02 9010-205000 — Towing Hitchball Assy 2"
- #20 901B-040021-10000 — Lh Fender, Rear Suspension
- #13 401B-000410 — Middle Panel Assy
- #19 401B-000406 — Panel, Rear Rh Suspension
- #15 30204-080810 — Lock Nut M8
- #47 30102-102040840 — Needs Description
- #01 9010-040017-A000 — Front Panel, Engine
- #24 901B-040022-10000 — Rear Suspension Fender, Rh
- #14 401B-000401 — Front Panel
- #20 401B-000407 — Panel Connecting Stell
- #14 30204-060810 — Nut M6
- #31 9050-0404A0 — Plastic Panel Assy
- #03 9010-040016-1000 — Middle Panel, Engine
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #15 401B-000408 — Rear Panel
- #21 401B-000414 — Connecting Plate 3, Panel
- #45 9010-030002 — Towing Bracket
- #32 401B-0004A0 — Alum. Protection Plate Assy
- #04 9010-040015 — Rear Panel, Engine
- #08 8030-040800-00001 — Nut Clip M6 M6
- #16 401B-000404 — Panel, Front Rh Suspension
