401B-000002Heat Insulation Paper, Air Outlet Pipe — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 13 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

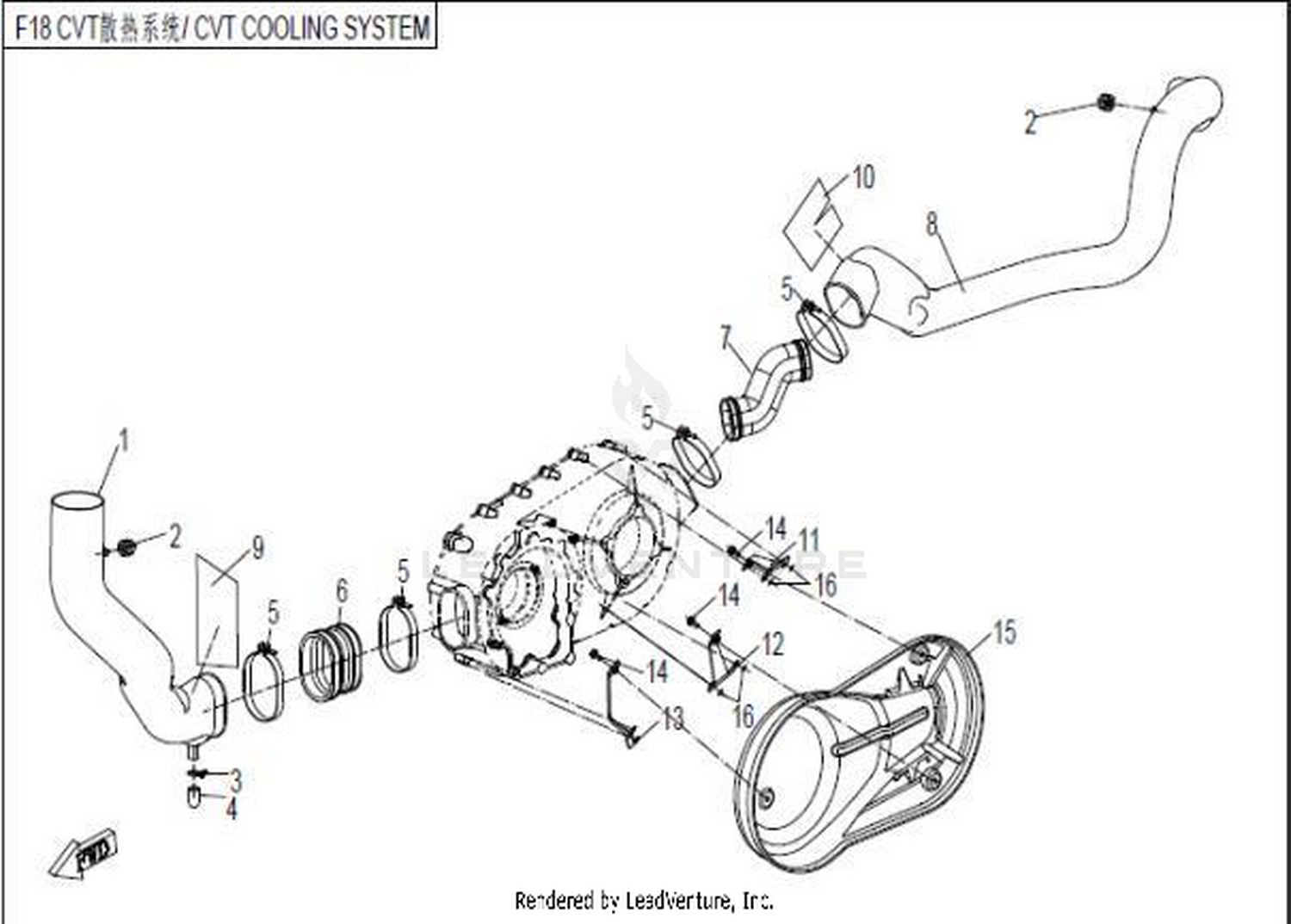

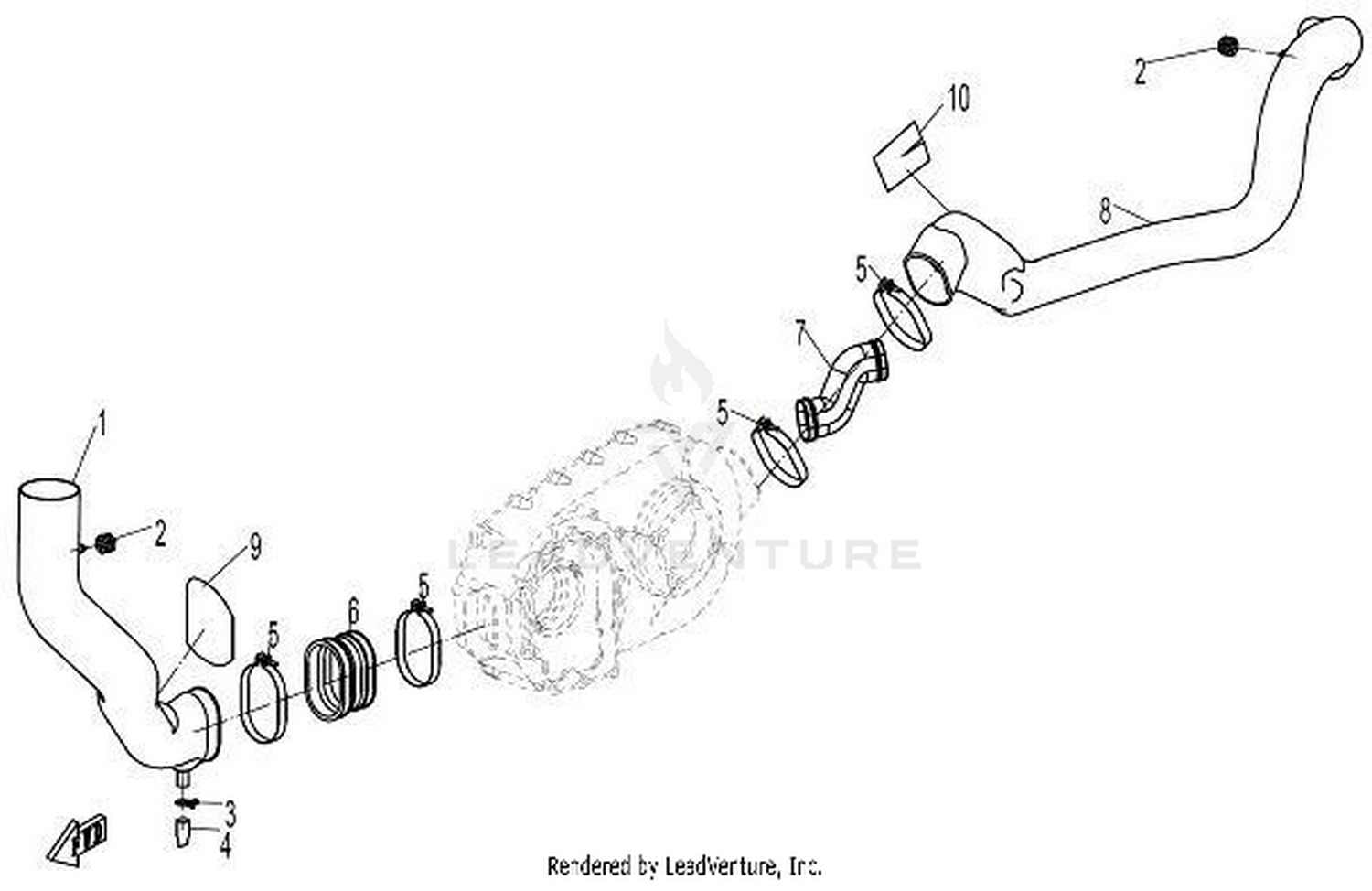

Location in exploded diagrams
Other parts on this diagram — Cvt Cooling System 1
- #16 0180-110005 — Oil Storage Hose
- #15 30303-060112 — Washer F6
- #12 9010-000105 — A-Type Screw Clamp 78-101
- #11 9010-000110 — Rear Upper Bracket, Engine Guard
- #06 9010-000101 — Joint, Air Inlet Duct
- #12 9010-000120 — Rear Lower Bracket, Engine Guard
- #1-2 9010-000102 — Air Inlet Duct
- #07 901A-000101 — Joint, Air Outlet Duct
- #13 9010-000130 — Front Bracket Assy, Engine Guard
- #05 9010-160101 — Headlight Rubber Damper
- #08 9050-000103 — Air Outlet Duct, Engine
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #17 30601-117010 — Clamp A17
- #14 TFQ004 — Heat Insulation Scroll Paper 50X0.062M
- #15 9050-040043 — Plastic Side Cover, Cvt
