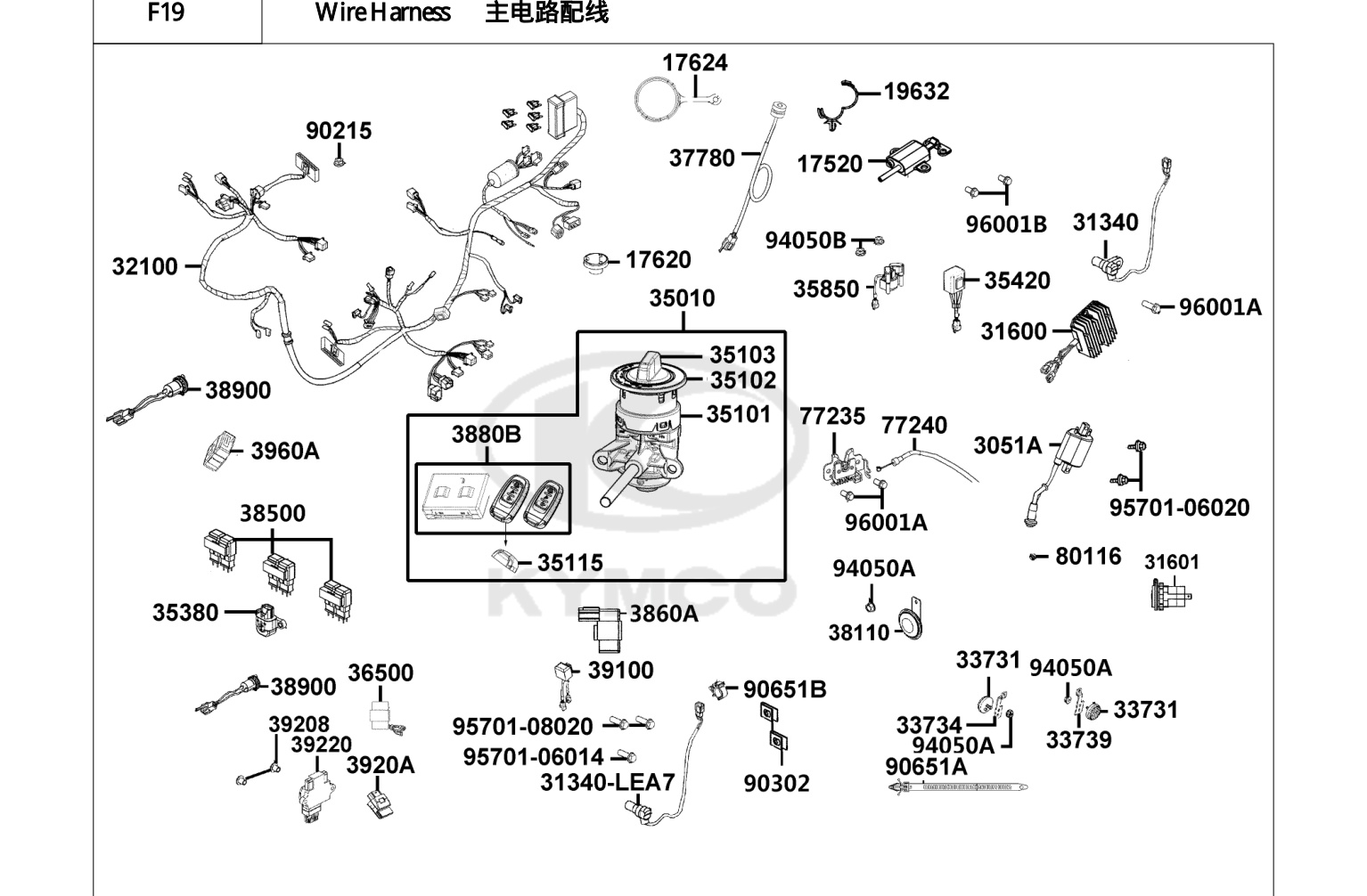

Location in exploded diagrams
Other parts on this diagram — 主电路配线
- #17520 17520-AGD8-C02 — BOTTOM TANK COMP.,FUEL
- #17620 17620-LFC3-E15 — CAP COMP FUEL FILLER
- #17624 17624-AGE7-C00 — BAND FUEL CAP
- #90651B 90651-ALJ8-C00 — CLIP,MUDGUARD
- #96001A 96001-06012-07G — BOLT FLANGE SH 6X12 (KG)
- #96001B 96001-06012-08G — BOLT FLANGE SH 6X12 (C)
- #35103 35103-AGE7-C02 — KNOB
- #19632 19632-AGD8-C00 — CLIP FUEL HOSE (MATERIL:PLASTIC)
- #3051A 3051A-AGE7-C00 — COIL ASSY IGN
- #31340 31340-LFH1-C00 — SPEED SENSOR ASSY
- #31600 31600-AGE7-C00 — REG RECT COMP
- #31601 31601-AEF6-C00 — SOCKET COMP. DC 12V
- #32100 32100-AGD8-C02 — HARNESS WIRE
- #33731 33731-GFY6-EZ0 — REFLEX REFLECTOR SIDE
- #33734 33734-ABD2-C00 — STAY RH.REFELX REFLECTOR
- #33739 33739-ABD2-C00 — STAY LH. REFELX REFLECTOR
- #35010 35010-AGE7-C02 — KEY SET
- #35101 35101-AGE7-C02 — LOCK COMP
- #35102 35102-AGE7-C02 — DECORATIVE COVER
- #35115 35115-AEF6-C03 — METAL HANDLE
- #35380 35380-ABE1-C00 — SENSOR ANGLE
- #35850 35850-LCA3-B50 — SET START MAG
- #36500 36500-AGE7-C00 — CONTROLLER ASSY WINKER
- #37780 37780-ACD5-C00 — SENSOR ASSY. ROOM TEMP
