Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 47.52 | listing | motogbshop.co.uk |
Location in exploded diagrams

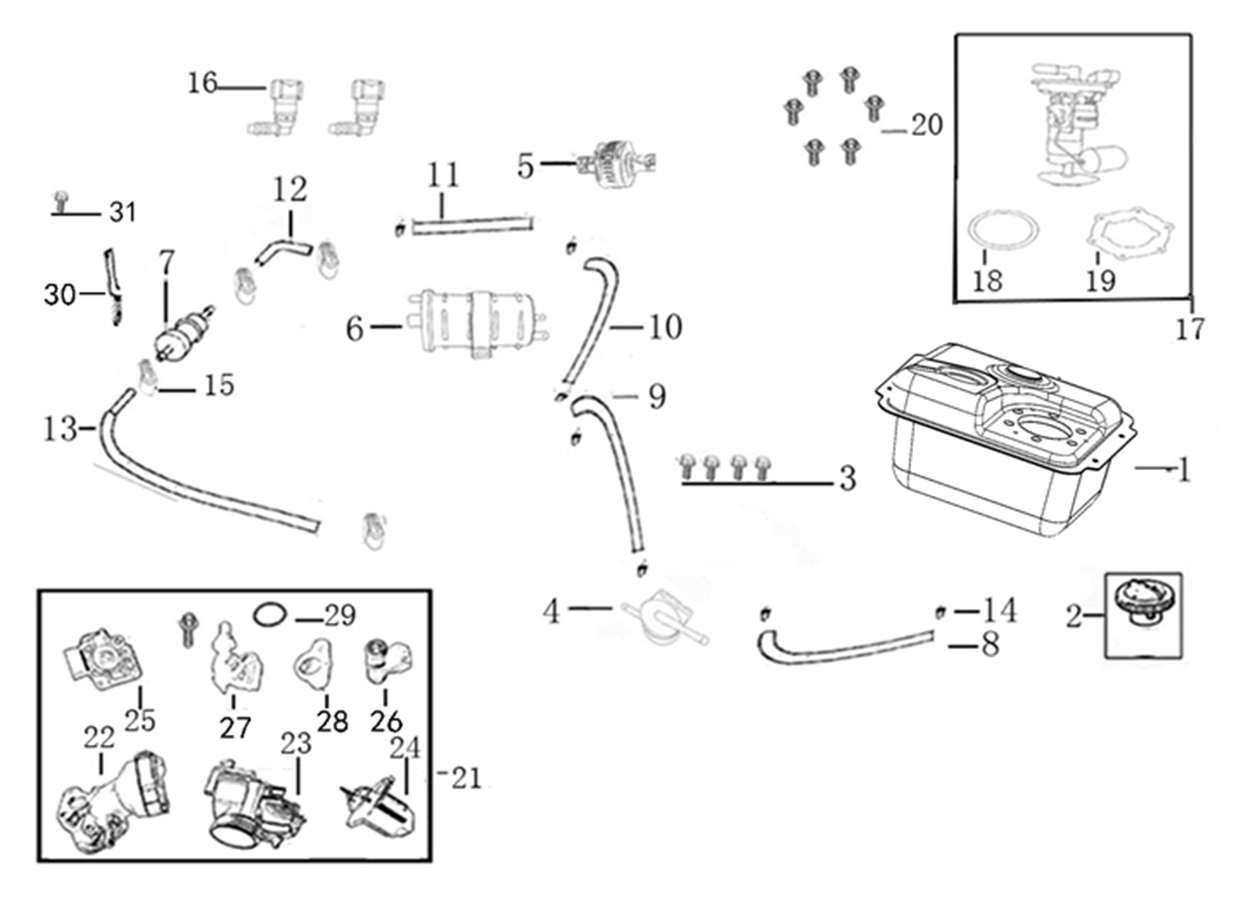

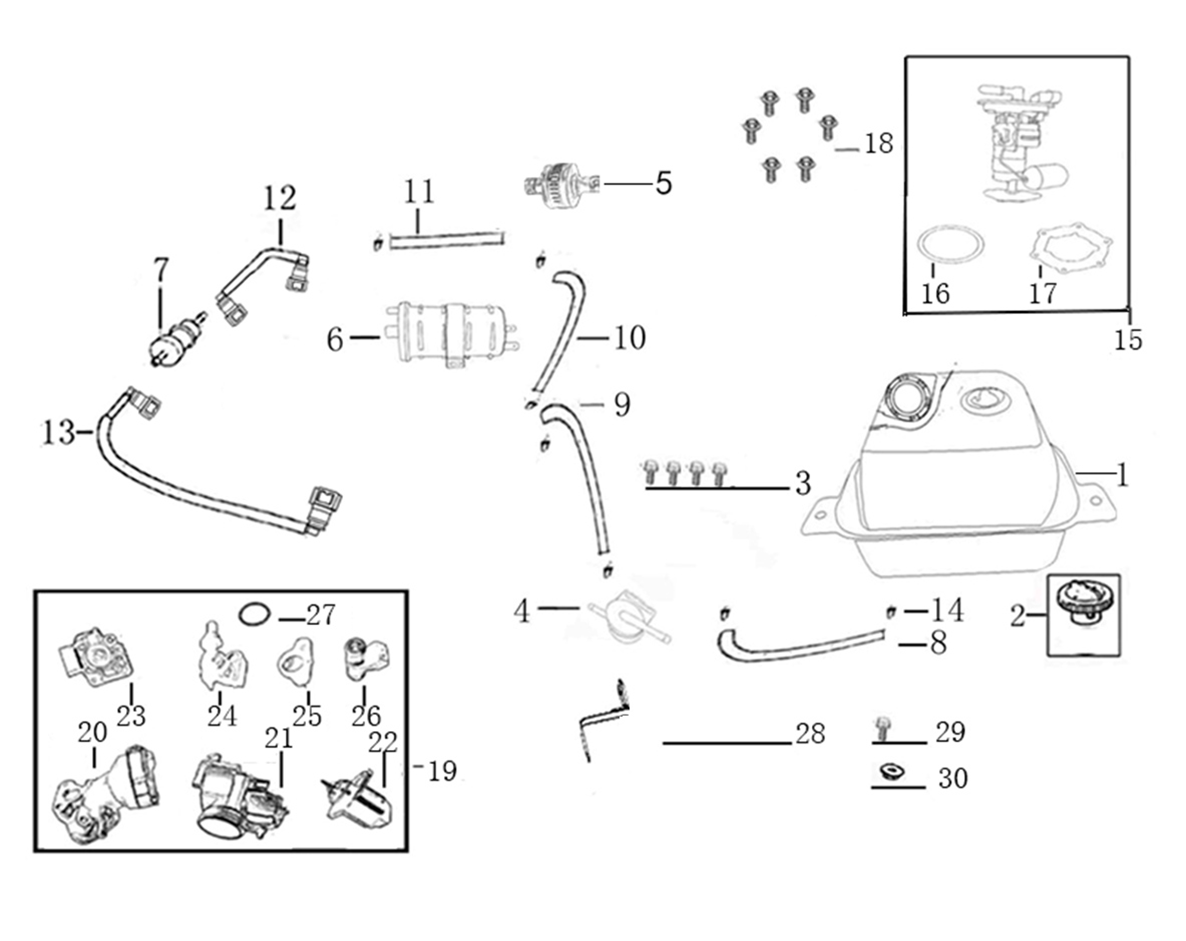

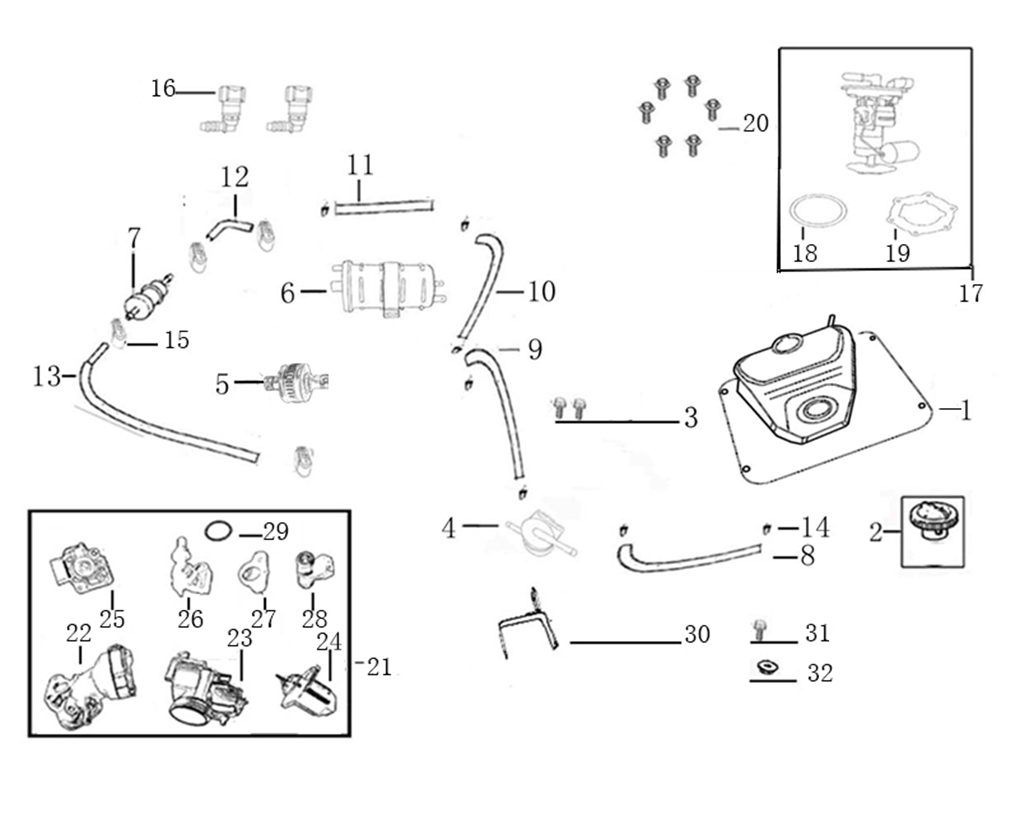

Other parts on this diagram — F10 = FUEL UNIT ASSY
- 39373-BAA5-9000 — MGB A9 125 Oil pump installation clamp
- 39372-BAA5-9000 — MGB A9 125 The rubber gasket
- 17620-LY-8000 — MGB A9 125 The cap
- 95201-06000-03 — MGB A9 125 NUT FLANGE 6MM
- 92101-06016-03 — MGB A9 125 BOLT FLANGE 6*16 （G）
- 50198-ALA6-9000 — MGB A9 125 Filter mounting bracket
- 39361-AH01-9000 — MGB A9 125 INLET PIPE O-RING
- 39306-AFAM-9000 — MGB A9 125 NOZZLE JOINT WASHER
- 39305-AFAM-9000 — MGB A9 125 NOZZLE PRESSURE CAP
- 39367-AFAM-9000 — MGB A9 125 Fuel Injector
- 39303-AFAM-9000 — MGB A9 125 TPS
- 39300-AFAM-9000 — MGB A9 125 THROTTLE BODY
- 39360-AFAM-9000 — MGB A9 125 BODY INLET PIPE
- 39365-AFAM-9000 — MGB A9 125 THE VALVE BODY ASSEMBLY
- 93201-05012-03 — MGB A9 125 SCREW PAN. M5*12
- 39373-AFAE-9000 — MGB A9 125 Oil pump installation clamp
- 39372-AFAE-9000 — MGB A9 125 The rubber gasket
- 39370-AFAM-9000 — MGB A9 125 Vertical fuel pump assembly
- 19412-F8-9000 — MGB A9 125 CLIP HOSE Φ7.5
- 1768A-ABA9-E100-B — MGB A9 125 TUBE FUEL ASSY
- 1768A-ABA9-E000-B — MGB A9 125 TUBE ASSY FUEL
- 18831-BLA2-A000 — MGB A9 125 520mm Solenoid valve to the inlet pipe to take over
- 18830-ABA9-A000 — MGB A9 125 270mm Canister to solenoid valve to take over
- 18826-KY-9000 — MGB A9 125 140 mm Dump valve to the canister to take over
