Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

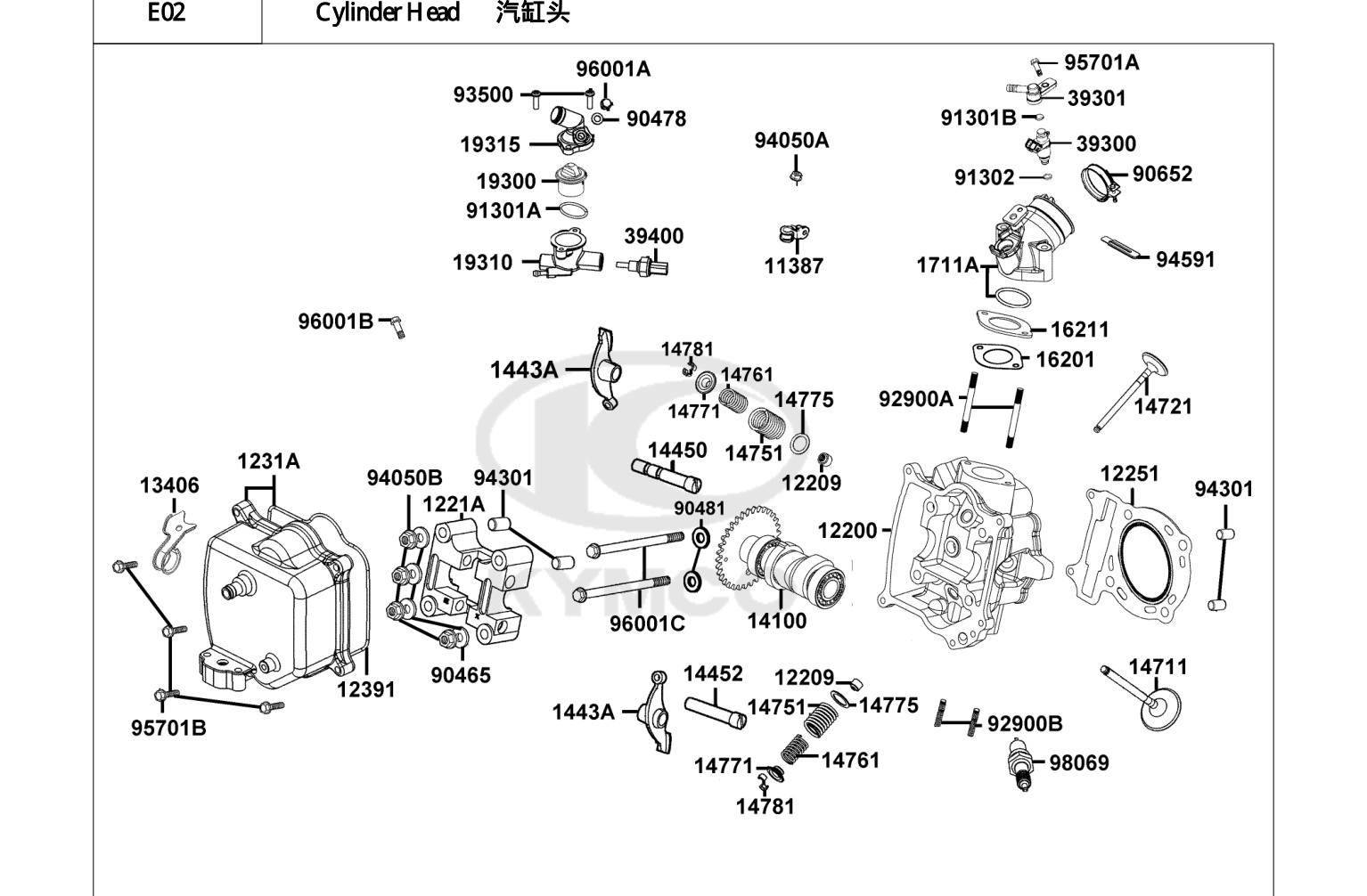

Location in exploded diagrams
Other parts on this diagram — 汽缸头
- #11387 11387-ABD2-C00 — "CLAMPER. BREATHER TUBE"
- #12200 12200-ABD2-E00 — HEAD COMP CYLINDER
- #14450 14450-KEBE-900 — SHAFT COMP IN ROCKER ARM
- #14452 14452-LDB2-E00 — SHAFT EXH ROCKER ARM
- #14711 14711-LFG2-C00 — VALVE INLET
- #14721 14721-LFG2-C00 — VALVE EXHAUST
- #14751 14751-ABD2-C00 — SPG VALVE OUTER
- #14761 14761-ABD2-C00 — SPG VALVE INNER
- #14771 14771-GDB4-C00 — RETAINER VALVE SPRING
- #14781 14781-MFA6-C0C — COTTER VALVE
- #16201 16201-LHG7-C00 — "GASKET.INSULATOR"
- #16211 16211-LDF2-C00 — INSULATOR CARB
- #1711A 1711A-LDF2-C00 — PIPE ASSY INLET
- #19300 19300-KAE1-004 — THERMOSTAT ASSY
- #39300 39300-LHG7-E00 — INJECTOR FUEL
- #39400 39400-LDF2-800 — WATER TEMP SENSOR
- #90478 90478-7L00-001 — WASHER A 6MM
- #91301A 91301-KHE7-900 — O-RING 17.8*1.9
- #91301B 91301-LDF2-C00 — O-RING 7.3*2.2
- #91302 91302-LDF2-M90 — SEAL RING 6.5X2.5 (BLACK)
- #92900A 92900-06050-08G — SANG TOU LUO MU
- #92900B 92900-08046-0BG — BOLT,STUD 8*46
- #94301 94301-10160 — DOWEL PIN 10*16
- #94591 94591-KFBF-C00 — CLIP 2*71
