Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

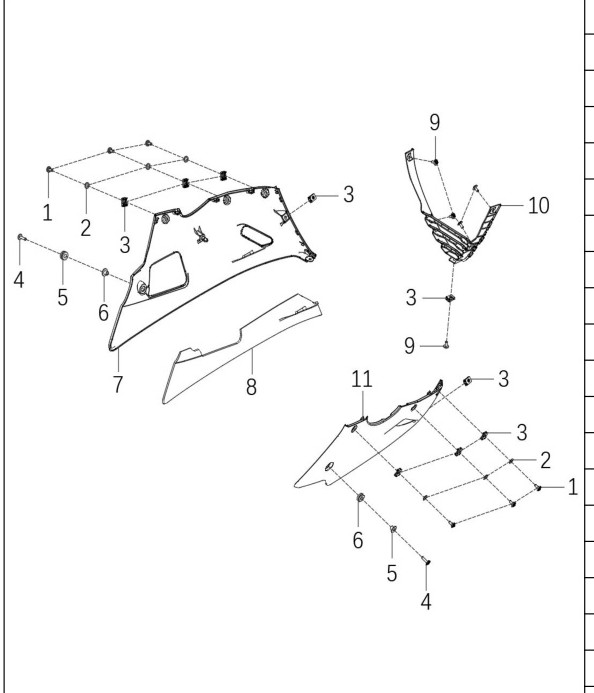

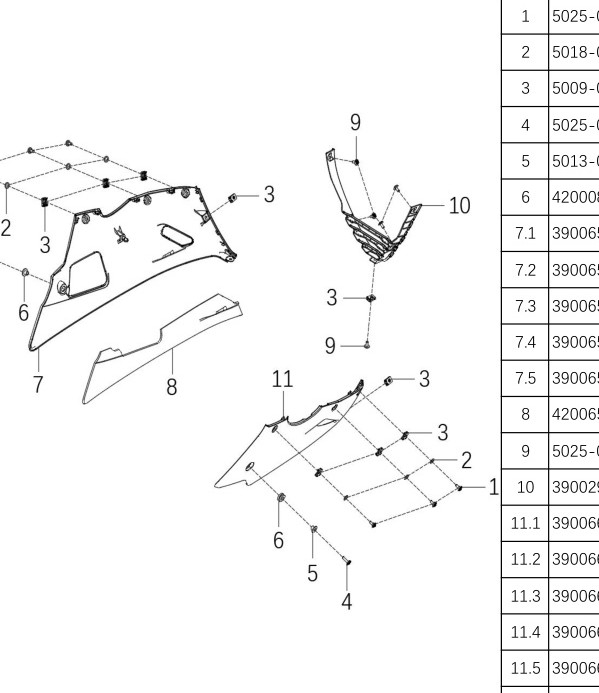

Location in exploded diagrams
Other parts on this diagram
- #1 5025-05013-BS00 — 内六角花形盘头台阶M5*1*13;台阶∮8*3.5,性能等级:GB/T3098
- #2 5018-08510-BS00 — 平垫
- #3 5009-05070-DK00 — 螺纹夹板
- #4 5025-05020-BS00 — 内六角花形盘头螺钉M5*1*20,性能等级:GB/T3098.6-2014中A2
- #5 5013-06008-SC01 — 翻边衬套
- #6 420008-R100-000 — 工字胶圈
- #7.1 390065-T300-B0700 — 发动机下护板-左
- #7.2 390065-T300-B1400 — 发动机下护板-左
- #7.3 390065-T300-H1700 — 发动机下护板-左
- #8 420065-T300-00001 — 防烫贴
- #9 5025-05012-BS00 — 内六角花形盘头螺钉M5*1*12,性能等级:GB/T3098.6-2014中A2
- #10 390029-T300-00000 — 发动机下护板
- #11.1 390066-T300-B0700 — 发动机下护板-右
- #11.2 390066-T300-B1400 — 发动机下护板-右
- #11.3 390066-T300-H1700 — 发动机下护板-右
- #11.4 390066-T300-R0800 — 发动机下护板-右
