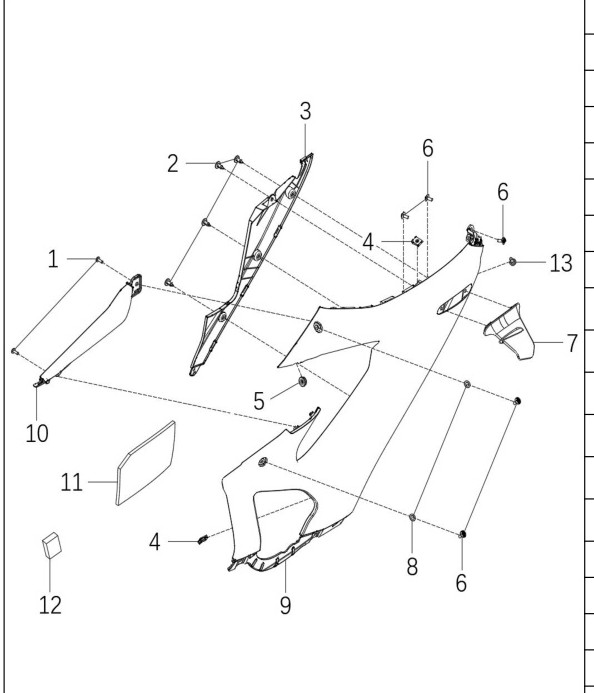

Location in exploded diagrams
Other parts on this diagram
- #1 5006-04013-HX00 — 自攻钉
- #2 421000-R100-000 — 膨胀胶钉
- #3 390089-T300-00000 — 挡风罩内衬-右
- #4 5009-05070-DK00 — 螺纹夹板
- #5 420008-S100-00002 — 工字胶圈
- #6 5025-05013-BS00 — 内六角花形盘头台阶M5*1*13;台阶∮8*3.5,性能等级:GB/T3098
- #7 490006-T300-B0100 — 定风翼-右
- #8 5018-08510-BS00 — 平垫
- #9.1 390049-T300-B0700 — 挡风罩-右
- #9.2 390049-T300-B0701 — 挡风罩-右
- #9.3 390049-T300-B1400 — 挡风罩-右
- #9.5 390049-T300-R0801 — 挡风罩-右
- #10.1 390039-T300-B0700 — 油箱下护板装饰件-右450RR、B07珠光黑
- #10.2 390039-T300-B1400 — 油箱下护板装饰件-右450RR、B14哑黑
- #10.3 390039-T300-R0800 — 油箱下护板装饰件-右450RR、R08闪光红
- #11 920031-T300-00000 — 防震棉
- #12 420026-P300-00000 — EVA胶贴
- #13 5025-05016-BS00 — 内六角花形盘头台阶M5*0.8*16;台阶∮8.5*5.5
