Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

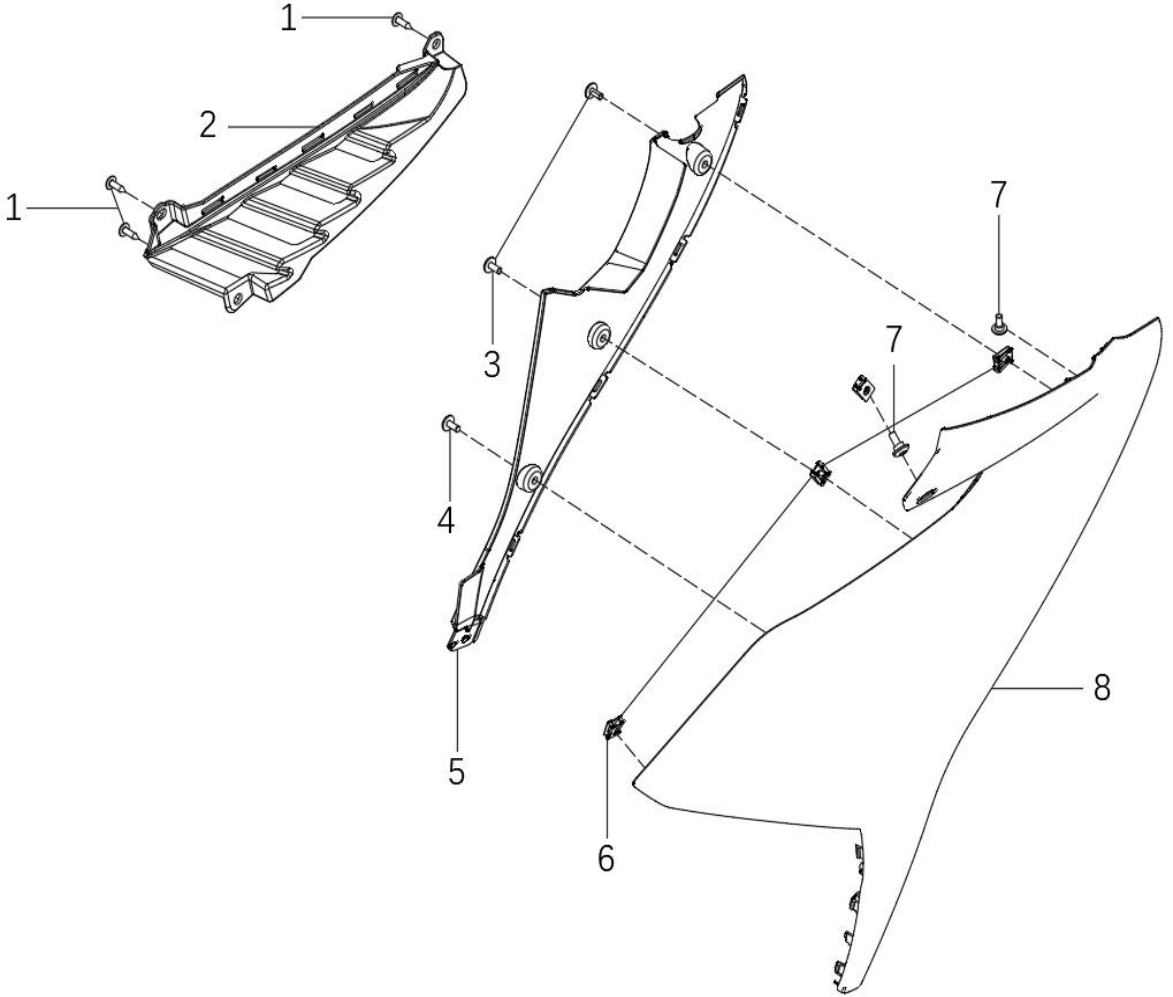

Other parts on this diagram — 未分组
- #1 5025-05013-BS00 — 内六角花形盘头台阶螺
- #3.1 390048-P300-R0700 — 挡风罩-左
- #3.2 390048-P300-B0700 — 挡风罩-左
- #3.3 390048-P300-B0300 — 挡风罩-左
- #3.4 390048-P300-B0301 — 挡风罩-左
- #3.5 390048-P300-B0302 — 挡风罩-左
- #4 390088-P303-00000 — 挡风罩内衬-左
- #6 421000-R100-000 — 膨胀胶钉
- #8 390090-P300-00000 — 挡风罩格栅-左
- #2 390091-P300-00000 — 挡风罩格栅-右
- #3 5025-05012-BS00 — 内六角花形盘头螺钉
- #5 390089-P303-00000 — 挡风罩内衬-右
- #6 5009-05070-DK00 — 螺纹夹板
- #8.2 390049-P300-B0700 — 挡风罩-右
- #8.3 390049-P300-B0300 — 挡风罩-右
- #8.4 390049-P300-B0301 — 挡风罩-右
- #8.5 390049-P300-B0302 — 挡风罩-右
- #3.1 390030-P300-B0700 — 油箱下护板-左
- #3.2 390030-P300-B0701 — 油箱下护板-左
- #3.3 390030-P300-B0900 — 油箱下护板-左
- #4.1 390031-P300-B0700 — 油箱下护板-右
- #4.2 390031-P300-B0701 — 油箱下护板-右
- #4.3 390031-P300-B0900 — 油箱下护板-右
