Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

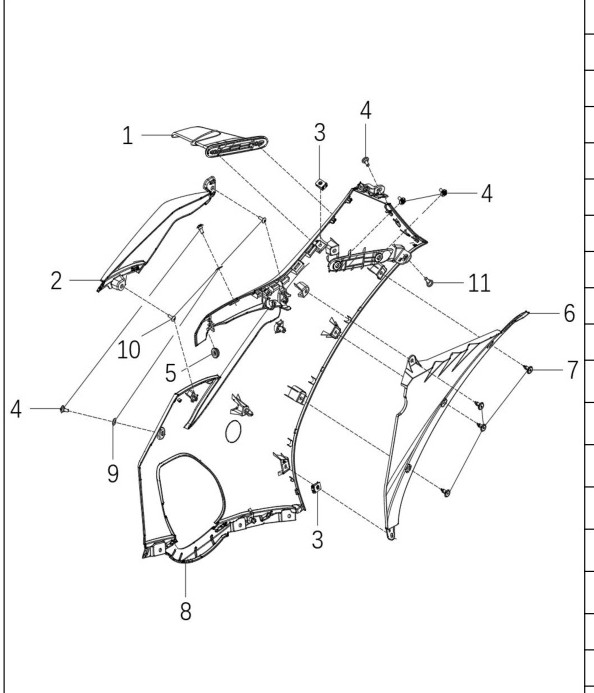

Location in exploded diagrams
Other parts on this diagram
- #1 490005-T300-B0100 — 定风翼-左(450RR、B01磨砂450RR、B01磨砂黑
- #2.1 390038-T300-B0700 — 油箱下护板装饰件-左(450
- #2.2 390038-T300-B1400 — 油箱下护板装饰件-左(450
- #2.4 390038-T300-W0100 — 油箱下护板装饰件-左(450
- #3 5009-05070-DK00 — 螺纹夹板(M5*1.0*7*14)
- #5 5018-06520-BS00 — 平垫(450Rally、∮6.5*∮24450Rally、∮6.5*∮24*2,塑料件本色
- #7 390088-T300-00000 — 挡风罩内衬-左(450RR)
- #8 421000-R100-000 — 膨胀胶钉(500GY、长17.5,直500GY、长17.5,直径∮6.2
- #9.2 390048-T300-B0701 — 挡风罩-左(450RR、B07珠光
- #9.5 390048-T300-R0801 — 挡风罩-左(450RR、R08闪光
- #10 5018-08510-BS00 — 平垫(∮8.5*∮15*1)
- #11 5006-04013-HX00 — 自攻钉(ST4.2*13)
- #12 420008-S100-00002 — 工字胶圈(800ADV)
