Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

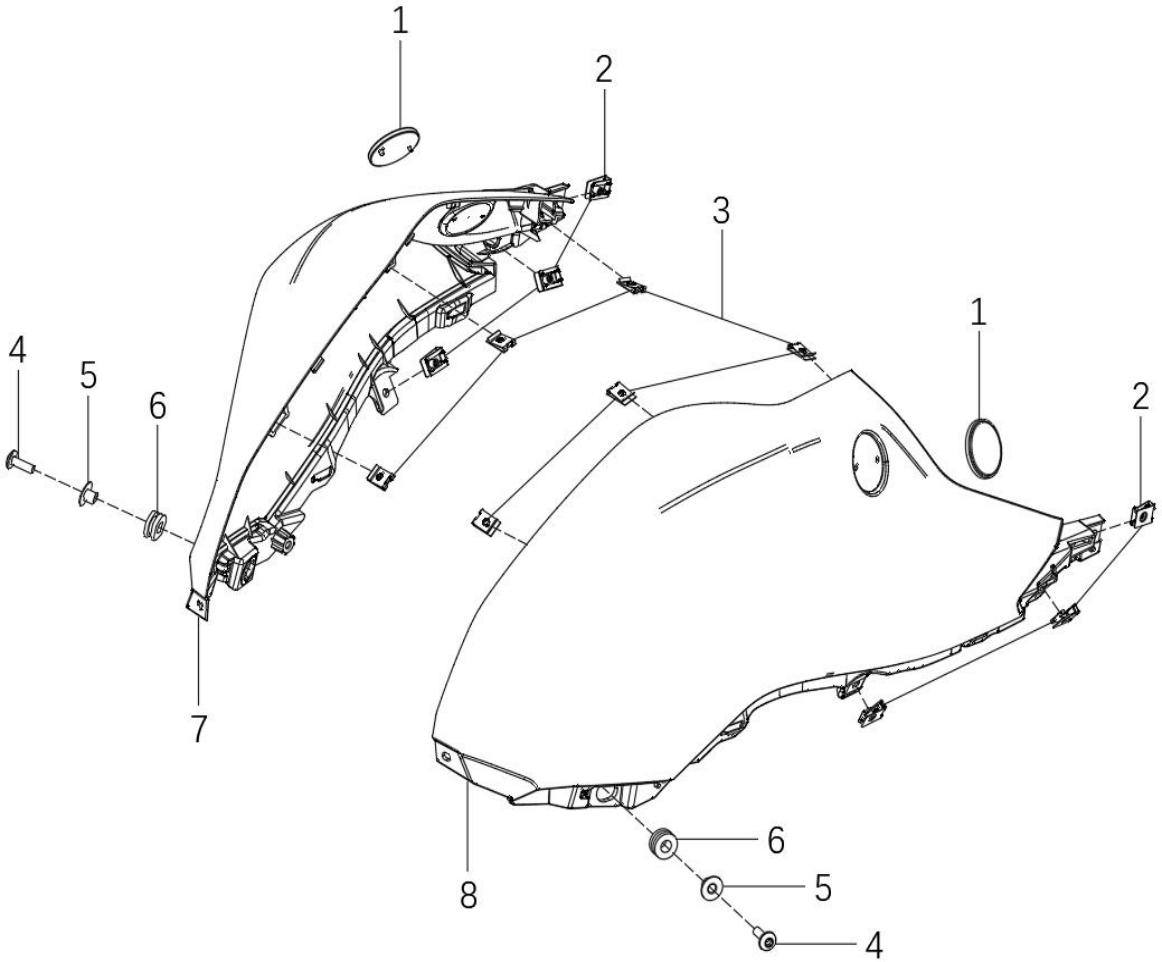

Location in exploded diagrams
Other parts on this diagram — 未分组
- #4 5025-06020-BS01 — 内六角花形盘头螺钉
- #5 5013-06008-SC01 — 翻边衬套
- #7.1 390024-P300-R0700 — 油箱侧护板-左
- #7.2 390024-P300-B0700 — 油箱侧护板-左
- #7.3 390024-P300-B0300 — 油箱侧护板-左
- #7.4 390024-P300-D0500 — 油箱侧护板-左
- #7.5 390024-P300-W0500 — 油箱侧护板-左
- #8.2 390025-P300-B0700 — 油箱侧护板-右
- #8.3 390025-P300-B0300 — 油箱侧护板-右
- #8.4 390025-P300-D0500 — 油箱侧护板-右
- #8.5 390025-P300-W0500 — 油箱侧护板-右
- #1.1 900100-P300-00000 — 油箱下护板标牌
- #1.2 900100-P302-00000 — 油箱下护板标牌
- #2 5009-04040-DK00 — 自攻钉夹板
