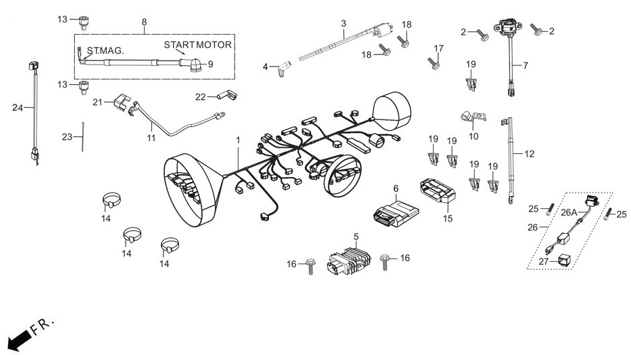

Location in exploded diagrams
Other parts on this diagram — F24 - Wire Harness
- 31307ABZ601S — Hero XPulse 200 CUSHION USB UNIT
- 31304ABWL00099S — Hero XPulse 200 USB CHARGER
- 31300ABWL0099S — Hero XPulse 200 USB CHARGER ASSY
- 93500040160GS — Hero XPulse 200 SCREW PAN 4X16
- 31810ABZ001S — Hero XPulse 200 UNIT ASSY CAPACITOR
- 90657AAW300S — Hero XPulse 200 CABLE TIE (LONG)
- 32417KTRA10S — Hero XPulse 200 COVER, BAT. TERMINAL
- 32406ABW000S — Hero XPulse 200 COVER ST.MAG.TERMINAL
- 32108KE8000S — Hero XPulse 200 COVER ,CONNECTOR
- 98210HMC000S — Hero XPulse 200 MINI FUSE 10A
- 960010602000S — Hero XPulse 200 BOLT, FLANGE, SH. 6 X 20
- 960010601600S — Hero XPulse 200 BOLT, FLANGE SH. 6 X 16
- 957010601800S — Hero XPulse 200 BOLT FLANGE 6X18
- 38771ABSB00S — Hero XPulse 200 CUSHION PGM FI IGN UNIT
- 91540AAN410S — Hero XPulse 200 CLIP, BAND HARN
- 90111MR5000S — Hero XPulse 200 BOLT, SOCKET, 5X9
- 32602ABZ000S — Hero XPulse 200 CABLE ENG EARTH
- 32601AABA00S — Hero XPulse 200 CABLE BAT EARTH
- 32413KRY970S — Hero XPulse 200 TERMINAL, BAT CABLE
- 32411253000S — Hero XPulse 200 COVER, STARTING MOTOR
- 32410ABW000S — Hero XPulse 200 CABLE START MOTOR
- 35160AAE31099S — Hero XPulse 200 SENSOR ASSY BANK ANGLE
- 31600ACA001S — Hero XPulse 200 REG RECT COMPLETE
- 30700ABW801S — Hero XPulse 200 CAP ASSY. NOISE (SUPPRESSOR)
