Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

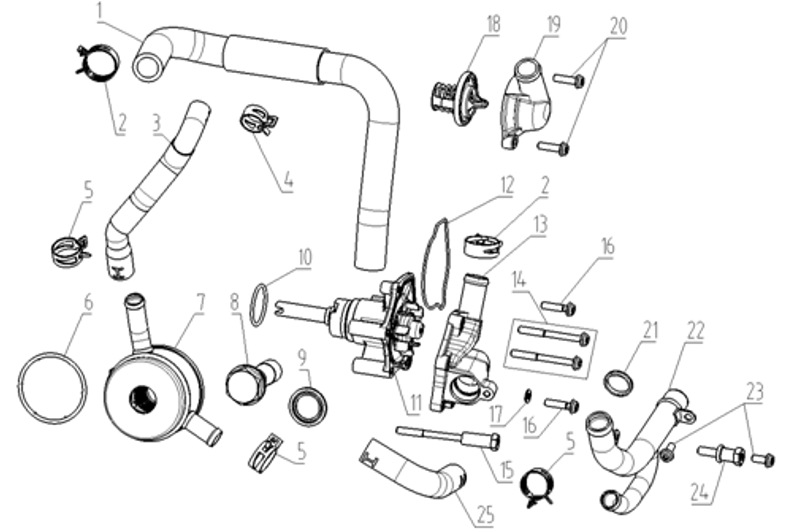

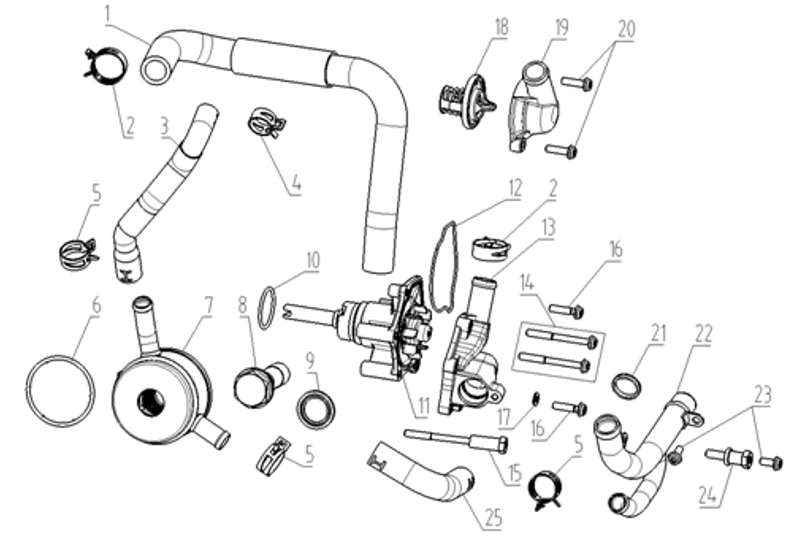

Other parts on this diagram — E15 - Cooling System
- 380760636-0001 — Voge DS625X E5+ TUBE,WATER
- 141360003-0001 — Voge DS625X E5+ BOLT,LOCATING POST
- 382330033-0002 — Voge DS625X E5+ FLANGE BOLT
- 380780374-0001 — Voge DS625X E5+ JOINT,CONNECTING
- 380841545-0001 — Voge DS625X E5+ RING,SEAL
- 382330046-0002 — Voge DS625X E5+ FLANGE BOLT
- 160130067-0002 — Voge DS625X E5+ COVER,THERMOSTAT
- 160140024-0001 — Voge DS625X E5+ VALVE,THERMOSTATIC
- 380450391-0001 — Voge DS625X E5+ WASHER,PLAIN
- 141360008-0001 — Voge DS625X E5+ BOLT,LOCATING POST
- 382330050-0001 — Voge DS625X E5+ ISA SCREW
- 160470107-0002 — Voge DS625X E5+ CAP,COOLING PUMP
- 380840990-0001 — Voge DS625X E5+ RING,SEAL
- 160400021-0001 — Voge DS625X E5+ PUMP,COOLING
- 380841043-0001 — Voge DS625X E5+ RING,SEAL
- 380451487-0001 — Voge DS625X E5+ WASHER,PLAIN
- 380140847-0002 — Voge DS625X E5+ BOLT,HEXAGON FLANGE
- 161390008-0001 — Voge DS625X E5+ HEAT EXCHANGER OF WATER AND OIL
- 380841471-0001 — Voge DS625X E5+ RING,SEAL
- 380950523-0001 — Voge DS625X E5+ CLAMP,TUBE
- 380950541-0001 — Voge DS625X E5+ CLAMP,TUBE
- 380760635-0001 — Voge DS625X E5+ TUBE,WATER
- 380950414-0002 — Voge DS625X E5+ CLAMP,TUBE
- 380760631-0001 — Voge DS625X E5+ TUBE,WATER
