Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

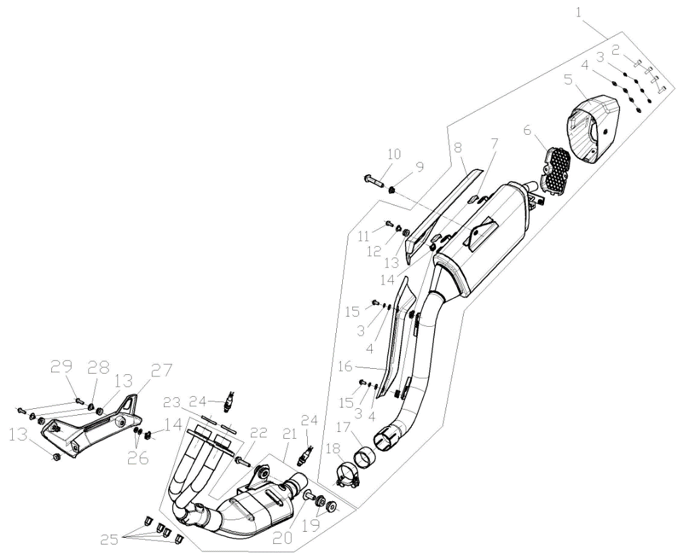

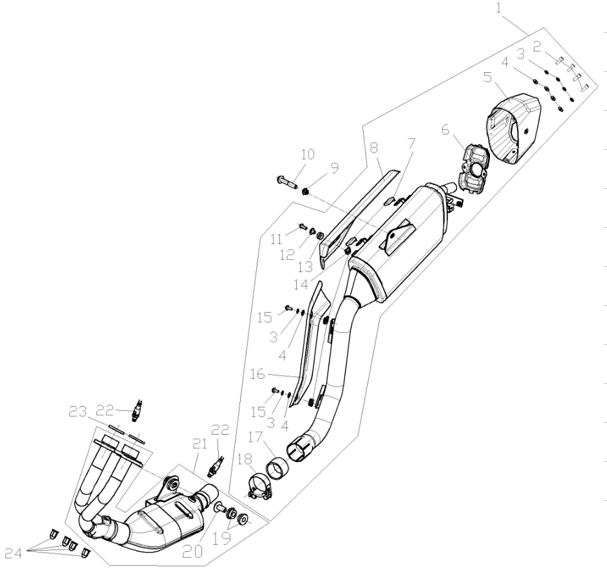

Other parts on this diagram — F06 - Exhaust
- 381420063-0003 — Voge DS525X E5+ BOLT,LOBULAR SOCKET COUNTERSUNK HEAD
- 380820512-0004 — Voge DS525X E5+ COLLAR
- 180960271-0003 — Voge DS525X E5+ SHIELD,MUFFLER
- 181600039-0001 — Voge DS525X E5+ INSULATION BLANKET
- 380330031-0003 — Voge DS525X E5+ CAP-SHAPED NUT
- 172750066-0001 — Voge DS525X E5+ OXYGEN SENSOR E5+
- 180650133-0001 — Voge DS525X E5+ GASKET,AIR EXHAUST PORT
- 382330042-0003 — Voge DS525X E5+ FLANGE BOLT
- 181160132-0001 — Voge DS525X E5+ FRONT PART,MUFFLER EXHAUST E5+
- 380470120-0001 — Voge DS525X E5+ WASHER,FLANGE
- 181890019-0001 — Voge DS525X E5+ TUBE,MUFFLER CONNECTING
- 181110009-0001 — Voge DS525X E5+ GRAPHITE ANNULUS
- 181900037-0001 — Voge DS525X E5+ SHIELD,EXHAUST PIPE
- 382330010-0003 — Voge DS525X E5+ FLANGE BOLT
- 380420062-0001 — Voge DS525X E5+ NUT,CLIP
- 380890173-0001 — Voge DS525X E5+ I-RUBBER
- 380470108-0004 — Voge DS525X E5+ WASHER,FLANGE
- 382330015-0003 — Voge DS525X E5+ FLANGE BOLT
- 382330073-0003 — Voge DS525X E5+ FLANGE BOLT
- 380400007-0008 — Voge DS525X E5+ NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE
- 180960313-0001 — Voge DS525X E5+ SHIELD,MUFFLER
- 181600076-0001 — Voge DS525X E5+ INSULATION BLANKET
- 180930012-0001 — Voge DS525X E5+ PLATE,DECORATIVE RIGHT
- 181650044-0001 — Voge DS525X E5+ END CAP,MUFFLER REAR
