Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

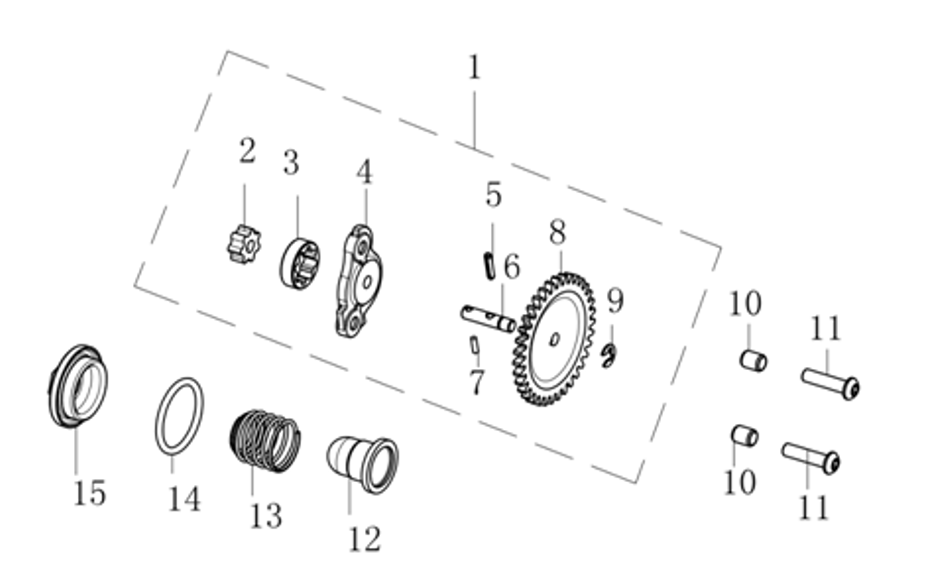

Other parts on this diagram — E12 LUBRICATION SYSTEM
- 120280003-0008 — Voge SR16 E5+ CAP,TAPPET ADJUSTING HOLE
- 380840132-0001 — Voge SR16 E5+ RING,SEAL
- 381150252-0001 — Voge SR16 E5+ SPRING,COMPRESSION
- 150290001-0001 — Voge SR16 E5+ SCREEN,OIL STRAINER
- 380190113-0003 — Voge SR16 E5+ SCREW,HEXAGON SOCKET
- 380600057-0001 — Voge SR16 E5+ PIN,DOWEL
- 380570040-0001 — Voge SR16 E5+ SPLIT WASHER
- 150070064-0001 — Voge SR16 E5+ SPROCKET,OIL PUMP DRIVEN
- 150080063-0001 — Voge SR16 E5+ SHAFT,OIL PUMP TRANSMISSION
- 150120004-0001 — Voge SR16 E5+ DRIVE PIN,OIL PUMP
- 150040058-0001 — Voge SR16 E5+ CAP,OIL PUMP
- 150060054-0001 — Voge SR16 E5+ ROTOR,OUTER
- 150050060-0001 — Voge SR16 E5+ ROTOR,INNER
- 150010124-0001 — Voge SR16 E5+ PUMP ASSY.,OIL
