Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

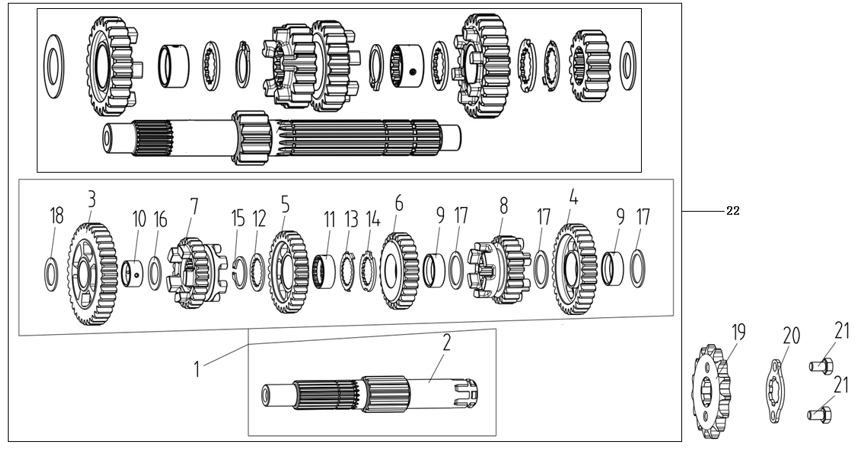

Other parts on this diagram — E16 - Countershaft
- 500290539-0001 — Voge R125 E5+ MAINSHAFT&COUNTERSHAFT KIT
- 380070141-0001 — Voge R125 E5+ BOLT,HEXAGON
- 191610012-0001 — Voge R125 E5+ PLATE,COUNTERSHAFT DRIVING SPROCKET FIXING
- 191600066-0001 — Voge R125 E5+ SPROCKET,COUNTERSHAFT DRIVING
- 380540198-0001 — Voge R125 E5+ CHECK RING,SHOULDER
- 380540079-0001 — Voge R125 E5+ CHECK RING,SHOULDER
- 380540093-0001 — Voge R125 E5+ CHECK RING,SHOULDER
- 380550010-0001 — Voge R125 E5+ CHECK RING,ELASTIC
- 380500076-0001 — Voge R125 E5+ WASHER,SPLINE
- 380470141-0001 — Voge R125 E5+ WASHER,FLANGE
- 380823855-0001 — Voge R125 E5+ COLLAR
- 380823854-0001 — Voge R125 E5+ COLLAR
- 380823853-0001 — Voge R125 E5+ COLLAR
- 191520011-0001 — Voge R125 E5+ GEAR,COUNTERSHAFT SIXTH
- 191500043-0001 — Voge R125 E5+ GEAR,COUNTERSHAFT FIFTH
- 191480061-0001 — Voge R125 E5+ GEAR,COUNTERSHAFT FOURTH
- 191460066-0001 — Voge R125 E5+ GEAR,COUNTERSHAFT THIRD
- 191440062-0001 — Voge R125 E5+ GEAR,COUNTERSHAFT SECOND
- 191420069-0001 — Voge R125 E5+ GEAR,COUNTERSHAFT FIRST
- 191400180-0001 — Voge R125 E5+ COUNTERSHAFT
- 191390355-0001 — Voge R125 E5+ COUNTERSHAFT COMP.
- JTF1264-15 — Voge R125 E5+ FRONT SPROCKET 15T 428
