Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

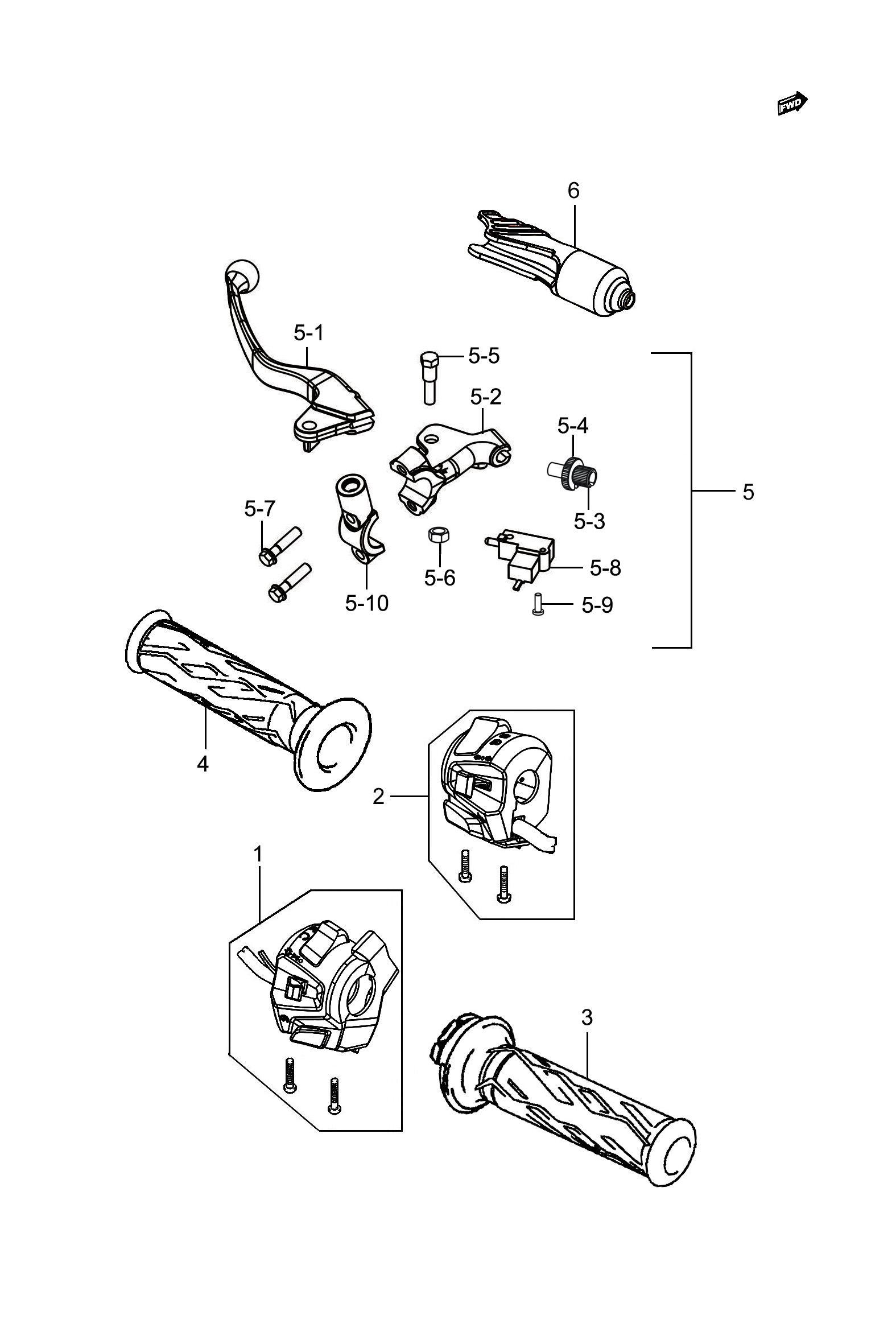

Other parts on this diagram — 手把开关组
- #2 37400H2H000H000 — 左手把开关总成
- #3 57110-48H01-000 — 油门手把组成
- #4 57211-48H01-000 — 左手把胶套
- #5 57500H2H030H000 — 离合器手柄和开关总成
- #5-1 57621H2H011H000 — 离合器手柄
- #5-2 57511H2H010H000 — 离合器座
- #5-3 57441H2J000H000 — 调节螺管
- #5-4 57442-45C00-000 — 调节螺母
- #5-5 57431-45C01-000 — 手柄螺栓
- #5-6 57518H2C100H000 — 非金属螺母
- #5-7 01547-0628B-000 — 六角法兰面螺栓
- #5-8 57560-48H00-000 — 离合器开关总成
- #5-9 02122-0320A-000 — 十字槽沉头小螺钉
- #5-10 59671H2H020H000 — 夹紧盖
- #6 57661H2C100H000 — 离合器手柄盖
