Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

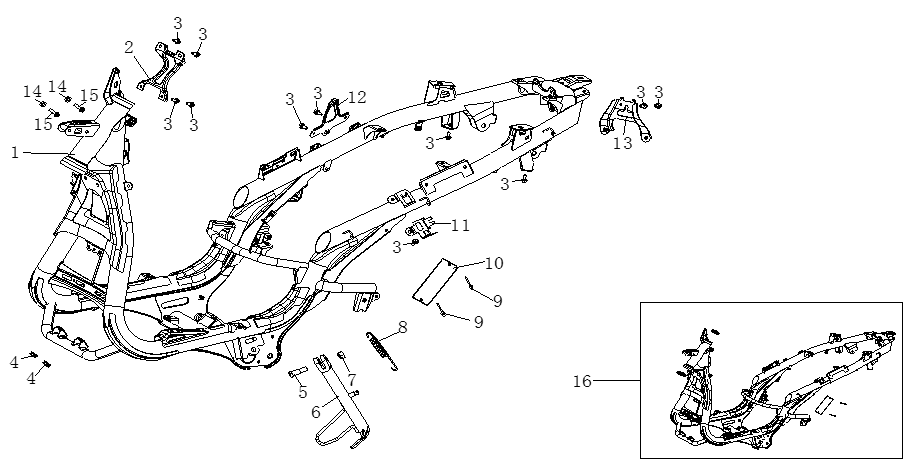

Other parts on this diagram — F01 FRAME ASSY
- 500690477-0001 — Voge SR16 E5+ BODY ASSY.,FRAME
- 380140184-0005 — Voge SR16 E5+ BOLT,HEXAGON FLANGE
- 380370003-0014 — Voge SR16 E5+ NUT,HEXAGON FLANGE
- 300430186-0001 — Voge SR16 E5+ BRACE,REAR FENDER REAR
- 174870012-0001 — Voge SR16 E5+ BRACKET OF ELECTRICAL CONTROLLER
- 270860131-0001 — Voge SR16 E5+ BRACKET,ELECTRICAL PARTS MOUNTING
- 380580024-0001 — Voge SR16 E5+ RIVET
- 381140801-0001 — Voge SR16 E5+ SPRING, DRAWING
- 380340010-0011 — Voge SR16 E5+ NUT,HEXAGON HEAD
- 311880419-0001 — Voge SR16 E5+ BAR ASSY.,SIDE STAND
- 380020218-0001 — Voge SR16 E5+ BOLT,HEXAGON HEAD SHOULDER
- 380890380-0001 — Voge SR16 E5+ I-RUBBER
- 380140067-0013 — Voge SR16 E5+ BOLT,HEXAGON FLANGE
- 300331191-0001 — Voge SR16 E5+ LUG,COVERING PANEL
