Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

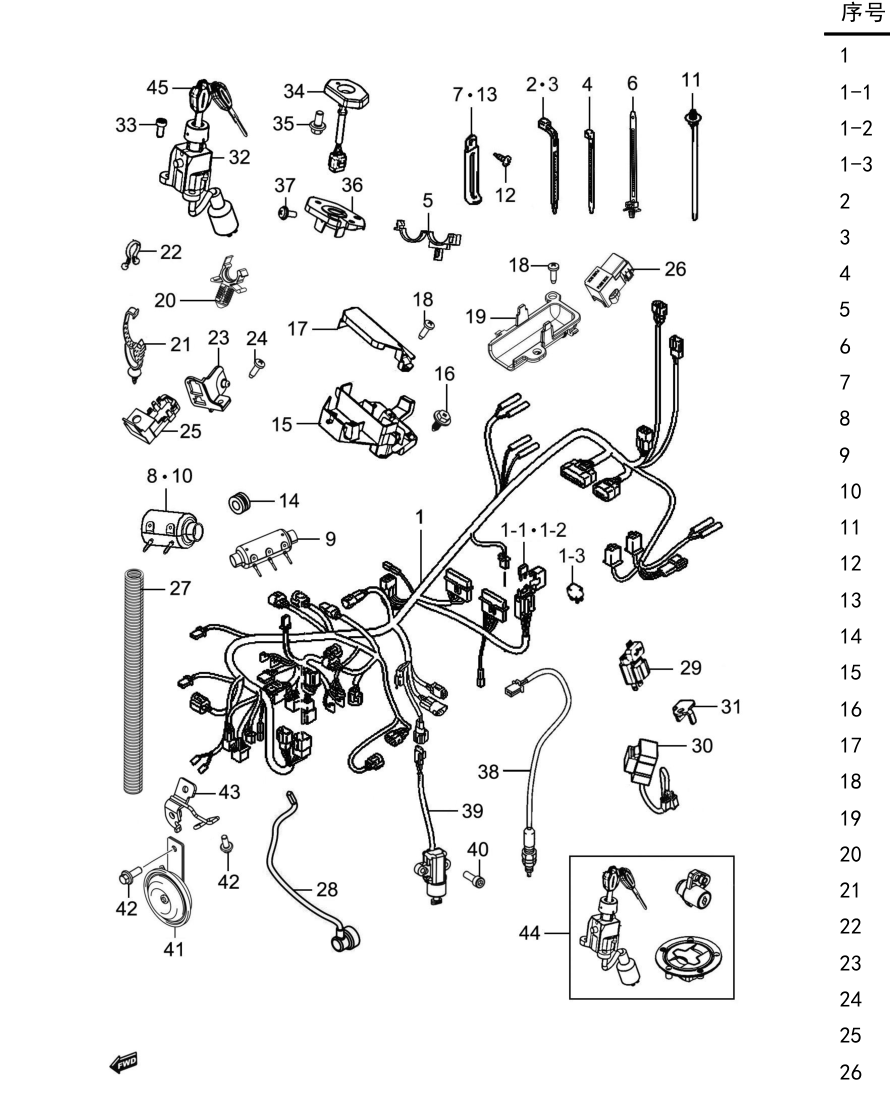

Location in exploded diagrams
Other parts on this diagram — 车体导线组
- #1 36610H2H002H000 — 车体导线束
- #1-1 09481-10504-000 — 熔断器
- #1-2 09481-15504-000 — 熔断器
- #14 36656H2H000H000 — 导线束固定盒
- #15 09111-06106-000 — 轴肩螺栓
- #16 36657H2H000H000 — 导线束固定盒盖
- #17 35151-21J00-000 — 前照灯螺钉
- #19 36619H2H000H000 — 导线夹
- #20 36651H2H000H000 — 导线束线夹
- #21 36619H2H010H000 — 导线夹
- #22 09408-00021-000 — 线夹
- #23 36851H2H000H000 — 油压开关导线
- #24 39410H2H001H000 — 电源端子
- #25 39420H2H000H000 — USB充电器总成
- #26 39411H2H000H000 — 电源端子支架
- #27 37100H2H000H000 — 主开关总成
- #28 37152-20K00-000 — 转向锁螺钉
- #29 37180-20K30-000 — 防盗天线总成
- #30 01547-0512B-000 — 六角法兰面螺栓
- #31 37155H2J000H000 — 点火开关罩
- #32 02112-1610A-000 — 十字槽盘头小螺钉
- #34 37840H2H001H000 — 边撑开关总成
- #35 09106H05005H000 — 内六角螺栓
- #36 38500H2H010H000 — 喇叭总成
