Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

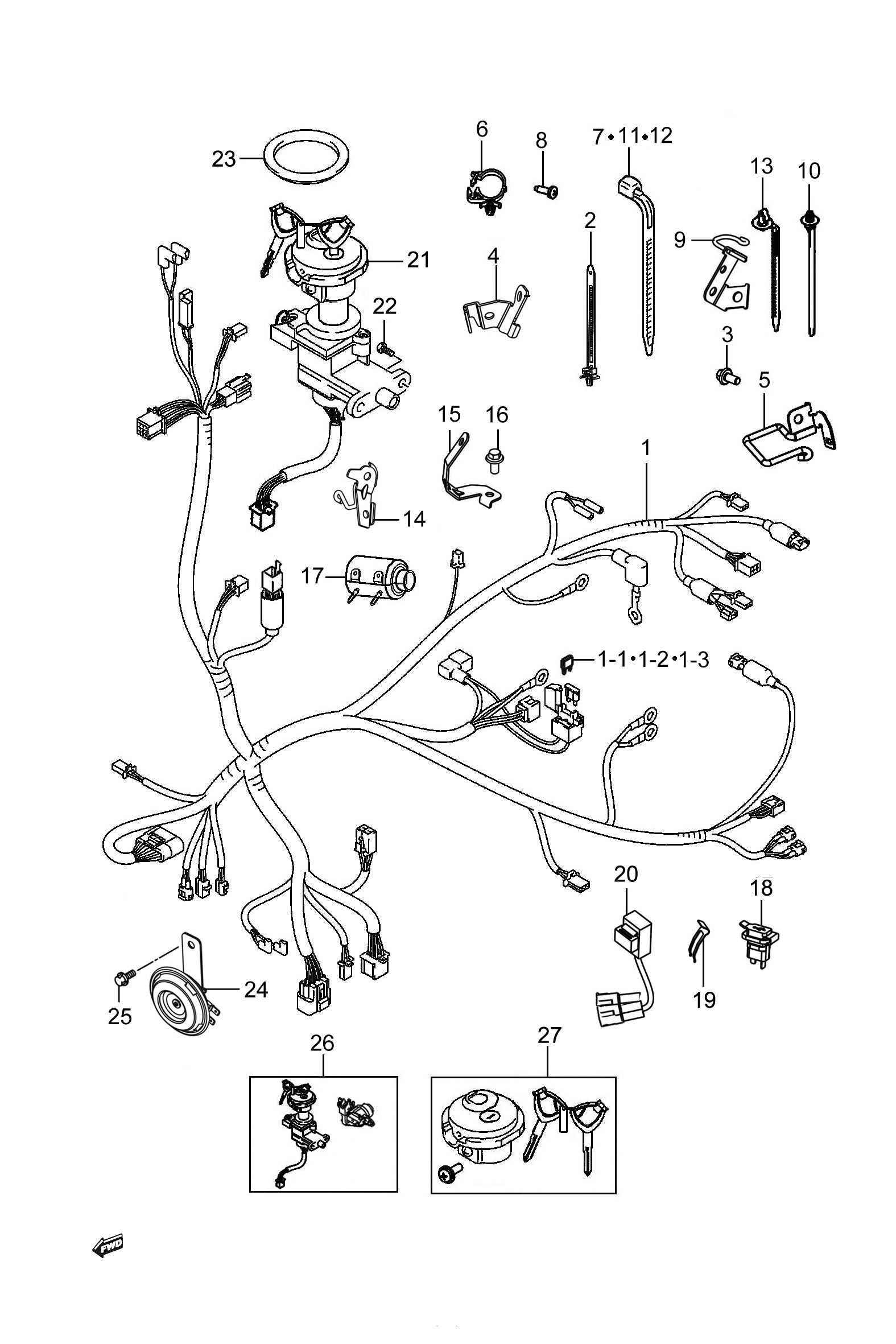

Other parts on this diagram — 车体导线组
- #7 09407-14403-000 — 捆扎带
- #11 09407H22404H000 — 绑扎带
- #12 09407-18402-000 — 捆扎带
- #13 36651-26H10-000 — 导线夹
- #17 36618H2D000H000 — 接插件护套
- #27 37140H7VY00H000 — 钥匙坯组合
- #1-1 36720H2C100H000 — 熔断器总成
- #1-2 36720H2C110H000 — 熔断器总成
- #1-3 36720H2C120H000 — 熔断器总成
- #2 36651-12F10-000 — 导线绑扎带
- #3 01550-0612A-000 — 六角法兰面螺栓
- #4 36619H7V010H000 — 导线夹支架
- #5 36651H7D000H000 — 氧传感器线夹
- #6 36619H22500H000 — 导线束导向环
- #8 02142-0612A-000 — 十字槽球头小螺钉
- #9 36651H7W000H000 — 导线束线夹
- #10 36990H2J000H000 — 座垫锁拉索扎带
- #19 35128H7U000H000 — 卡簧
- #20 39420H7U011H000 — USB充电器总成
- #21 37100H7V000H000 — 主开关总成
- #22 09139-06048-000 — 特殊形状的螺钉
- #23 37187-20E00-000 — 点火开关护套
- #24 38500H2C010H000 — 喇叭总成
- #26 37011H7V00CH000 — 开关组合
