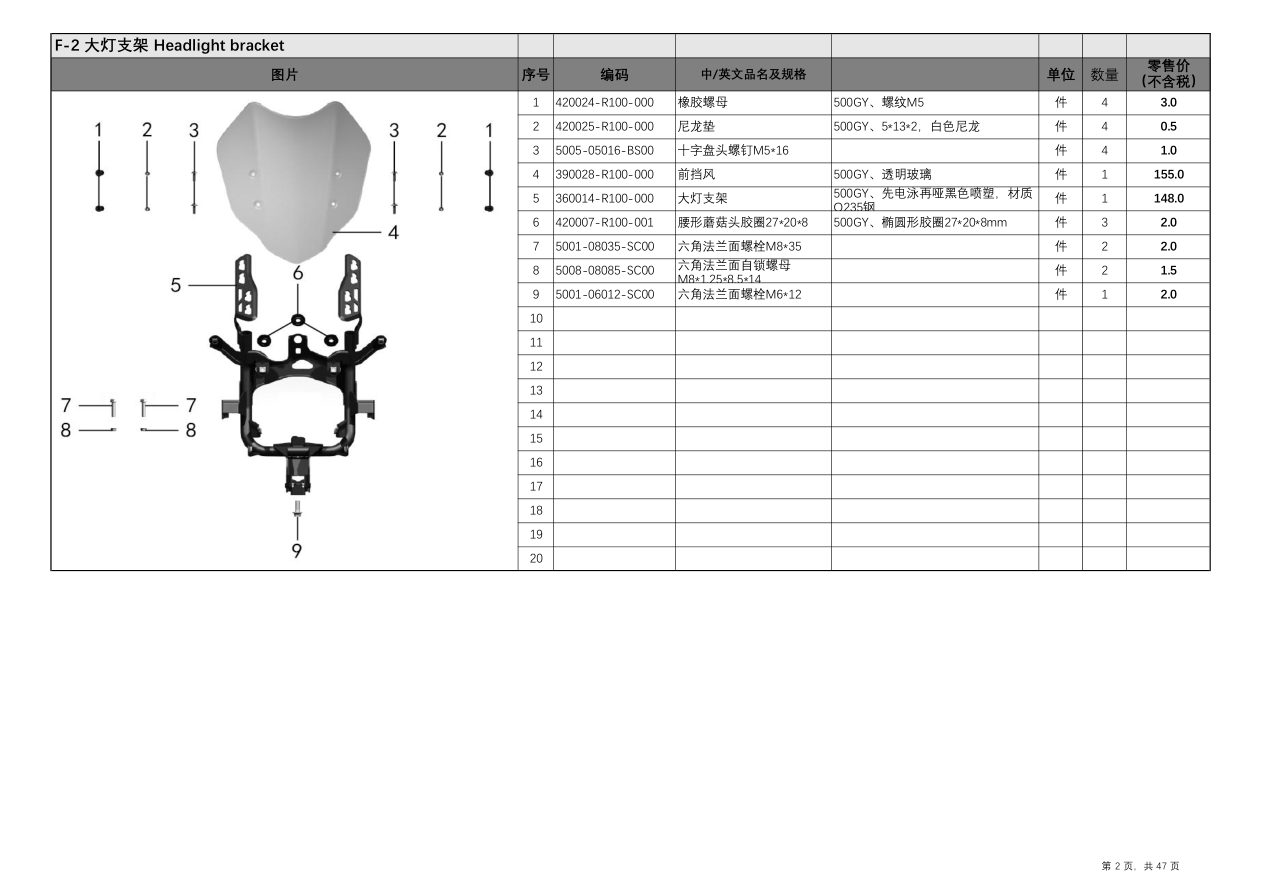

Location in exploded diagrams
Other parts on this diagram — 未分组
- #1 420024-R100-000 — 橡胶螺母 500GY、螺纹M5 件
- #2 420025-R100-000 — 尼龙垫 500GY、5*13*2，白色尼龙 件
- #3 5005-05016-BS00 — 十字盘头螺钉M5*16 件
- #4 390028-R100-000 — 前挡风 500GY、透明玻璃 件
- #6 420007-R100-001 — 腰形蘑菇头胶圈27*20*8 500GY、椭圆形胶圈27*20*8mm 件
- #7 5001-08035-SC00 — 六角法兰面螺栓M8*35 件
- #8 5008-08085-SC00 — 件
- #9 5001-06012-SC00 — 六角法兰面螺栓M6*12 件
