Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 11.80 | listing | motogbshop.co.uk |

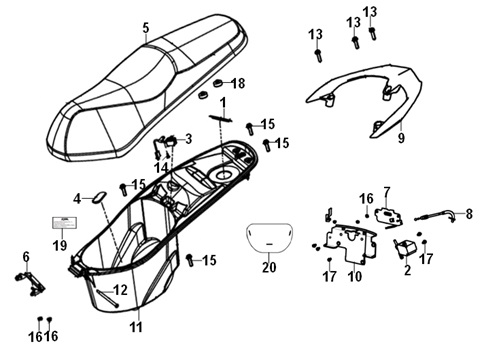

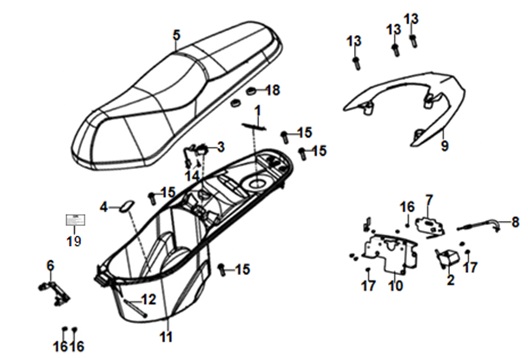

Location in exploded diagrams
Other parts on this diagram — Seat And Rear Carrier
- 77200X8A000T1 — Sym Jet 14 125 AC E5 DOUBLE SEAT COMP.
- 87145U43000 — Sym Jet 14 125 AC E5 RURO 4 STRIPE
- 50352ADB000 — Sym Jet 14 125 AC E5 LINK STOPPER RUBBER
- 957010601008 — Sym Jet 14 125 AC E5 FLANGE BOLT 6*10 mm
- 958010601008 — Sym Jet 14 125 AC E5 FLANGE BOLT 6X10
- 9405006040 — Sym Jet 14 125 AC E5 FLANGE NUT 6MM
- 90115ATA000 — Sym Jet 14 125 AC E5 FLANGE BOLT 6*16
- 90106B9A000 — Sym Jet 14 125 AC E5 SPECIAL BOLT
- 90105HHA000 — Sym Jet 14 125 AC E5 SEAT HING SCREW
- 81250XPA000 — Sym Jet 14 125 AC E5 LUGGAGE BOX
- 81207XPA000 — Sym Jet 14 125 AC E5 SEAT CATCH STAY
- 81200X8A000K — Sym Jet 14 125 AC E5 RR. CARRIER
- 77240XPA000 — Sym Jet 14 125 AC E5 SEAT LOCK CABLE
- 77230APA000 — Sym Jet 14 125 AC E5 SEAT CATCH
- 77201AAA000 — Sym Jet 14 125 AC E5 SEAT HINGE
- 77200X8A000 — Sym Jet 14 125 AC E5 DOUBLE SEAT COMP.
- 70529APA000 — Sym Jet 14 125 AC E5 CARB. MAIN RUBBER
- 36600A1A010 — Sym Jet 14 125 AC E5 ENG. START CONTROL SW.
- 17506XPA000 — Sym Jet 14 125 AC E5 FUEL GUIDE RUBBER
- 77200X8A000RH — Sym Jet 14 125 AC E5 DOUBLE SEAT COMP
