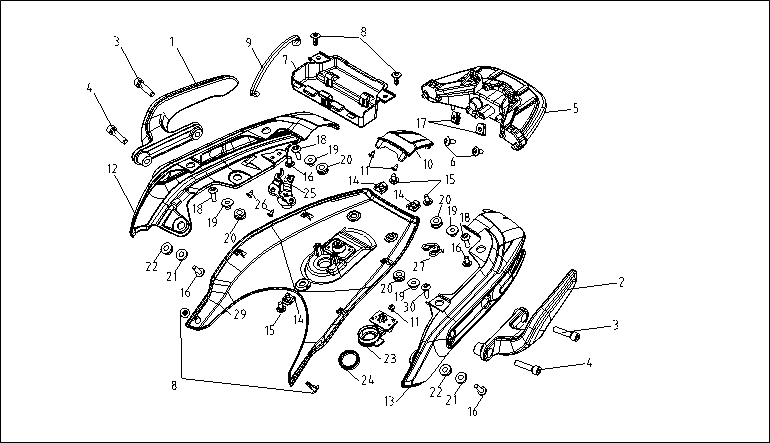

Other parts on this diagram — Frame Assembly 2
- 380190480-0003 — Voge 525 ACX SCREW,HEXAGON SOCKET
- 342280014-0002 — Voge 525 ACX PLATE,TAIL SHIELD LOWER
- 342530107-0001 — Voge 525 ACX HOOK,HELMET
- 342530106-0001 — Voge 525 ACX HOOK,HELMET
- 380820512-0004 — Voge 525 ACX COLLAR
- 380310002-0012 — Voge 525 ACX SCREW,CROSS RECESSED PAN SELF-TAPPING
- 330190109 — Voge 525 ACX LOCK,SEAT
- 292470018-0001 — Voge 525 ACX DUST CAP
- 330180007-0001 — Voge 525 ACX SHIELD,SEAT LOCKING DEVICE
- 380880092-0001 — Voge 525 ACX T-RUBBER
- 380450007-0014 — Voge 525 ACX WASHER,PLAIN
- 380890173-0001 — Voge 525 ACX I-RUBBER
- 380190479-0003 — Voge 525 ACX BOLT,HEXAGON FLANGE
- 380420002-0004 — Voge 525 ACX NUT,CLIP
- 380190477-0003 — Voge 525 ACX SCREW,HEXAGON SOCKET
- 380190500-0001 — Voge 525 ACX SCREW,HEXAGON SOCKET
- 380420062-0001 — Voge 525 ACX NUT,CLIP
- 342040211-0010 — Voge 525 ACX BODY COVER.,LEFT
- 380310005-0006 — Voge 525 ACX SCREW,CROSS RECESSED PAN SELF-TAPPING
- 342390292-0003 — Voge 525 ACX COVER COMP.,TAIL
- 380900326-0001 — Voge 525 ACX CLAMPING BAND
- 350440020-0001 — Voge 525 ACX CLIP
- 312730206-0001 — Voge 525 ACX BOX,TOOL
- 380190215-0004 — Voge 525 ACX SCREW,HEXAGON SOCKET
