Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

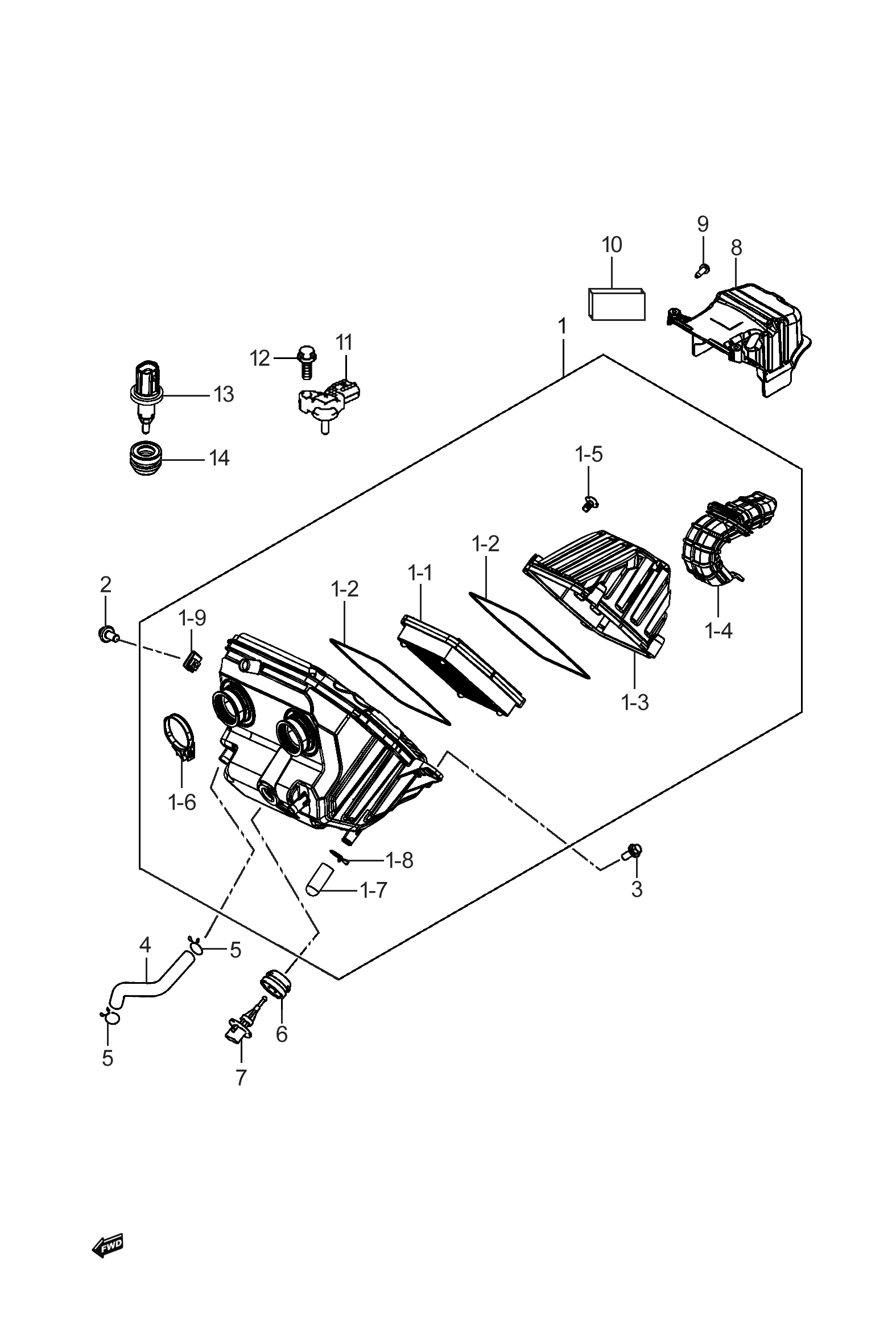

Location in exploded diagrams
Other parts on this diagram — 空滤器组
- #1 13700H2H004H000 — 空滤器总成
- #1-1 13780H2H000H000 — 空滤器滤芯组成
- #1-2 13723H2H000H000 — 空滤器密封条
- #1-3 13741H2H000H000 — 空滤器盖
- #1-4 13891H2H000H000 — 进气管
- #1-5 02142-0516B-000 — 十字槽小螺钉
- #1-6 13170H2H000H000 — 出气管卡箍
- #1-7 13878-48H01-000 — 放油管塞
- #1-8 09401H14302H000 — 卡箍
- #1-9 35157H37200H000 — 螺母夹
- #2 01550-0616A-000 — 六角法兰面螺栓
- #3 09111H06005H000 — 轴肩螺栓
- #4 13851H2H000H000 — 通气管
- #5 09401-15101-000 — 卡箍
- #6 13655-77E00-000 — 空气温度传感器索环
- #7 13650-52G00-000 — 空气温度传感器
- #8 13787H2H000H000 — 防水罩
- #9 03541-0516A-000 — 十字槽球头自攻钉
- #11 18590-18K00-000 — 空气压力传感器组成
- #12 01550-0520A-000 — 六角法兰面螺栓
- #13 13650H7J100H000 — 空气温度传感器
- #14 13715H7J110H000 — 空气温度传感器护套
