Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

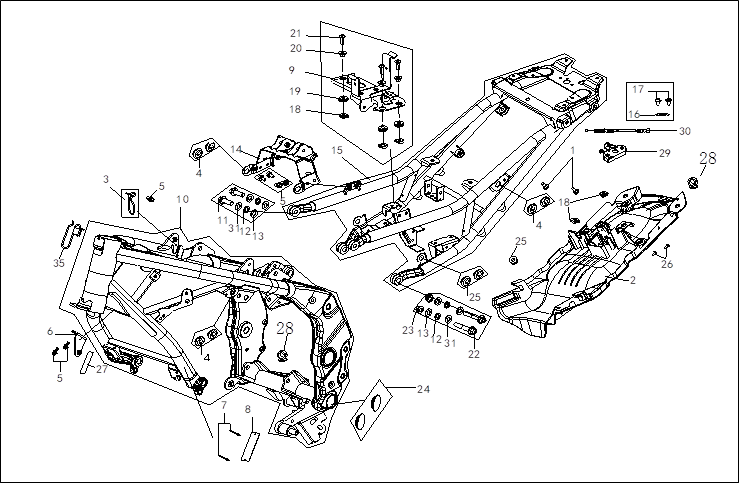

Other parts on this diagram — Frame Assembly
- 380451371-0001 — Voge 525 ACX WASHER,PLAIN
- 330250187-0001 — Voge 525 ACX CABLE,SEAT
- 380900329-0001 — Voge 525 ACX CLAMPING BAND
- 370850007-0001 — Voge 525 ACX TECHNIQUE LABEL
- 380310005-0006 — Voge 525 ACX SCREW,CROSS RECESSED PAN SELF-TAPPING
- 380890174-0001 — Voge 525 ACX I-RUBBER
- 342520023-0001 — Voge 525 ACX CAP,FRAME DECORATIVE
- 380400001-0009 — Voge 525 ACX NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE
- 380871134-0001 — Voge 525 ACX AXIS
- 380190479-0003 — Voge 525 ACX BOLT,HEXAGON FLANGE
- 380820512-0004 — Voge 525 ACX COLLAR
- 380890370-0001 — Voge 525 ACX I-RUBBER
- 380420062-0001 — Voge 525 ACX NUT,CLIP
- 380190478-0003 — Voge 525 ACX SCREW,HEXAGON SOCKET
- 331990011-0001 — Voge 525 ACX WASHER,SEAT LOCK
- 300460094-0001 — Voge 525 ACX REAR PART,FRAME
- 301910014-0001 — Voge 525 ACX BODY,FUEL TANK REAR BRACE
- 380460002-0010 — Voge 525 ACX WASHER,ELASTIC
- 380450006-0011 — Voge 525 ACX WASHER,PLAIN
- 380871138-0001 — Voge 525 ACX AXIS
- 300121394-0001 — Voge 525 ACX BODY COMP.,FRAME
- 271140245-0001 — Voge 525 ACX BRACKET,BATTERY
- 370410426-0001 — Voge 525 ACX NAMEPLATE,FRAME
- 380580118-0001 — Voge 525 ACX RIVET
