Supersession history
⚠️ This part number has been superseded by 3120941 (source: 250SR CF250-6(FBD)-2025款). Order the replacement number for new stock.
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

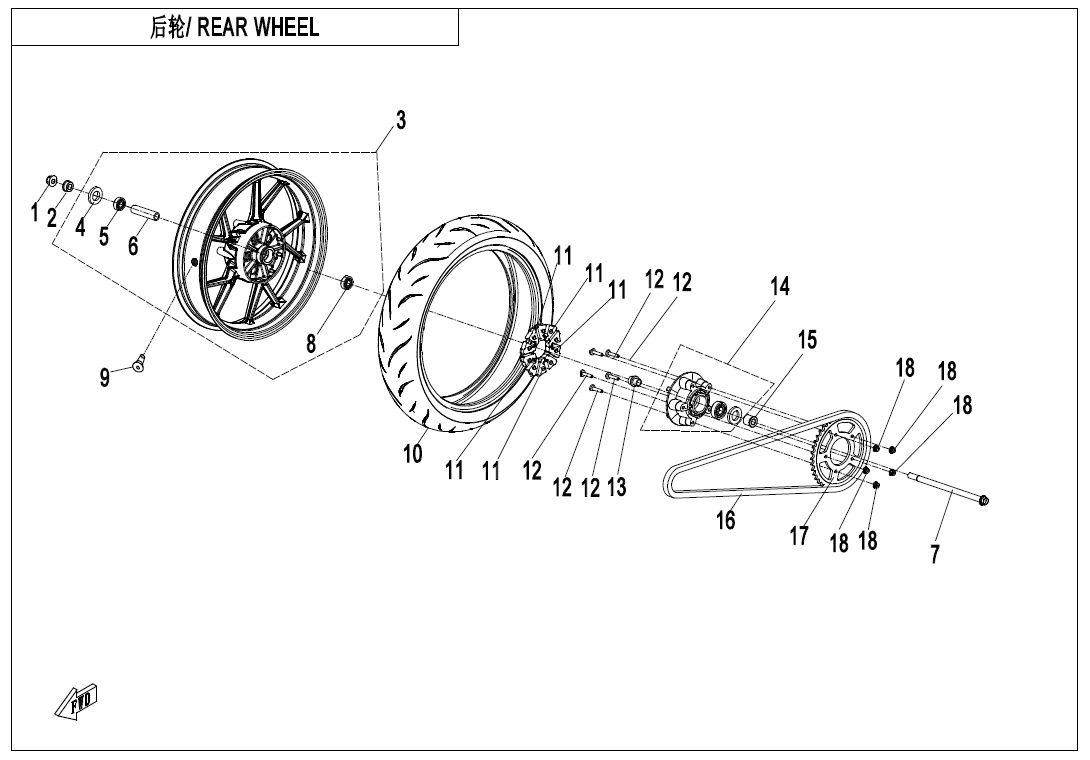

Other parts on this diagram — 后轮 REAR WHEEL
- #08 30400-01580 — BEARING
- #09 5190-070030-1000 — VALVE, INFLATION
- #12 6KJ0-110003 — BOLT
- #18 30204-080810 — LOCK NUT
- #10 3070SH-174800 — TIRE
- #11 6KM0-110004 — SPROCKET SEAT RUBBER DAMPER
- #13 6KM0-110003-10000 — SPROCKET SEAT BUSHING
- #14 6KM0-110200-10000 — SPROCKET ASSY
- #15 6KM0-110002-10000 — REAR WHEEL SHAFT SLEEVE
- #17 6KM#-110005-8003 — REAR SPROCKET
- #01 30204-143810 — NUT
- #02 6KJ0-110001-10000 — REAR WHEEL RH SHAFT SLEEVE
- #03 6KMV-110100-3000-M1-0DH00 — REAR RIM ASSY
- #04 30500-027800N — OIL SEAL
- #05 30400-01583 — BEARING
- #06 6KM#-110103-6001 — REAR RIM MIDDLE SPACER
- #07 6KJ0-110005-20000 — REAR WHEEL SHAFT
