Location in exploded diagrams

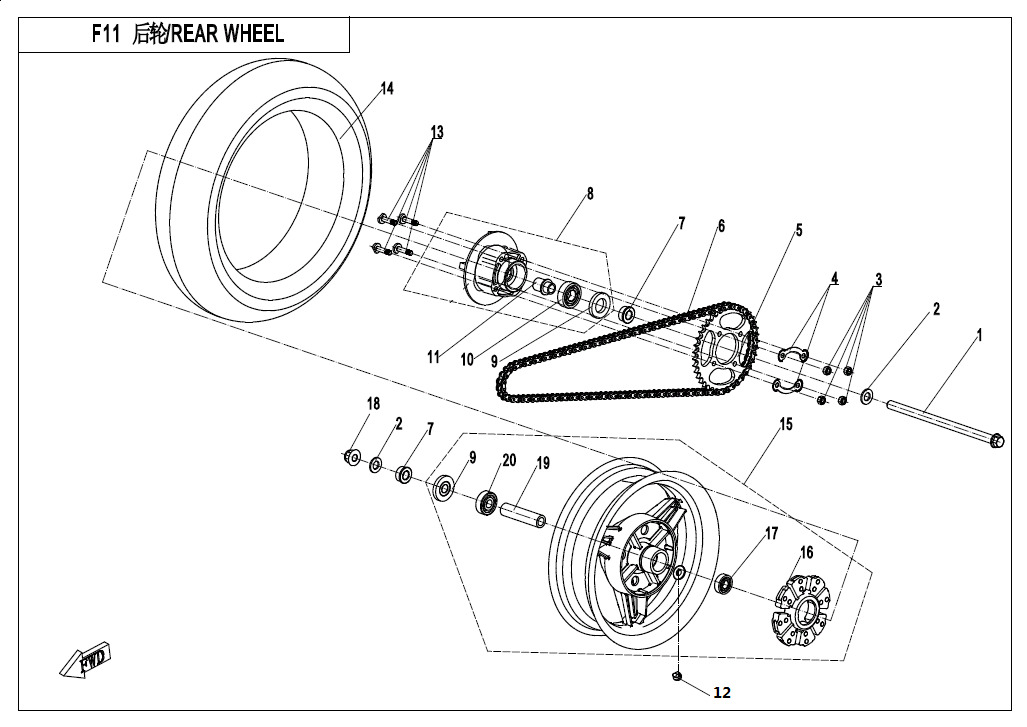

Other parts on this diagram — REAR WHEEL
- #1 6FIV-110001-7100 — REAR WHEEL SHAFT
- #2 30306-140112 — WASHER 14
- #3 30200-080810 — NUT M8
- #4 6KJ0-110004 — LOCK PLATE
- #5 6FI2-110003-10000 — REAR SPROCKET
- #7 6KJ0-110001-10000 — RH SHAFT SLEEVE, REAR WHEEL
- #8 6090-112100 — SEAT, SPROCKET
- #9 30500-027800N — OIL SEAL FB27X47X7
- #10 30400-02001 — BEARING 6204-RS
- #12 5190-070030-1000 — VALVE, INFLATION
- #13 6KJ0-110003 — BOLT
- #14 30704-1210 — TYRE
- #15 6FIV-110100-6001-0B200 — REAR RIM ASSY MATTE BLACK
- #16 6KJV-110004-8000 — DAMPING RUBBER, SPROCKET SEAT
- #17 30400-01580 — BEARING 6202-2RS
- #18 30204-143810 — NUT M14X1.5
- #19 6FIV-110102-6000 — CENTER SPACER, REAR RIM
- #20 30400-01583 — BEARING 6302-2RS
