Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 215.46 | listing | motogbshop.co.uk |

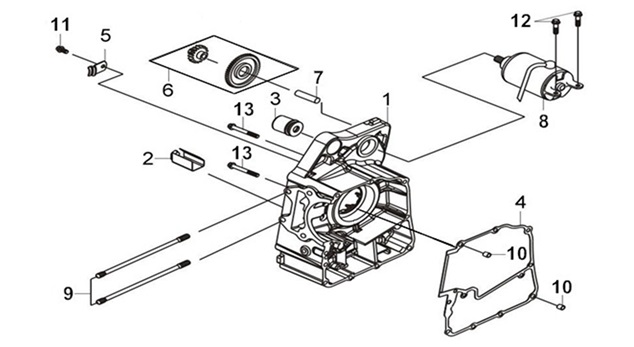

Location in exploded diagrams
Other parts on this diagram — R. CRANK CASE
- 11120LEA007 — Sym CRUiSYM 300 E5 ENGINE HANGER BUSH ASSY
- 960010605500 — Sym CRUiSYM 300 E5 BOLT FLANGE SH 6X55
- 960010602200 — Sym CRUiSYM 300 E5 FLANGE BOLT SH 6X22
- 957010601208 — Sym CRUiSYM 300 E5 BOLT FLANGE 6X12
- 9430108140 — Sym CRUiSYM 300 E5 DOWEL PIN 8*14
- 90031HMA000 — Sym CRUiSYM 300 E5 CYLINDER STUD BOLT A
- 28102RB1000 — Sym CRUiSYM 300 E5 START.REDUCTION GEAR SHAFT(S10X37)
- 28101RB1000 — Sym CRUiSYM 300 E5 STARTER REDUCTION GEAR COMP
- 15200HML000 — Sym CRUiSYM 300 E5 OIL RELIEF VALVE ASSY
- 14151LEF000 — Sym CRUiSYM 300 E5 CAM CHAIN SETTING PLATE
- 14151RFA000 — Sym CRUiSYM 300 E5 CAM CHAIN SETTING PLATE
- 11191L3A000 — Sym CRUiSYM 300 E5 CRANK CASE GASKET
- 11107HMA000 — Sym CRUiSYM 300 E5 MAGNET PLATE
- 11100L3A000 — Sym CRUiSYM 300 E5 R. CRANK CASE COMP
