31120ADR601SHero XPulse 200 STATOR COMPLETE — Genuine Hero Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

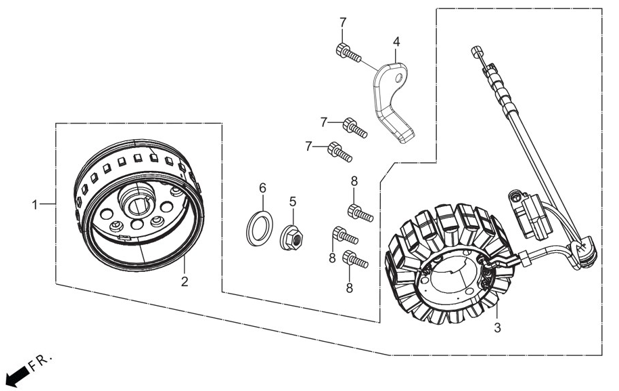

Location in exploded diagrams

Other parts on this diagram — E5 - Generator

• 967000603210S — Hero XPulse 200 BOLT,SOCKET, 6X32
• 90085KTC920S — Hero XPulse 200 BOLT, SOCKET, 6 X 14
• 90501KPTA00S — Hero XPulse 200 WASHER 14.1X29X2.8
• 90201KRM840S — Hero XPulse 200 NUT, FLANGE, 14 MM
• 32111ABZ000S — Hero XPulse 200 CLAMPER ACG CORD
• 31110ADR6010S — Hero XPulse 200 ACG FLYWHEEL COMP
• 31100ADR601S — Hero XPulse 200 AC GEN ASSY
