Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (7)
Australia (2)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 8.46 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 7.82 | listing | cfmoto.quadzillaparts.co.uk |

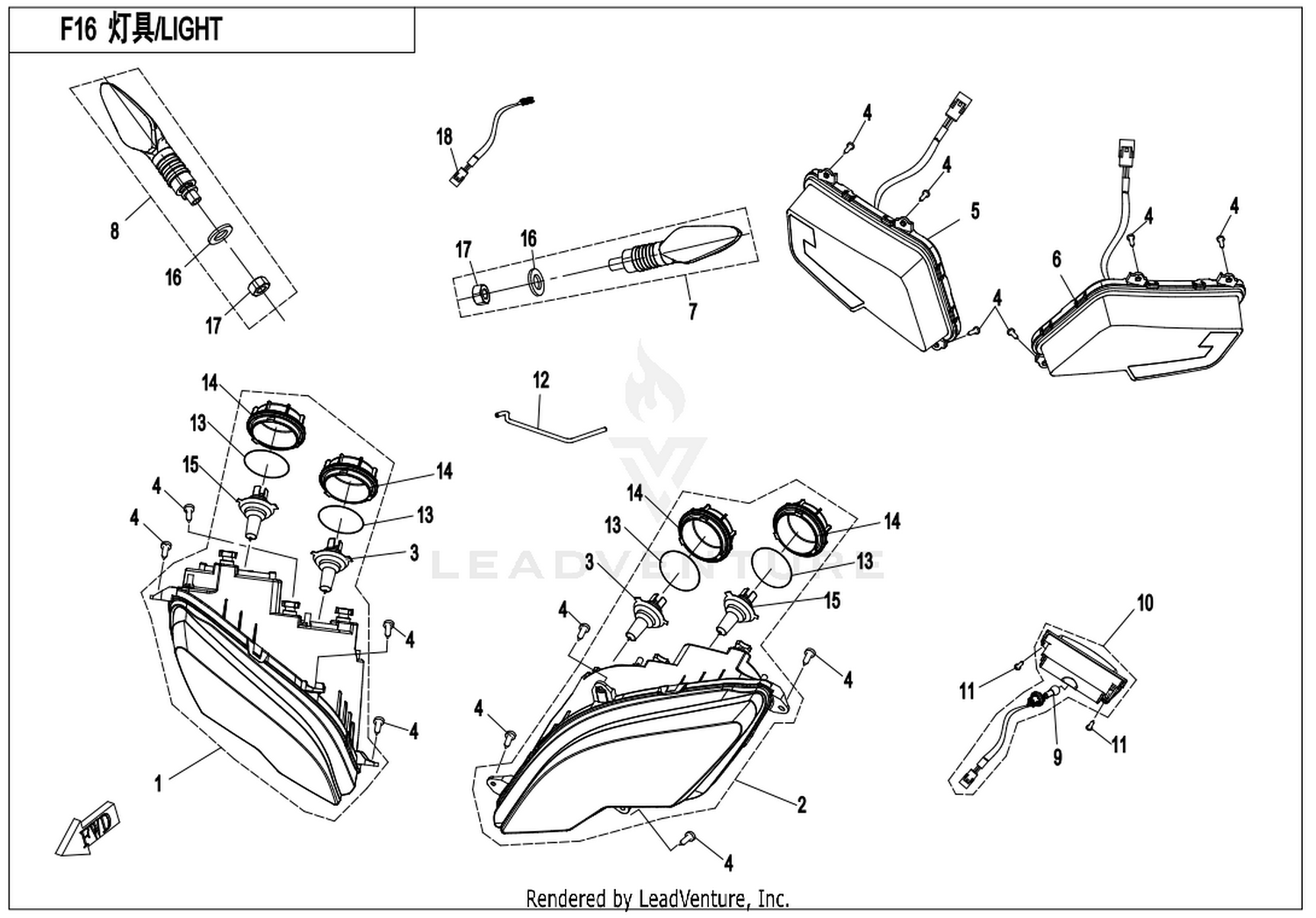

Location in exploded diagrams
Other parts on this diagram — LIGHT
- #1 7030-160120-10001 — HEADLIGHT, RH Replacing: 7030-160120-00001 - HEADLIGHT , RH NLA USE 7030-160120-10000
- #2 7030-160110-10001 — HEADLIGHT, LH Replacing: 7030-160110-00001 - HEADLIGHT,LH
- #3 3112036 — BULB
- #4 30110-420160010 — SELF-TAPPING SCREW. ST4.2X16
- #5 7000-160220 — TAIL LIGHT COMP, RH
- #6 7000-160210 — TAIL LIGHT COMP, LH
- #7 7030-160310-10000 — FRONT TURN LIGHT, LH, SUMITOMO PLUG
- #8 7030-160320-10000 — FRONT TURN LIGHT,RH, SUMITOMO PLUG
- #9 3112017 — BULB
- #10 9020-160410-10001 — LICENCE LIGHT, SUMITOMO PLUG
- #11 30105-050012410 — SCREW M5X12
- #12 7030-160412 — RH BREATHER HOSE, HEADLIGHT
- #13 7030-160112 — SEAL RING, HEADLIGHT
- #14 7030-160111 — COVER, HEADLIGHT
