Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

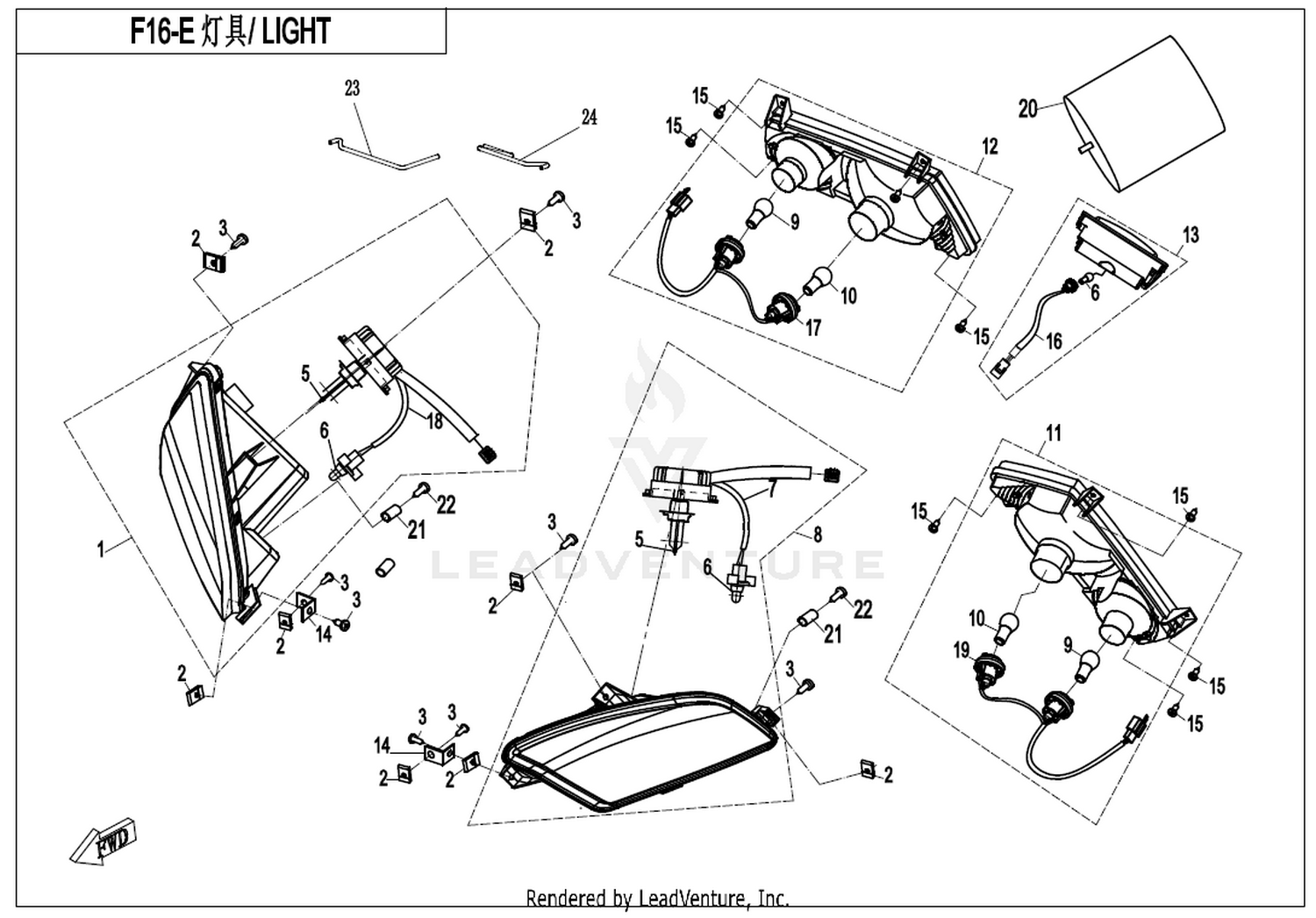

Other parts on this diagram — Lights(Usa)
- #05 3112003 — Bulb Hs1 12V 35 & 35 Px43T
- #12 9060-160220-1000 — Rh Tail Light Assy
- #18 9060-160121-1000 — Headlight Cable
- #05 7030-160411 — Headlight Lh Breather Hose
- #09 3112017 — Bulb W5W 12V 5W W2.1X9.5D
- #13 7020-160300 — Licence Light Assy Certification Requirements
- #19 9060-160211-1000 — Harness, Lh Tail Light
- #08 9060-160110-1000 — Lh Headlight
- #14 7020-038001 — Headlight Bracket
- #20 9020-160320 — Police Light, Red
- #01 9060-160120-1000 — Rh Headlight
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #06 6090-040303 — Bushing
- #19 8010-000002 — Clamp St4.2
- #10 3112004 — Bulb 12V P21 & 5W 21 & 5W Bay15D
- #16 7020-160320 — Harness, Licence Light
- #05 30110-480200040 — Self-Tapping Screw St4.8X20-F-H St4.8X20-F-H
- #11 30110-420160010 — Self-Tapping Screw St4.2×16
- #11 9060-160210-1000 — Lh Tail Light Assy
- #17 9060-160221-1000 — Harness, Rh Tail Light
- #04 7030-160412 — Headlight Rh Breather Hose
