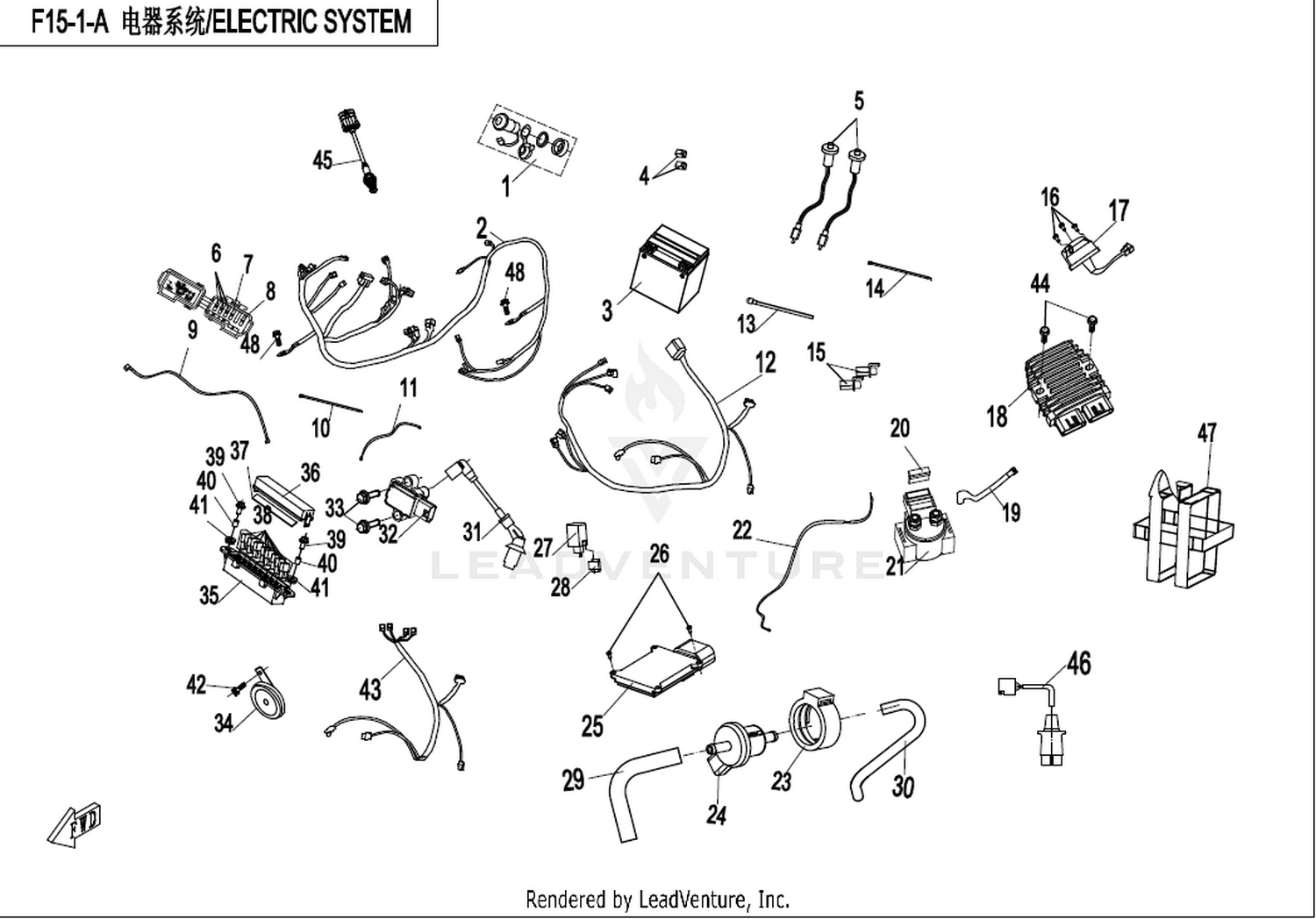

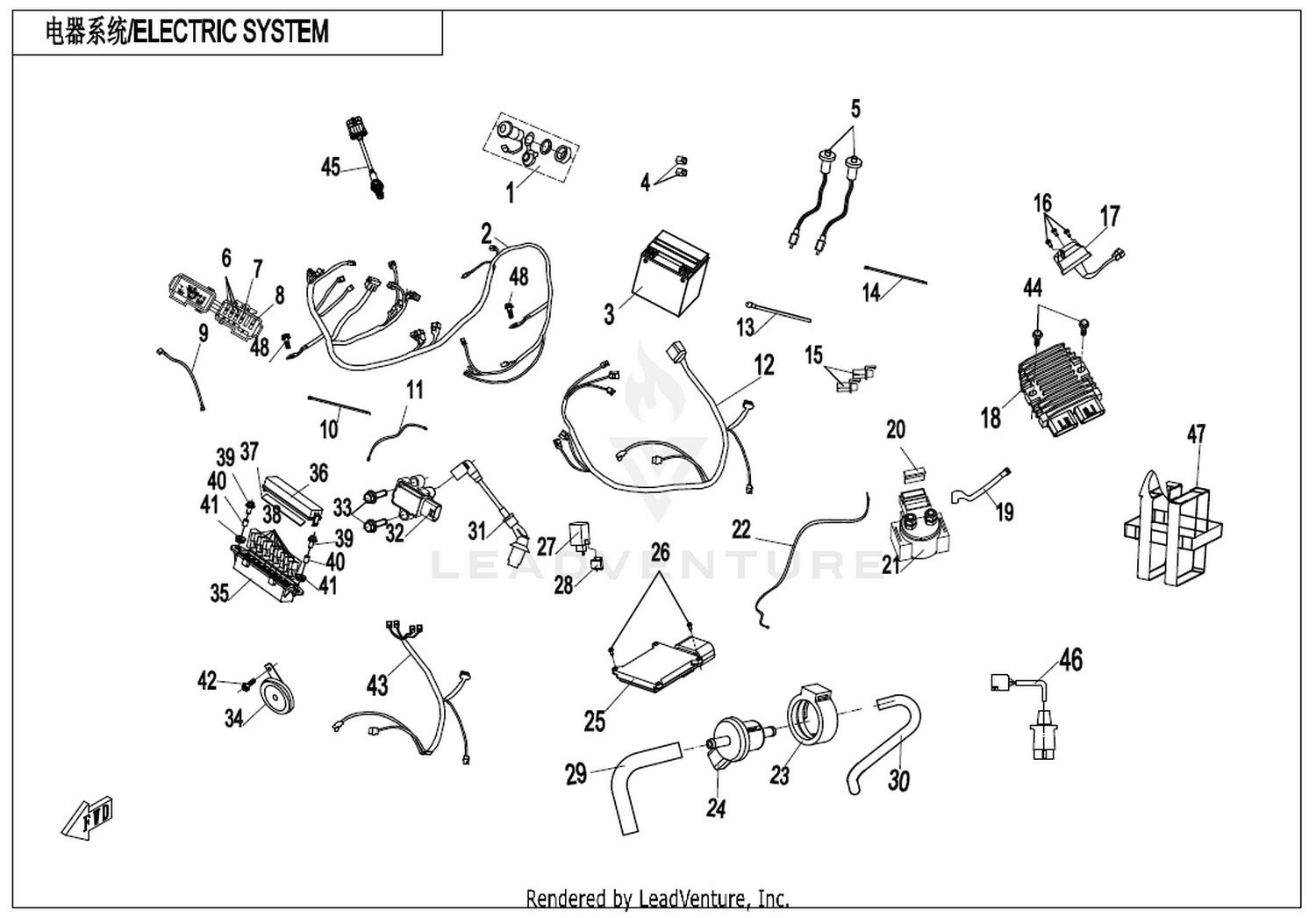

Location in exploded diagrams




Other parts on this diagram — Electric System
- #16 7020-150500-1000 — Power Outlet Socket Assy Sumitomo Plug
- #23 806A-151302 — Fuse 10A 10A
- #12 9CR6-150300 — Efi Auxiliary Cable
- #29 30105-050030410 — Screw M5X30
- #34 7020-150230 — Battery Positive Wire
- #25 0GR0-174000-20000 — Ecu Assy Bosch Mse3.0
- #31 0GR0-178000 — High-Tension Cable
- #30 7020-040412-10000 — Cover,Relay Box
- #02 30006-080014810 — Bolt M8×14
- #49 9060-152100 — Battery Belt
- #16 7020-150500 — Power Outlet Socket Assy Ordinary
- #07 31023000 — Battery Dynovolt, 12V30Ah
- #07 8080-151301 — Fuse 5A 5A
- #12 9CRB-150300 — Efi Auxiliary Cable Ordinary
- #32 7020-150800-1000 — Trailer Power Socket Sumitomo Plug
- #11 9010-150301 — Fuse 22A
- #10 30110-480160010 — Self-Tapping Screw St4.8X16@Color Zinc Trivalent Chromium
- #34 018B-178000 — Ignition Coil
- #41 7020-040414 — Rubber Washer, Relay Box Cover
- #49 9CR6-150500 — Adaptor Cable, Daytime Running Light
- #12 30006-060012810 — Bolt M6×12
- #02 9CR6-150100-20001 — Main Cable Sumitomo
- #07 31023004 — Battery Dynavolt,12V 32Ah
- #09 9CS0-150210 — Starter Motor Negative Cable
