Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 140.61 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 130.00 | listing | cfmoto.quadzillaparts.co.uk |

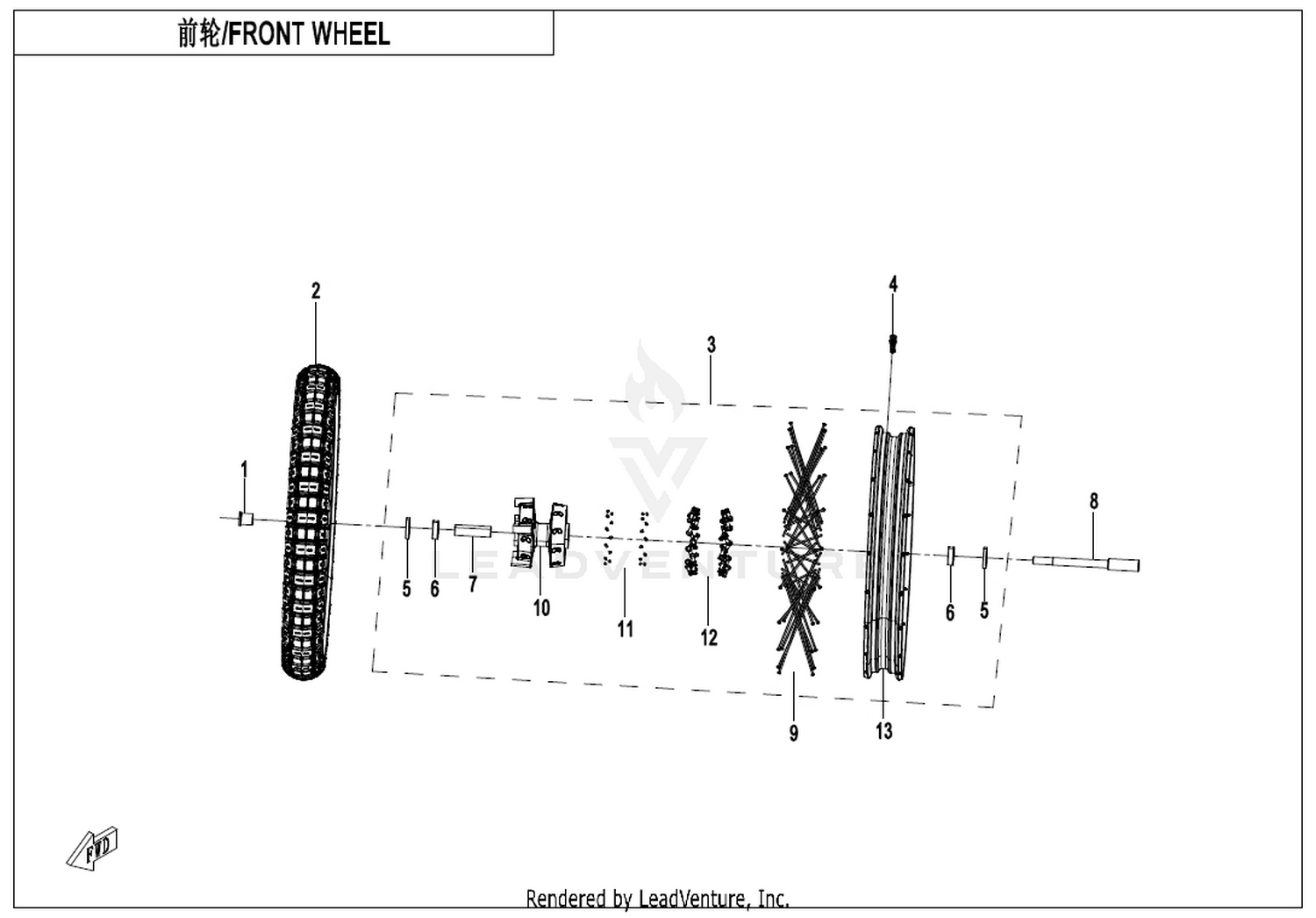

Location in exploded diagrams


Other parts on this diagram — Front Wheel 1
- #08 6AQV-070003-1001 — Front Wheel Shaft
- #03 6AQV-070100-6000-M2 — Front Rim Assy
- #09 6AQV-070107-6000-M2 — Spoke I
- #08 6WWV-070300-5000-M1 — Inflation Valve
- #10 6AQV-070102-6000-M2 — Front Wheel Middle Hub
- #05 6AQV-070104-6000-20 — Oil Seal
- #11 6AQV-070109-6000-22 — Screw
- #06 30400-01785 — Bearing
- #25 6AQV-110106-6000-M2 — Spoke Nipple
- #01 6AQV-070002-1000 — Front Wheel Shaft Bushing
- #07 6AQV-070105-6000-M1 — Front Wheel Middle Spacer
- #13 6AQV-070101-6000-M2 — Front Wheel Rim
