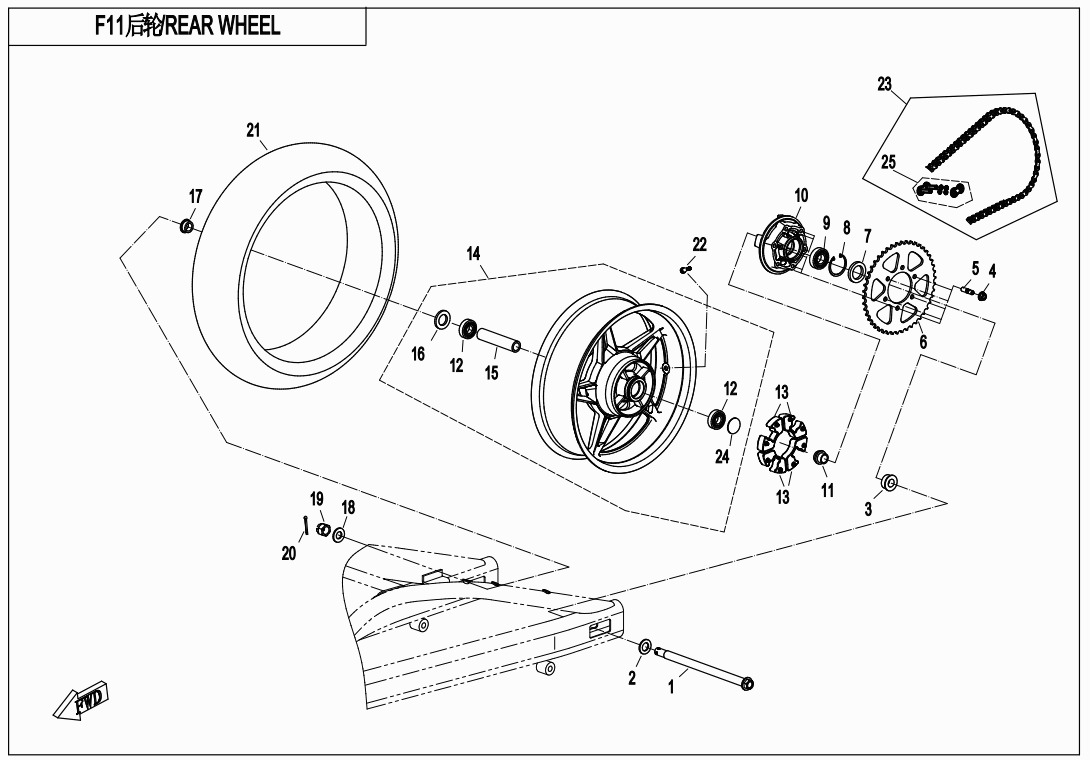

Location in exploded diagrams
Other parts on this diagram — REAR WHEEL
- #1 6NT1-110001 — REAR WHEEL AXLE
- #2 30306-200112 — WASHER
- #3 A000-110002 — LH SHAFT SLEEVE, REAR WHEEL
- #4 30204-102810 — NUT M10X1.25
- #5 30020-102025410 — STUD
- #6 6NTG-110004-10000 — REAR SPROCKET
- #7 30501-035800N — OIL SEAL FB35X52X8
- #8 30800-05205 — CIRCLIP FOR HOLE 52
- #9 30400-02503 — BEARING 6205-2RS
- #10 6NQV-110006-6000-0B200 — SPROCKET SEAT MATTE BLACK
- #11 A000-110005-10000 — SHAFT BUSHING, SPROCKET SEAT
- #12 30400-02001 — BEARING 6204-RS
- #13 A000-110007 — DAMPER SPROCKET SEAT
- #19 A000-110011 — NUT, REAR WHEEL
- #14 6NTV-110100-2001-0DH00 — REAR RIM ASSY HIGH BRIGHT BLACK
- #14 6NTV-110100-2001-0YJ00 — REAR RIM ASSY COFFEE GOLDEN
- #15 6NQV-111102-2000 — CENTER SPACER, REAR RIM
- #16 30501-028800N — OIL SEAL
- #17 6NT1-110003 — WASHER , REAR WHEEL AXLE
- #18 6NT1-110002 — WASHER , REAR WHEEL AXLE
- #20 30903-0403510 — COTTER PIN
- #21 30705-1742 — TYRE
- #22 5190-070030-1000 — VALVE, INFLATION
- #24 30503-060800N — O-RING 60X3.10
