30705-1707REAR TIRE — Genuine CF MOTO Part
CF MOTOoemFactory supply status: 启用
GB/T2983_带EC_DOT标记_环保真空轮胎
Supersession history
⚠️ This part number has been superseded by 30705-1751+30705-1754 (source: CF650-6-2016). Order the replacement number for new stock.
Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

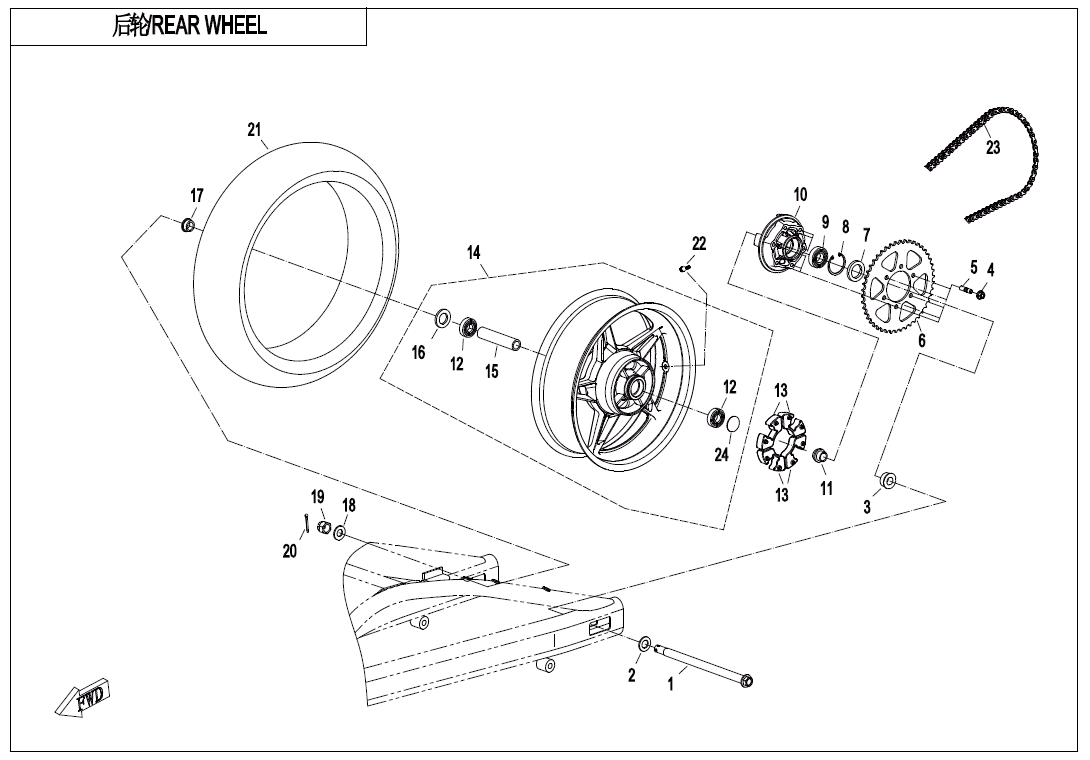

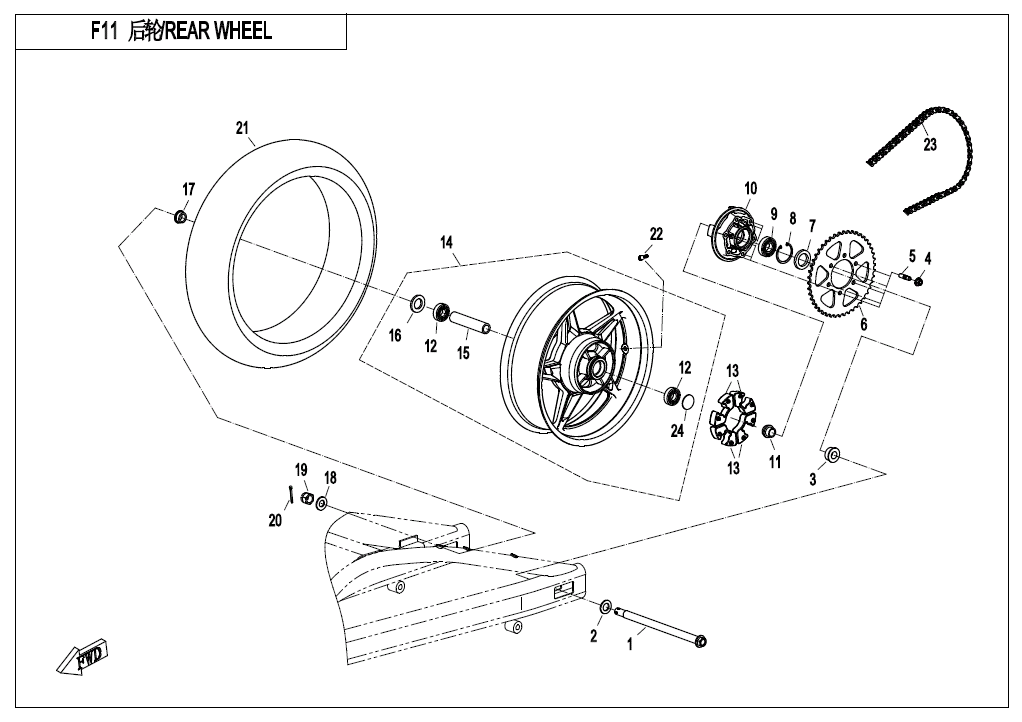

Other parts on this diagram — 后轮 REAR WHEEL
- #22 5190-070030-1000 — VALVE, INFLATION
- #17 A000-110003 — REAR WHEEL RH SHAFT SLEEVE
- #18 A000-110009 — REAR WHEEL SHAFT WASHER18
- #19 A000-110011 — NUT, REAR WHEEL
- #01 A000-110001 — REAR WHEEL SHAFT
- #02 30306-200112 — WASHER
- #03 6NTG-110002 — REAR WHEEL LH SHAFT SLEEVE
- #04 30204-102810 — NUT
- #05 30020-102025410 — STUD
- #06 6NTG-110004 — REAR SPROCKET
- #07 30501-035800N — OIL SEAL
- #08 30800-05205 — CIRCLIP FOR HOLE
- #09 30400-02503 — BEARING
- #10 A000-110006-0B20 — SPROCKET SEAT
- #11 A000-110005 — SPROCKET SEAT SHAFT BUSHING
- #12 30400-02001 — BEARING
- #13 A000-110007 — SPROCKET SEAT DAMPER
- #14 6NTG-110200-0B200 — REAR RIM ASSY
- #15 A000-110008 — REAR RIM MIDDLE SPACER
- #16 30501-028800N — OIL SEAL
- #20 30903-0403510 — COTTER PIN
- #23 3120908 — CHAIN
- #24 30503-060800N — O-RING 60x3.10
