Location in exploded diagrams

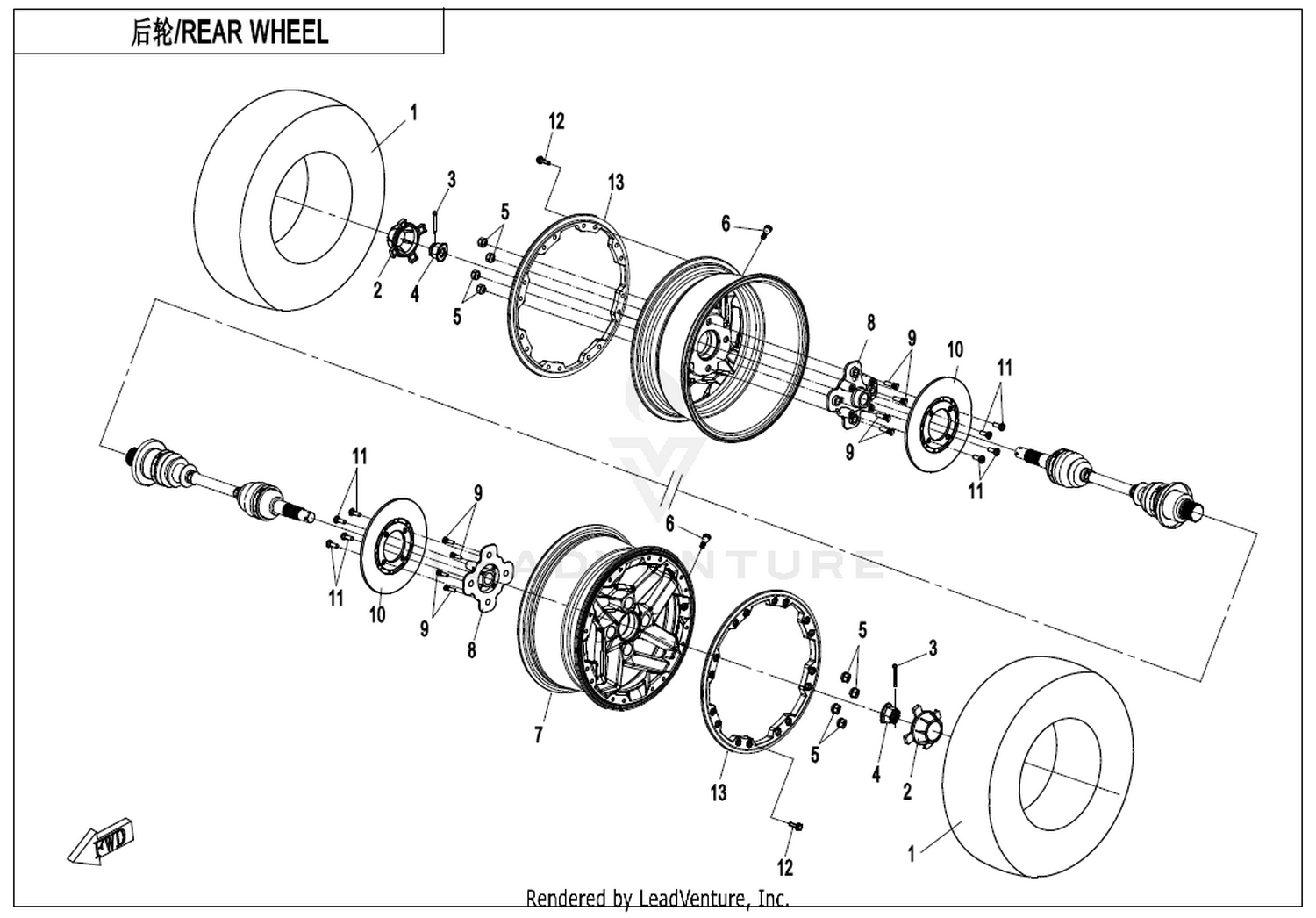

Other parts on this diagram — Rear Whee(With Lock Ring)
- #01 30703-1434 — Tire 27X11 R14 66L 8Pr
- #03 30903-0403610 — Cotter Pin 40X36@Color Zinc Trivalent Chromium
- #07 5190-070030-1000 — Inflation Valve
- #09 9010-070201 — Front Wheel Bracket Bolt
- #07 30006-060025870 — Boltm6X25 Black Zinc-Plated
- #13 9AY#-070101-2A00-0HB00 — Lock Ring Dynamic Gray
- #04 5HYV-110001-1F00 — Hex Flange Nut
- #07 9AY#-110102-2A00-0BU00 — Rear Rim & Mist 14X8.0@Mist Silver Black
- #10 9AWV-080002-8000 — Rear Brake Disc
- #13 9AY#-070101-2A00-0VR00 — Lock Ring Electro Silver
- #02 5ASV-070101-6001 — Deco Cover Aluminum Rim
- #05 9010-070002-A000 — Mounting Nut, Rim Chrome Plated
- #08 9AWV-110001-2B01 — Rear Wheel Hub
- #11 A000-080001 — Screw
- #13 9AY#-070101-2A00-0S100 — Lock Ring Lava Red
