Verified fitment — 9 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (5)
Location in exploded diagrams

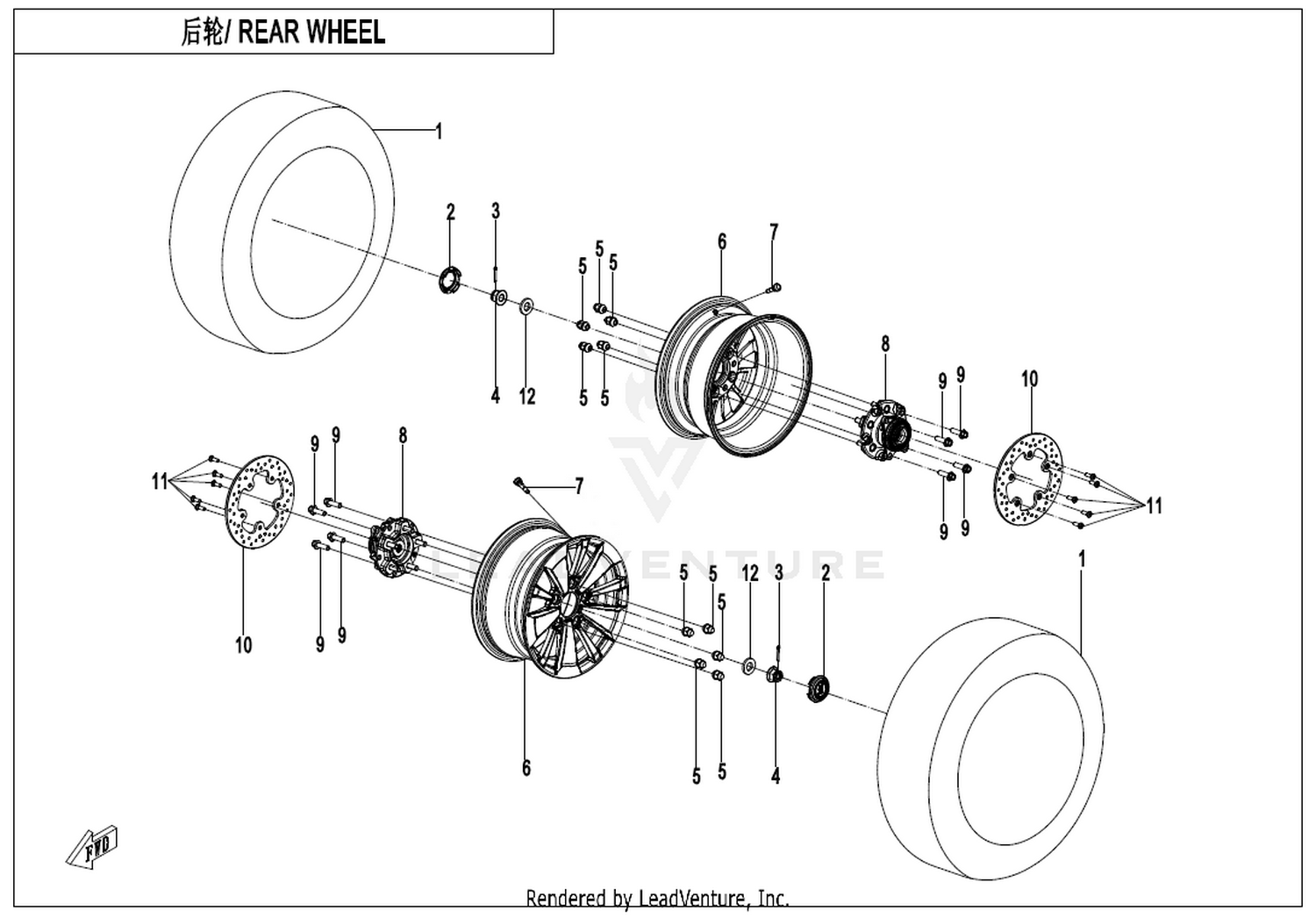

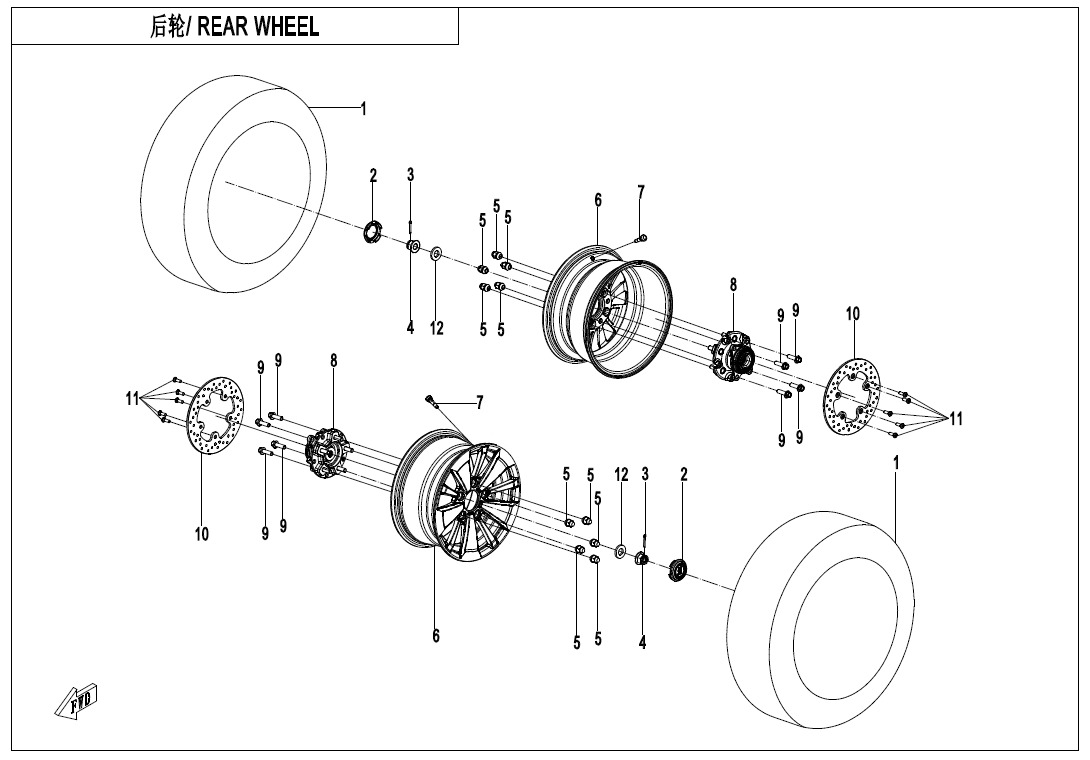

Other parts on this diagram — REAR WHEEL
- #2 5HYV-070501-6000 — ALUM WHEEL DECO COVER
- #3 5HYV-110001-1F00 — HEX FLANGE NUT
- #4 30903-0403610 — COTTER PIN
- #5 5HYV-070203-6000 — WHEEL NUT
- #6 5HYV-110100-6000 — REAR RIM
- #7 5BYA-070030 — INFLATION VALVE
- #8 5HYV-070400-9000 — HUB & BEARING ASSY
- #9 30024-122040110 — BOLT
- #10 5HYV-080002-6000 — REAR BRAKE DISC
- #11 A000-080001 — SCREW
- #12 5HYV-070602-6000 — WASHER
