Location in exploded diagrams

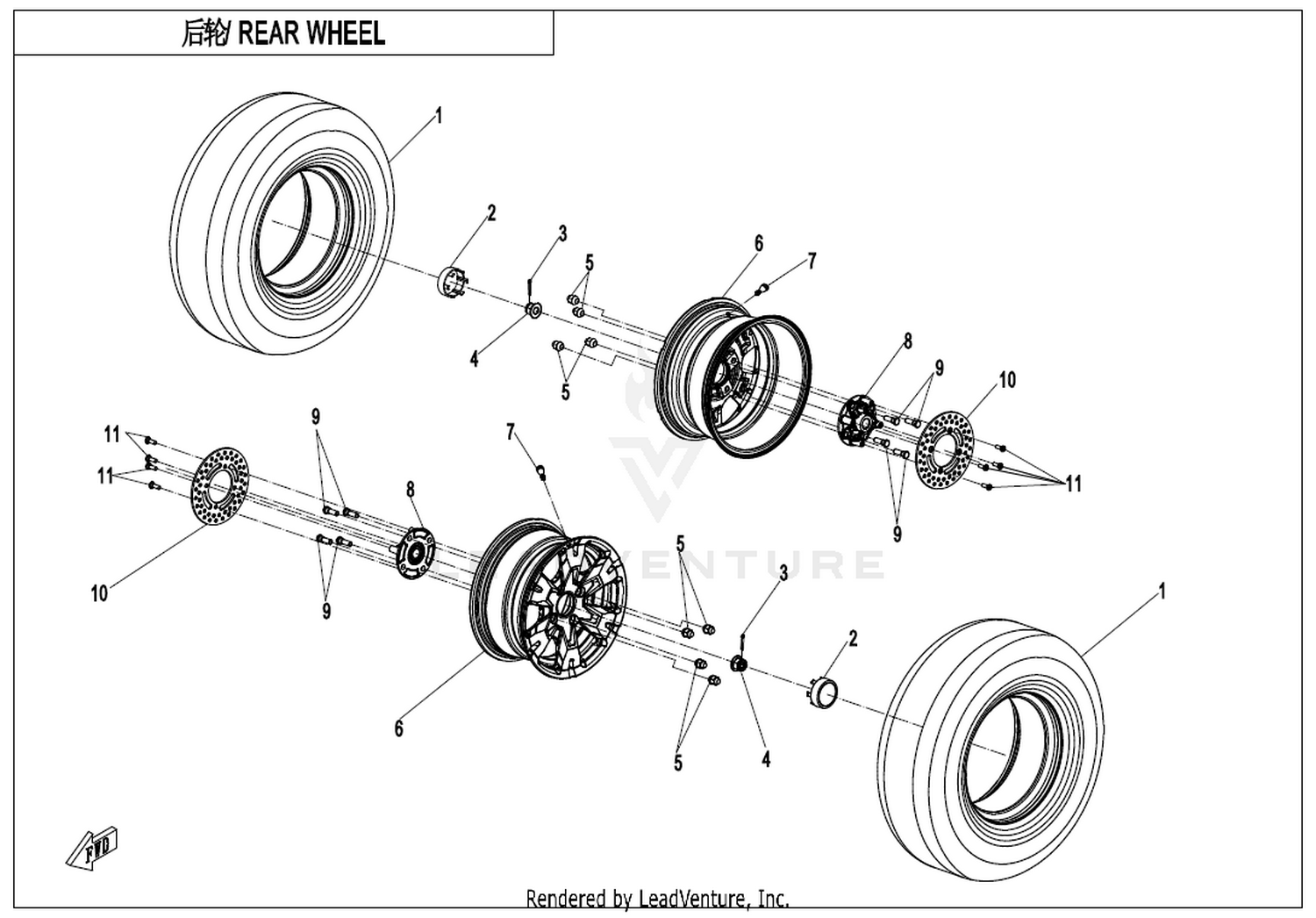

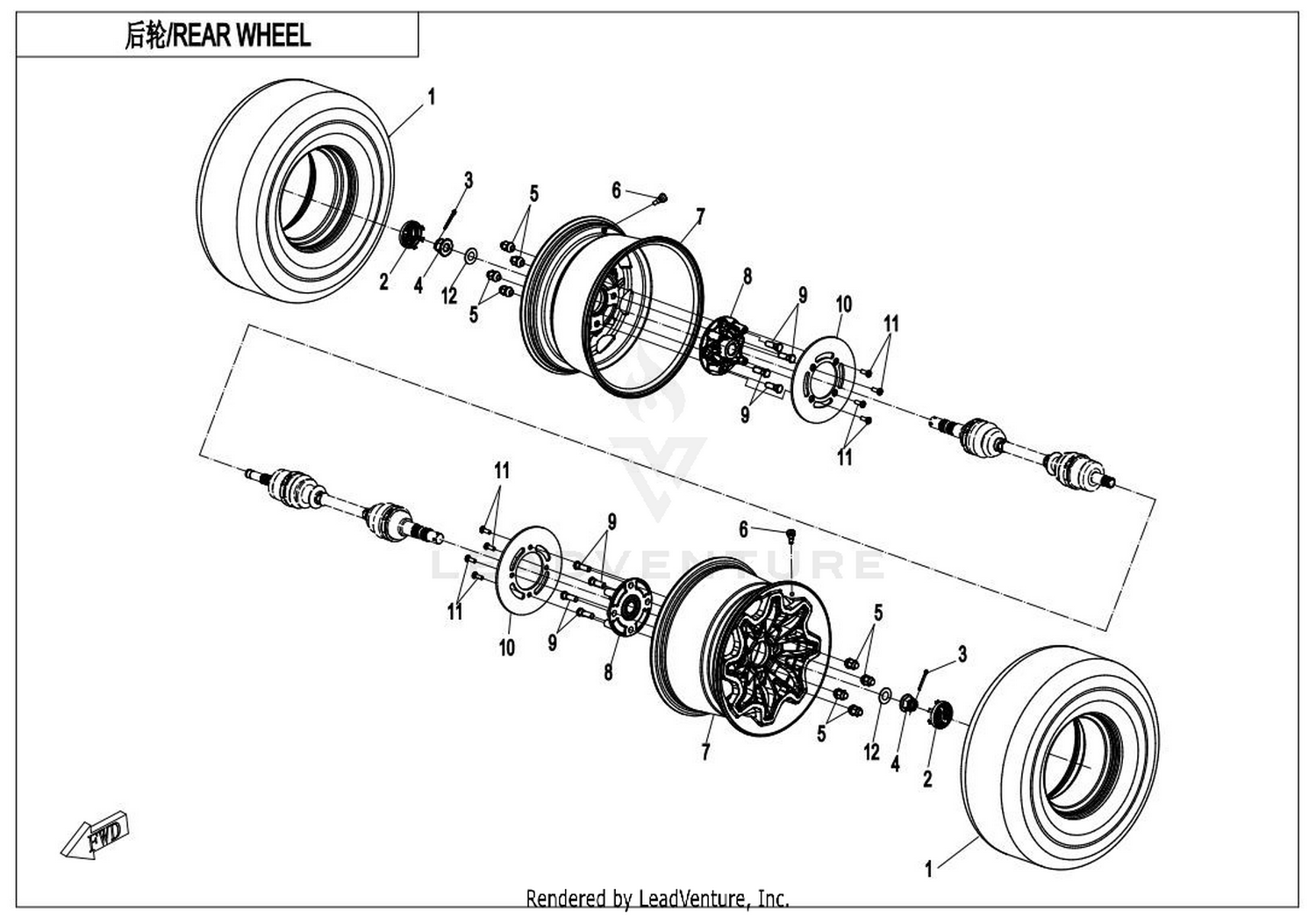

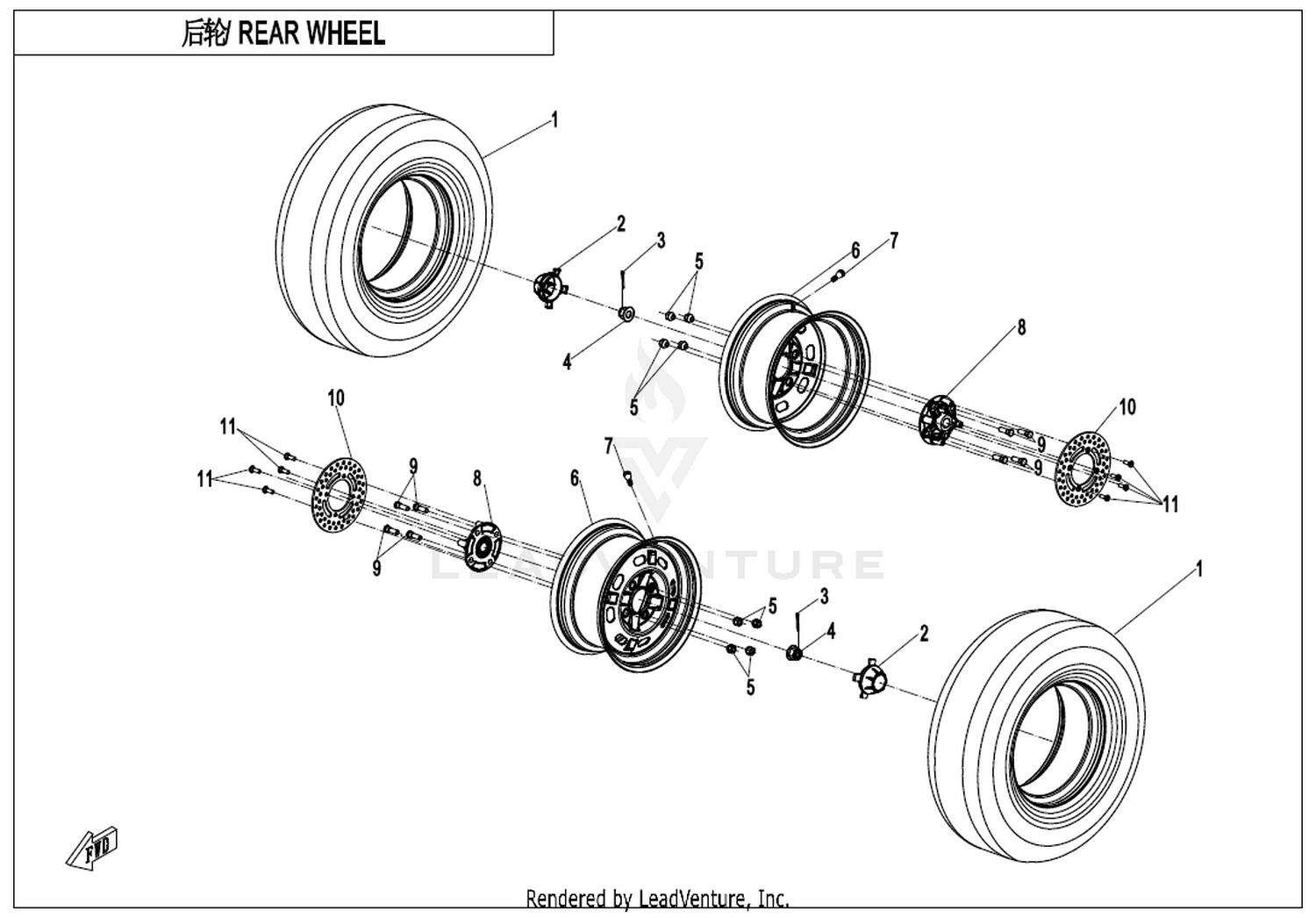

Other parts on this diagram — Rear Wheel
- #07 5BY0-110100 — Rear Rim
- #02 7020-070101-1000 — Deco Cover, Aluminum Rim With Cf Logo
- #08 5HYV-070001-1400 — Front Wheel Hub
- #03 30903-0403610 — Cotter Pin 40X36@Color Zinc Trivalent Chromium
- #09 5HY0-070201 — Wheel Bolt
- #04 5HY0-110001 — Hex Flange Nut
- #10 5HY0-080001 — Front Brake Disc
- #05 5HY0-070203 — Wheel Nut
- #11 A000-080001 — Screw
- #07 5BYA-070030 — Inflation Valve
- #12 30306-200112 — Washer Color Zinc Trivalent Chromium
