Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

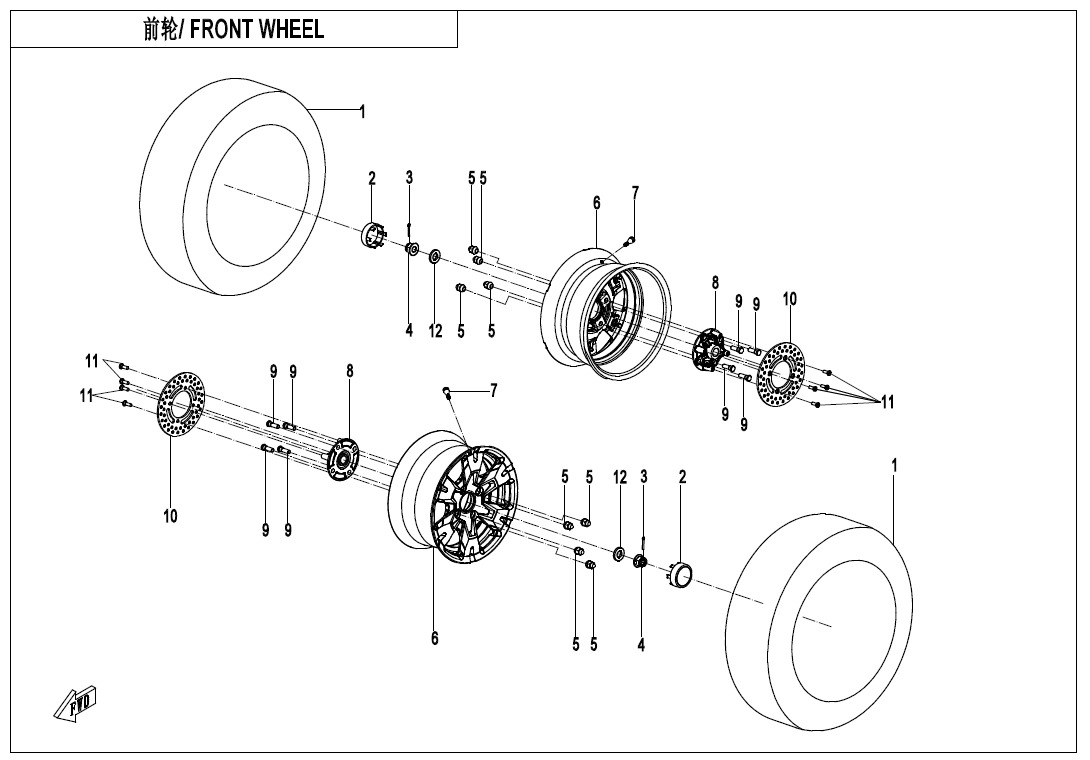

Other parts on this diagram — FRONT WHEEL
- #2 5ASV-070101-6001 — DECO COVER, RIM
- #3 30903-0403610 — COTTER PIN
- #4 5HYV-110001-1F00 — HEX FLANGE NUT
- #5 5HY0-070203 — NUT, WHEEL
- #6 5HY0-070100-10000 — FRONT RIM MATTE BLACK
- #6 5HY0-070100-20000 — FRONT RIM MATTE BLACK, BRIGHT EDGE ALUMINUM RIM
- #7 5190-070030-1000 — VALVE, INFLATION
- #8 5HYV-070001-1400 — BRACKET, FRONT WHEEL
- #9 5HY0-070201 — BOLT, WHEEL
- #10 5HY0-080001 — FRONT BRAKE DISC
- #11 A000-080001 — SCREW
- #12 30306-200112 — WASHER
