Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

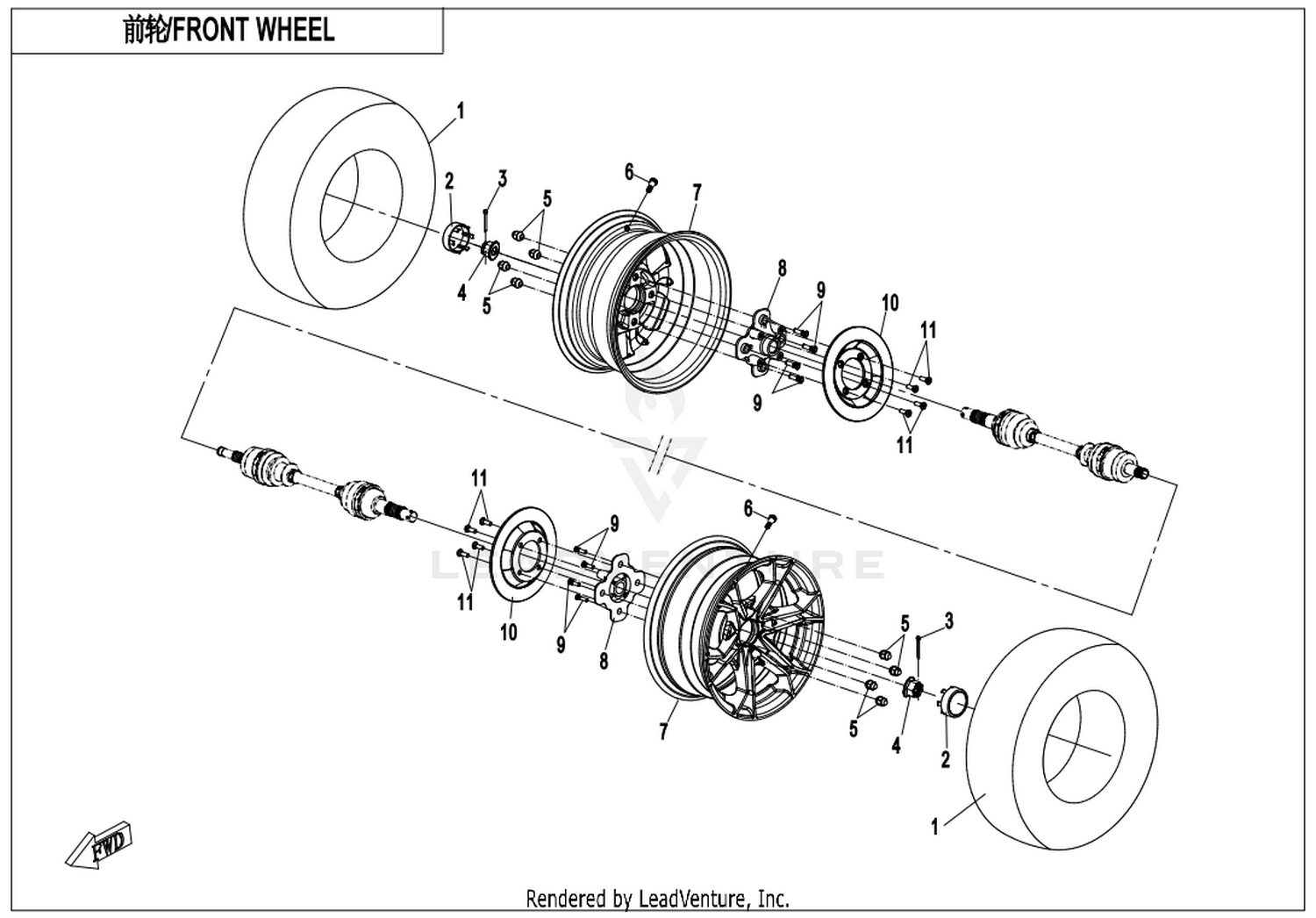

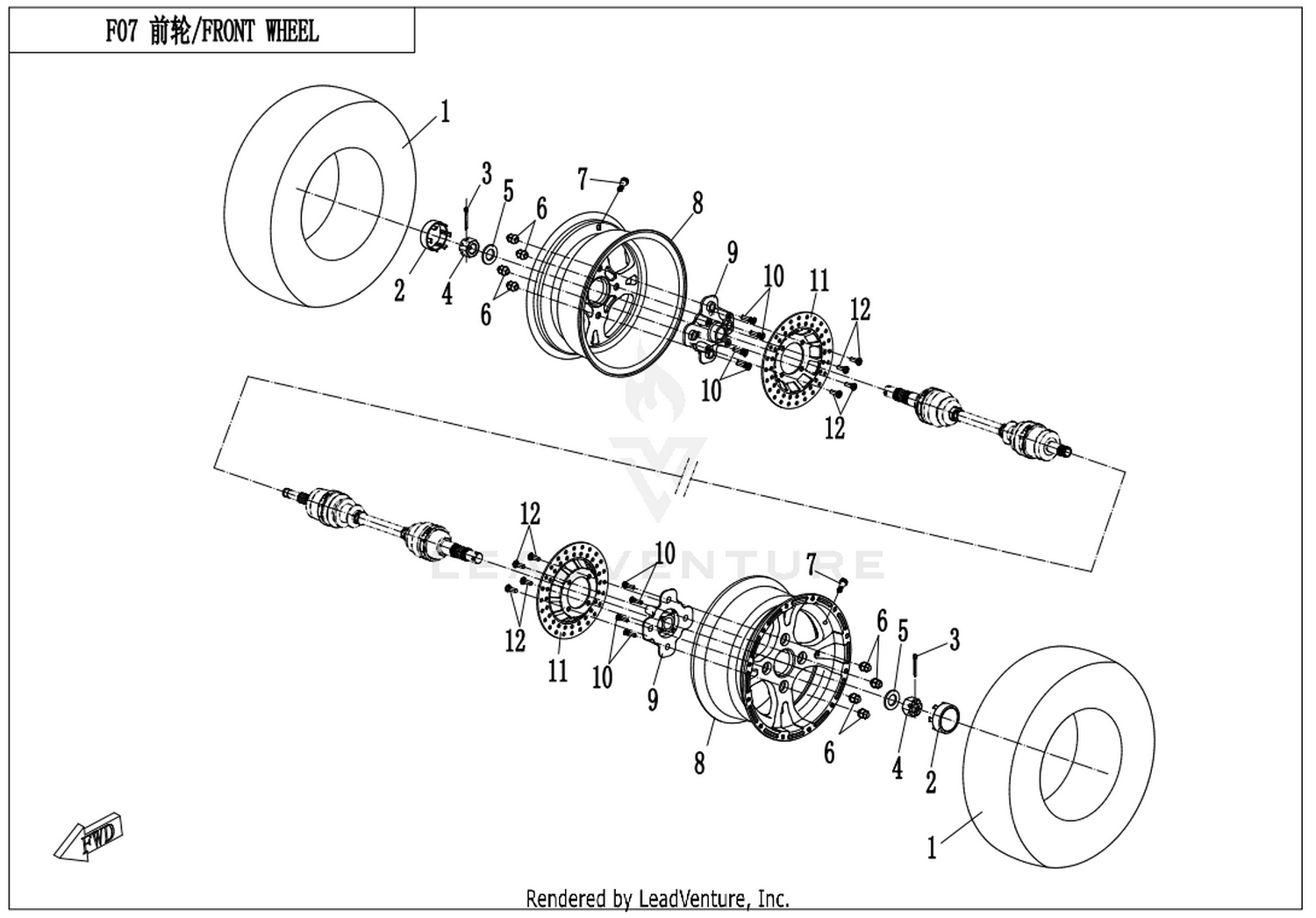

Other parts on this diagram — Front Wheel
- #05 9010-070002-A000 — Mounting Nut, Rim Chrome Plated
- #09 9010-070201 — Front Wheel Bracket Bolt
- #01 30703-1435 — Tire Na@27X9-14@Zhengxin
- #07 5190-070030-1000 — Inflation Valve
- #11 7020-080003-00001 — Front Brake Disc
- #02 7020-070101-1000 — Deco Cover, Aluminum Rim With Cf Logo
- #08 9SW0-070100 — Front Rim 14X7.0 At@Alum Rim@Black
- #11 A000-080001 — Screw
- #01 30703-1425 — Front Tire 26X8-14, 51K, Cst, Euro, E-Mark, Environmental Vacuum Tire
- #02 5ASV-070101-6001 — Deco Cover Aluminum Rim
- #08 7020-070100-0B200 — Front Rim 12X6.0@Matte Black
- #01 30703-1431 — Tire 26×9-14 64K
- #03 30903-0403610 — Cotter Pin 40X36@Color Zinc Trivalent Chromium
- #08 9SW0-070100-0B200 — Front Rim 14X7.0@Alum Rim@Bake Matte Black
- #01 30703-1243 — Tire 27X9-12 51K@Environmental Vacuum Tire
- #04 5HY0-110001 — Hex Flange Nut
- #09 9GQV-070001-1400 — Front Wheel Hub
