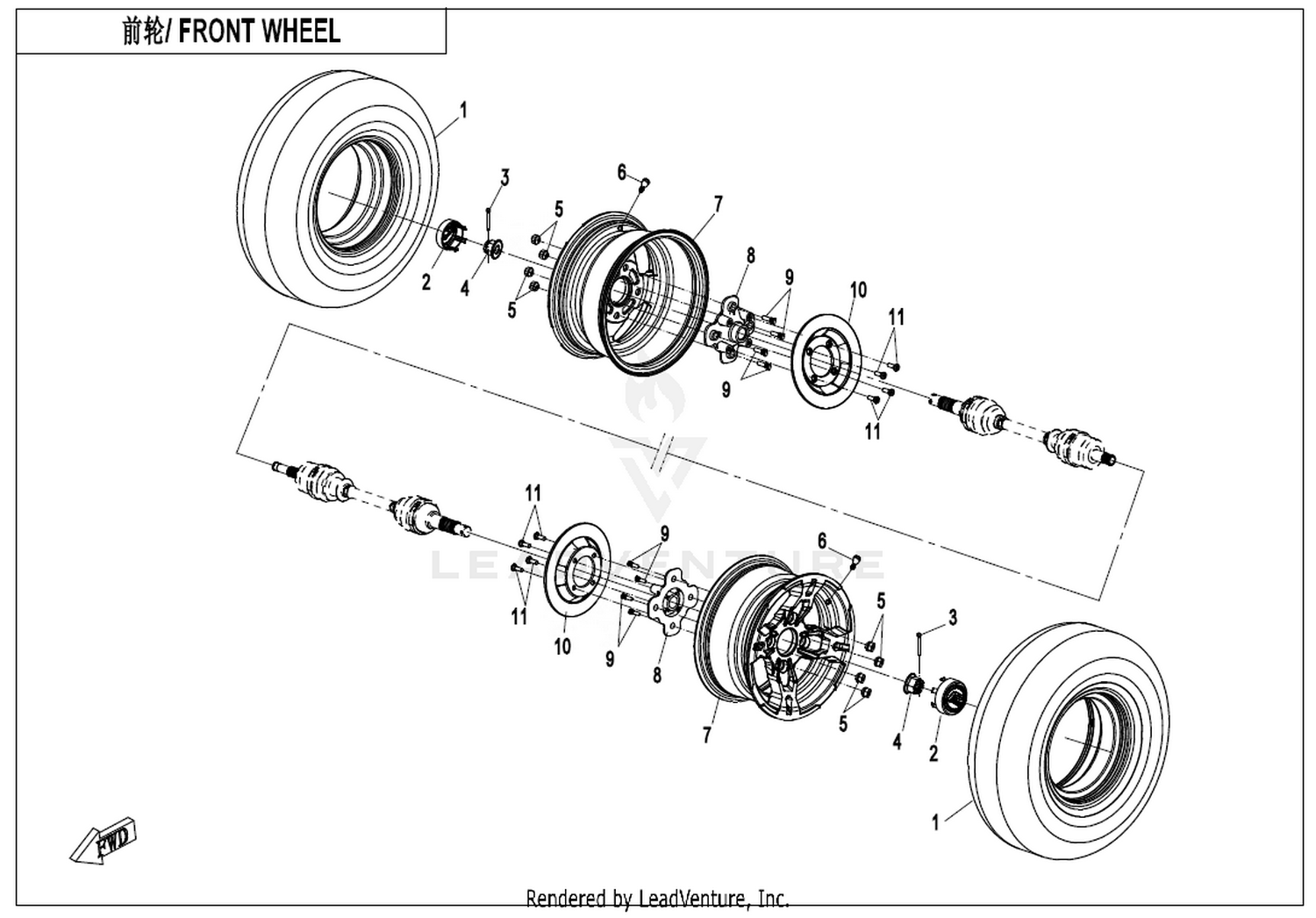

Location in exploded diagrams
Other parts on this diagram — Front Wheel
- #04 5HYV-110001-1F00 — Hex Flange Nut
- #06 5ASV-070100-6G00 — Front Rim 12X6.0 At@Steel Rim
- #01 30703-1232 — Tire 26X9-12 49J 6Pr
- #05 9010-070002-A000 — Mounting Nut, Rim Chrome Plated
- #08 9GQV-070001-1401 — Front Wheel Hub
- #02 5ASV-070101-6001 — Deco Cover Aluminum Rim
- #05 9010-070002 — Mounting Nut, Rim Army Green
- #09 9010-070201 — Front Wheel Bracket Bolt
- #02 9DQV-070101-3000 — Deco Gover Steel Rim
- #07 5190-070030-1000 — Inflation Valve
- #11 7020-080003-00001 — Front Brake Disc
- #03 30903-0403610 — Cotter Pin 40X36@Color Zinc Trivalent Chromium
- #07 9CSV-070100-6R00-11 — Front Rim Full Matte Black@Aluminum Rim@12X6.0At
- #11 A000-080001 — Screw
- #01 30703-1275 — Tire 25X8-12 6Pr(60J)@Environmental Vacuum Tire@With Cfmoto Logo
- #04 5HY0-110001 — Hex Flange Nut
- #07 9CSV-070100-6R00 — Front Rim Matte Black Bright@Aluminum Rim@12X6.0At
