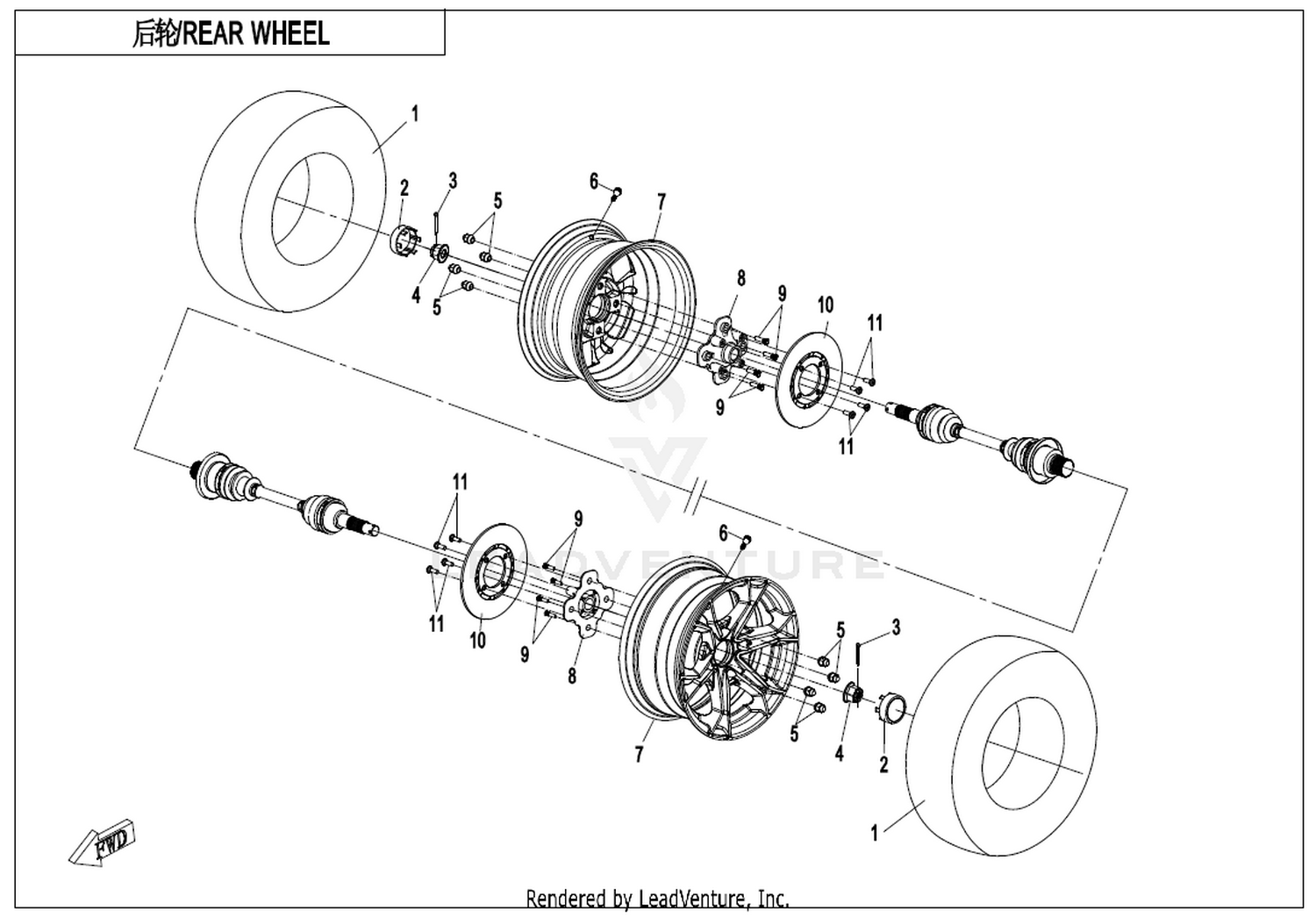

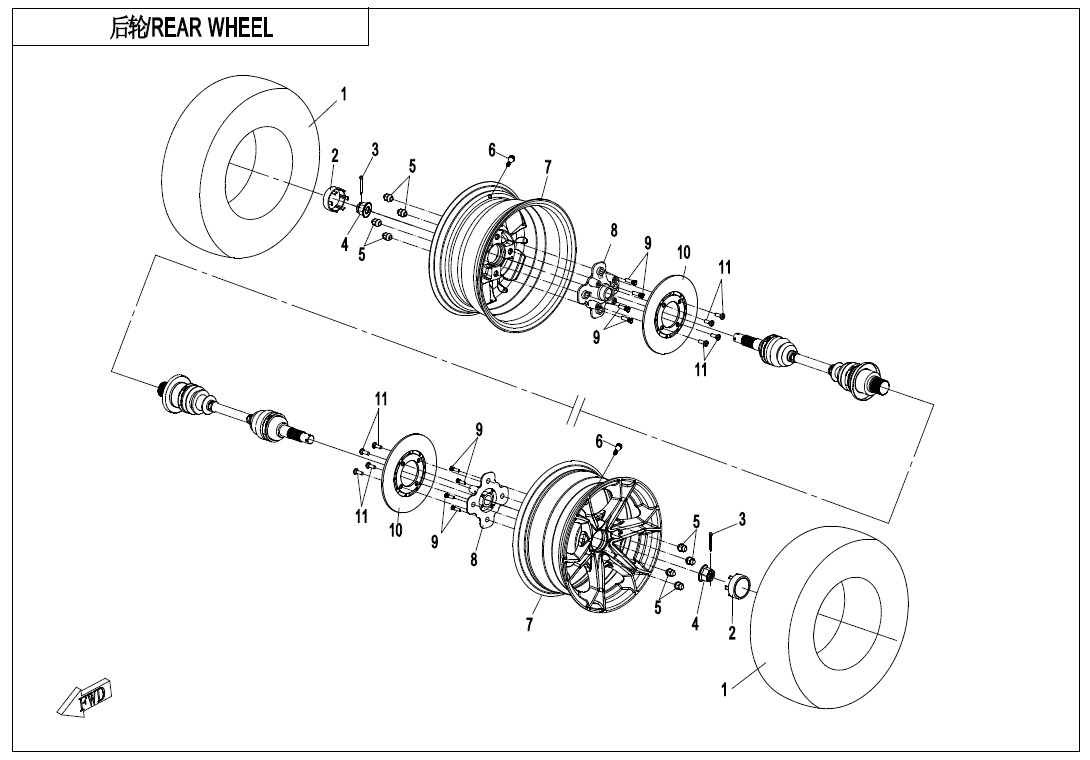

Location in exploded diagrams
Other parts on this diagram — REAR WHEEL
- #1 30703-1436 — REAR TYRE
- #1 30703-1272 — TYRE
- #1 30703-1476 — TYRE
- #2 5ASV-070101-6001 — DECO COVER, RIM
- #3 30903-0403610 — COTTER PIN
- #4 5HYV-110001-1F00 — HEX FLANGE NUT Replacing: 5HY0-110001 - HEX FLANGE NUT
- #5 9010-070002-A000 — MOUNTING NUT, CHROME PLATED
- #6 5190-070030-1000 — VALVE, INFLATION
- #7 9AWV-110100-8000 — REAR RIM 14" - MIST SILVER BLACK
- #8 9AWV-110001-2B01 — REAR WHEEL BRACKET
- #9 9010-070201 — BOLT, FRONT WHEEL BRACKET
- #10 7020-080004-00001 — REAR BRAKE DISC
- #10 9AWV-080002-8000 — REAR BRAKE DISC
- #11 A000-080001 — SCREW
