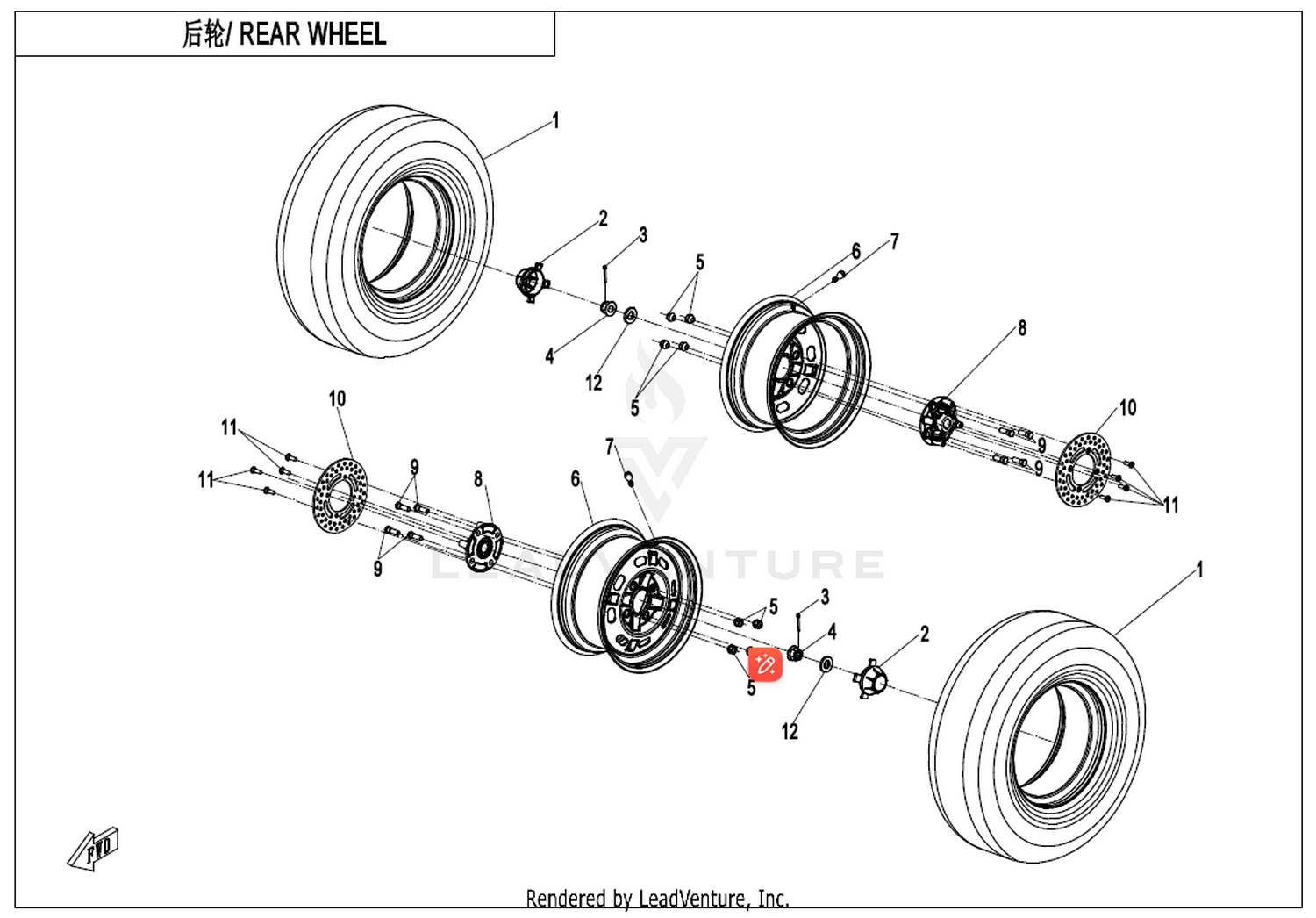

Location in exploded diagrams





Other parts on this diagram — Rear Wheel
- #07 5190-070030-1000 — Inflation Valve
- #02 5ASV-070101-6001 — Deco Cover Aluminum Rim
- #08 5ASV-070001-6001 — Front Wheel Hub
- #03 30903-0403610 — Cotter Pin 40X36@Color Zinc Trivalent Chromium
- #09 9010-070201 — Front Wheel Bracket Bolt
- #04 5HY0-110001 — Hex Flange Nut
- #10 5HY0-080001 — Front Brake Disc
- #05 9010-070002-A000 — Mounting Nut, Rim Chrome Plated
- #11 A000-080001 — Screw
- #06 5ASV-110100-5000-11 — Rear Rim 12X7.5At
- #12 30306-200112 — Washer Color Zinc Trivalent Chromium
