Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 256.22 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 236.88 | listing | cfmoto.quadzillaparts.co.uk |

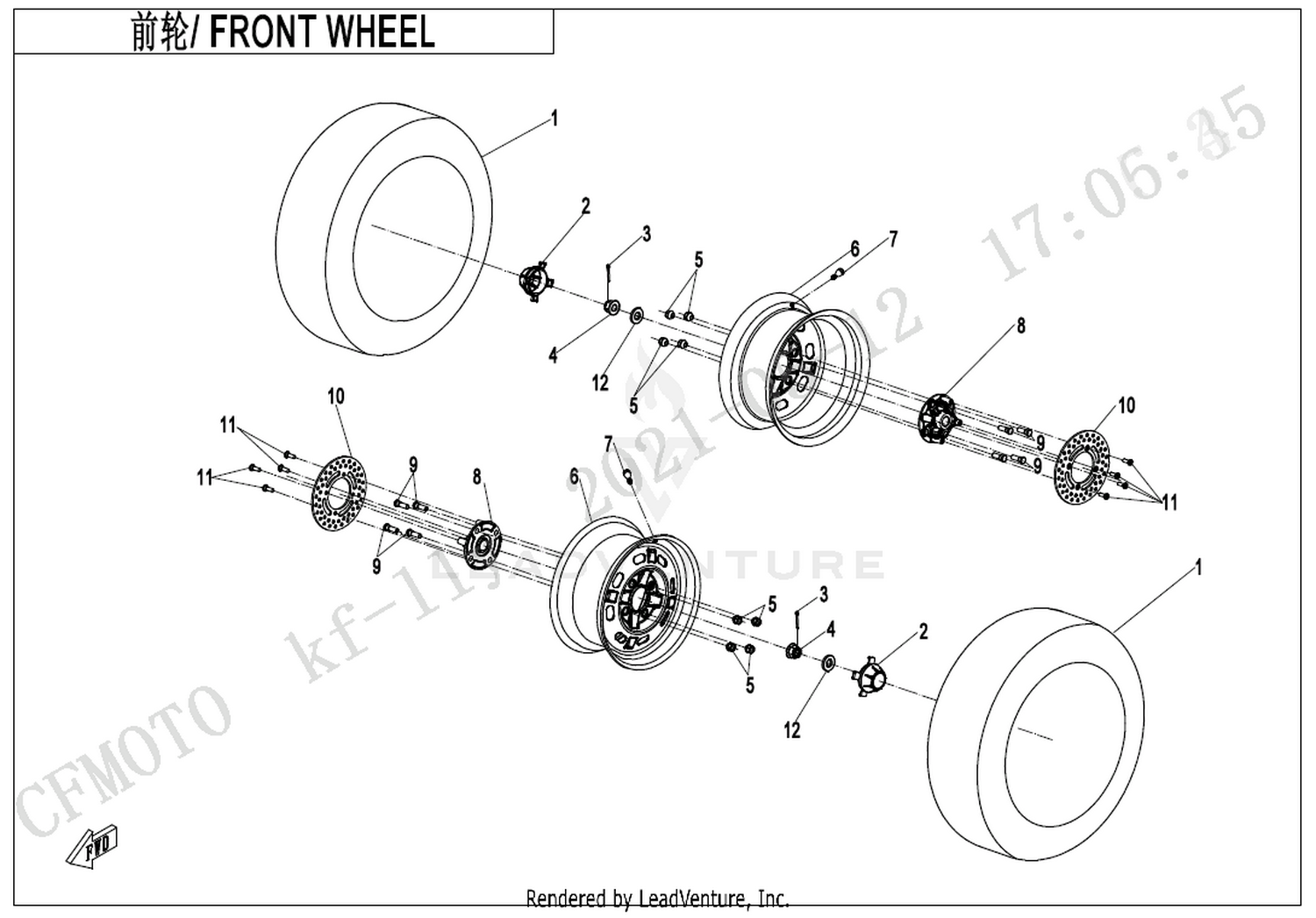

Location in exploded diagrams





Other parts on this diagram — Front Wheel
- #06 5ASV-070100-5000-11 — Front Rim 12X6.0At
- #12 30306-200112 — Washer Color Zinc Trivalent Chromium
- #07 5190-070030-1000 — Inflation Valve
- #02 5ASV-070101-6001 — Deco Cover Aluminum Rim
- #08 5ASV-070001-6001 — Front Wheel Hub
- #03 30903-0403610 — Cotter Pin 40X36@Color Zinc Trivalent Chromium
- #09 9010-070201 — Front Wheel Bracket Bolt
- #04 5HYV-110001-1F00 — Hex Flange Nut
- #10 5HY0-080001 — Front Brake Disc
- #05 9010-070002-A000 — Mounting Nut, Rim Chrome Plated
- #11 A000-080001 — Screw
