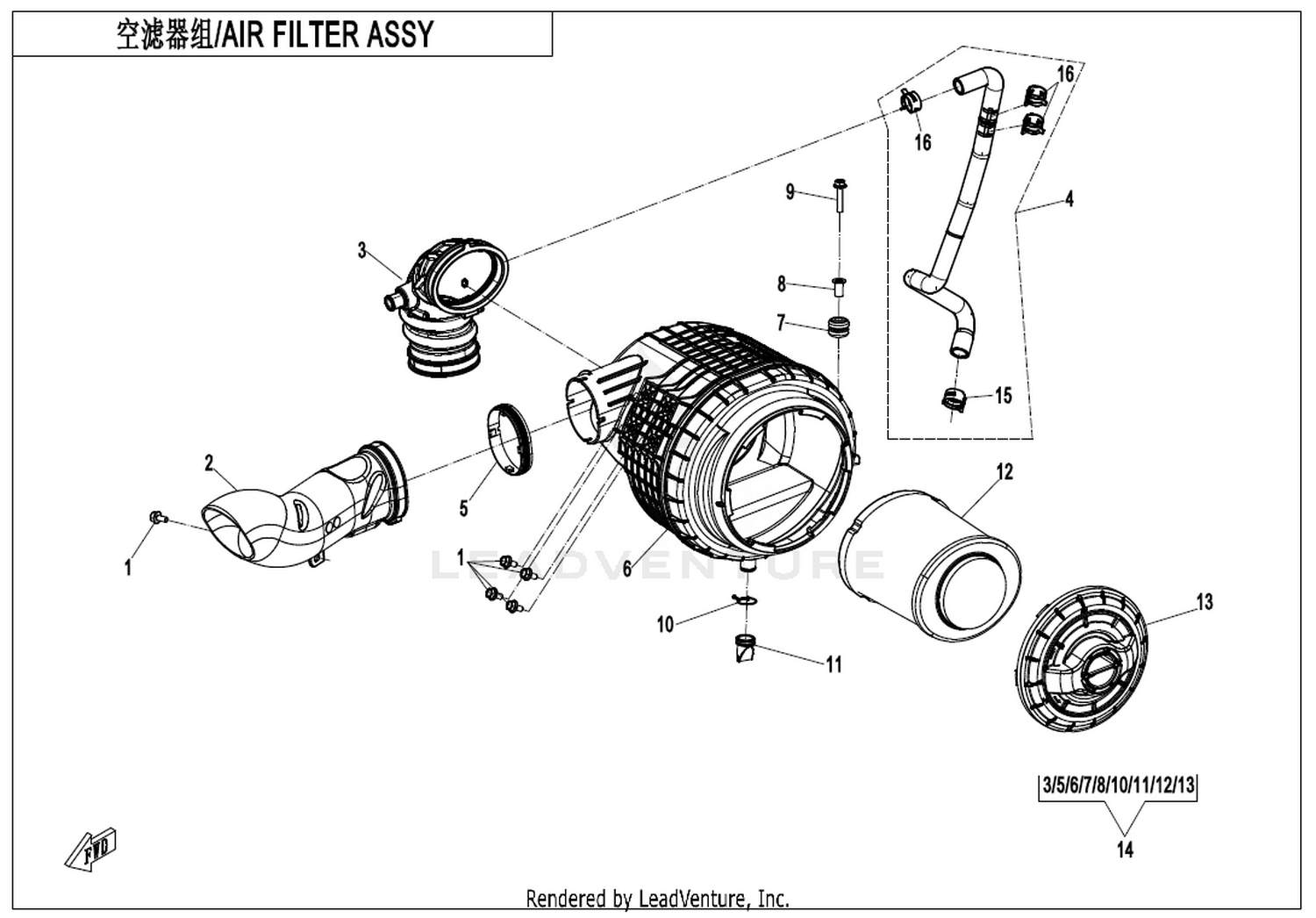

Location in exploded diagrams

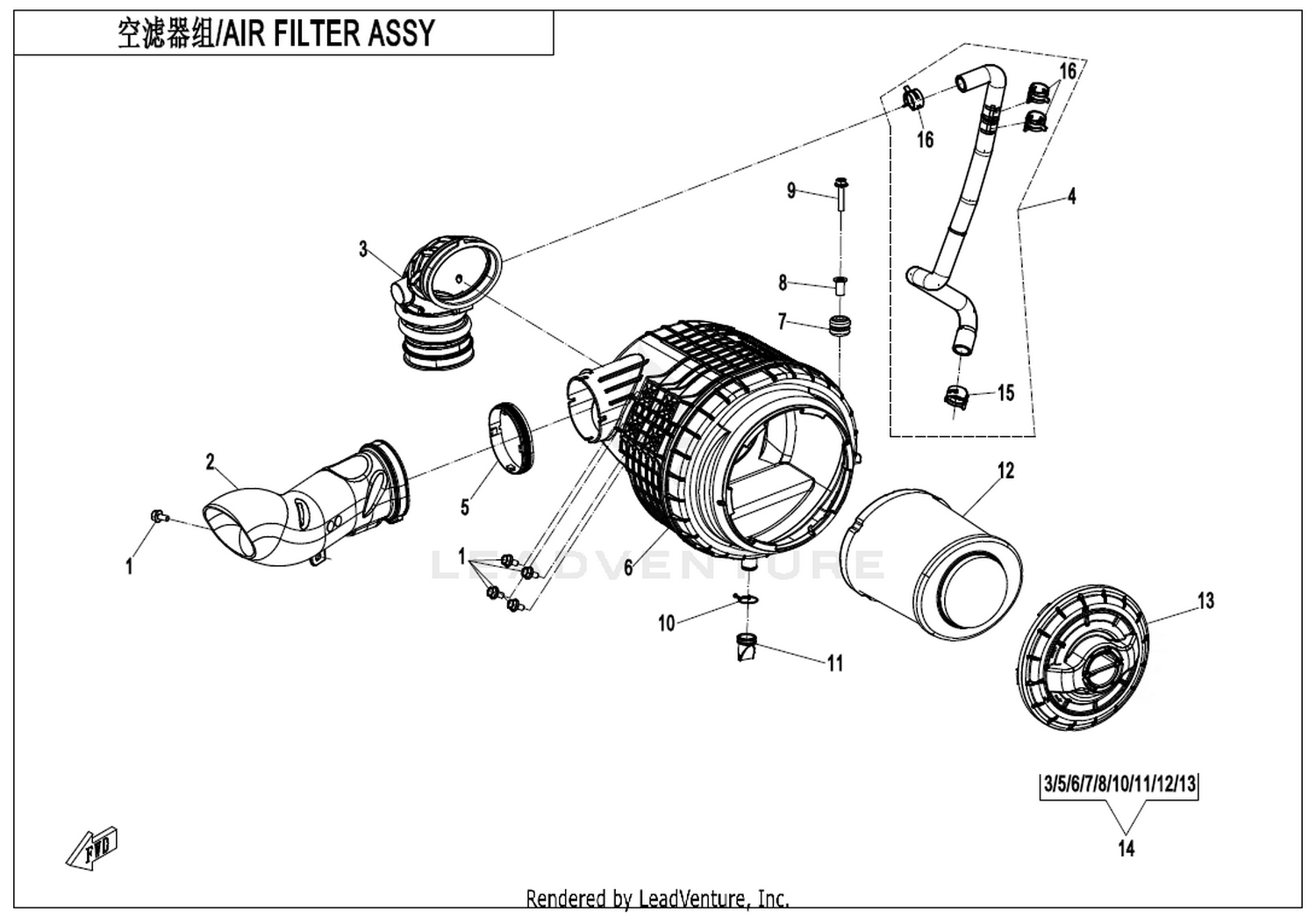

Other parts on this diagram — Air Filter Assy 1
- #04 0JWV-114000-3002 — Crankcase Breather Tube Assy
- #10 0JYV-112000-5000-22 — Clamp
- #05 0JYV-112000-5000-23 — Air Intake Pipe Gasket
- #11 0JYV-112000-5000-21 — Dust Release Valve
- #06 0JWV-112002-3000 — Air Filter Housing
- #12 0JYV-112100-5001 — Air Filter Element Assy
- #08 30006-060012870 — Bolt M6X12@Black Zinc
- #07 0JYV-112000-5000-27 — Rubber Ring
- #13 0JYV-112001-5001 — Air Filter Cover
- #02 0JYV-111000-5001 — Air Filter Intake Pipe Assy
- #08 0JYV-112000-5000-26 — T-Bushing
- #14 0JWV-112000-3002 — Air Filter Sub Assy
- #03 0JWV-113000-3001 — Air Filter Exhaust Pipe Assy
- #06 30006-060030810 — Bolt M6×30
- #15 30601-221050 — Clamp B21
