Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)

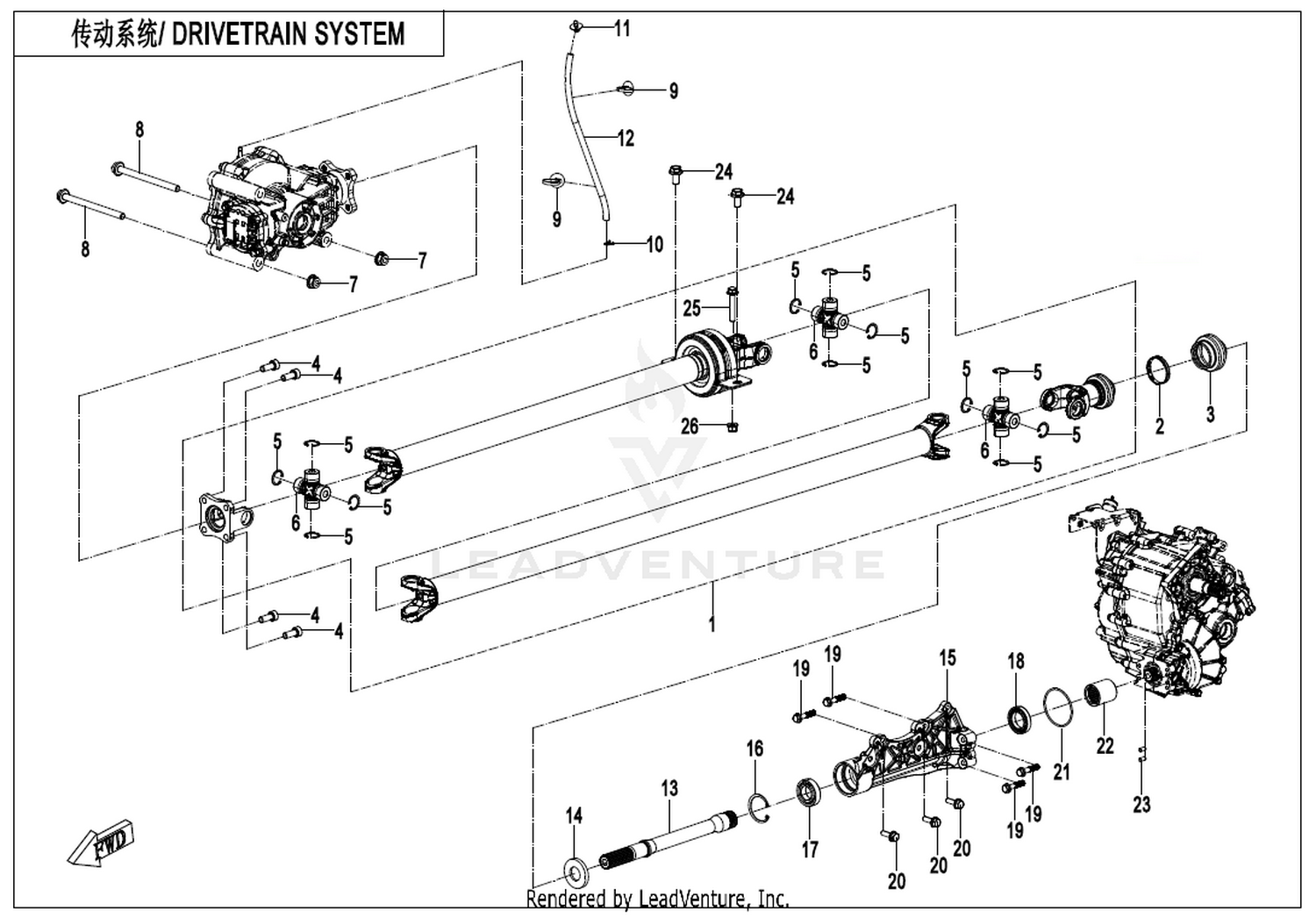

Location in exploded diagrams
Other parts on this diagram — Drivetrain System
- #08 9GQ0-290104 — Big Clamp
- #16 30006-102130810 — Bolt M10X1.25X130@Color Zinc Trivalent Chromium
- #14 0NYV-069607-1000 — Oil Seal 25×52×7
- #19 0110-060010-0030 — Bolt M8X38
- #03 5HYV-290101-6000 — Sleeve
- #19 7030-150005 — Tie Band
- #15 0NYV-069601-1000 — Gearbox Bracket 1
- #32 0130-011114-00001 — Bolt
- #15 30204-080810 — Lock Nut M8
- #02 30102-102025810 — Screw M10X1.25X25@Color Zinc-Plated
- #17 30601-108010 — Clamp A8@Color Zinc Trivalent Chromium
- #15 0NYV-069601-1001 — Gearbox Bracket 1
- #15 0800-014003 — O-Seal Ring 63X2.5
- #20 30800-02505 — Circlip For Hole A-D25 25
- #11 9AWV-315001-8000 — Breather Hose Connector
- #11 30800-04705 — Circlip For Hole 47
- #22 0NYV-069608-1000 — Output Spline Sleeve
- #01 5SYV-290100-8000 — Front Drive Shaft
- #19 7020-290130-10000 — Universal Joint Dia 25X64 Dia 25X64
- #10 9010-310001 — Front Gear Case Breather Hose
- #17 0NYV-069603-1000 — Bearing 6005
- #62 01A0-056004 — Dowel Pin F6×12 6X12
- #01 5SYV-290100-8001 — Front Drive Shaft
- #04 30204-102810 — Nut M10×1.25
