Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

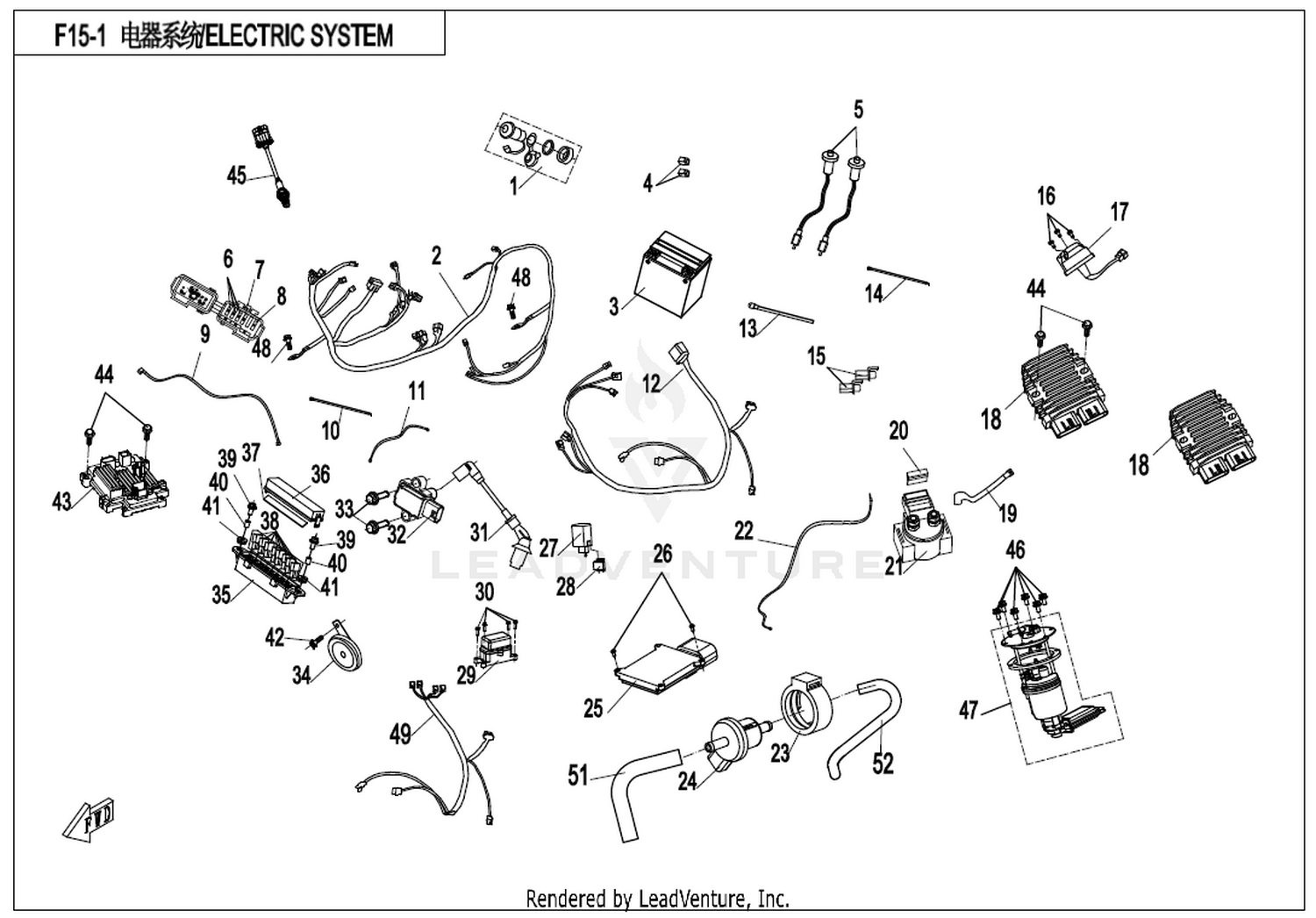

Other parts on this diagram — Electric System
- #16 7020-150500-1000 — Power Outlet Socket Assy Sumitomo Plug
- #05 A010-170300-2000 — Adjusting Button, Clock
- #11 9CR6-150240 — Negative Cable, Battery
- #29 30105-050030410 — Screw M5X30
- #11 9010-150301 — Fuse 22A
- #10 30110-480160010 — Self-Tapping Screw St4.8X16@Color Zinc Trivalent Chromium
- #13 30006-060025840 — Needs Description
- #04 30006-060016870 — Bolt M6×16
- #14 018B-176000 — Oxygen Sensor
- #16 7020-150500 — Power Outlet Socket Assy Ordinary
- #12 806A-151303 — Fuse 15A
- #12 9CR6-150300 — Efi Auxiliary Cable
- #32 7020-150800 — Trailer Power Socket Ordinary
- #26 9010-150310-10001 — Starter Relay
- #05 4020-150340 — Flasher
- #03 5020-150700 — Electric Horn
- #06 6090-040303 — Bushing
- #02 9CR6-150100-10002 — Main Cable
- #23 806A-151302 — Fuse 10A 10A
- #12 9CR6-150300-10000 — Efi Auxiliary Cable Sumitomo Plug
- #32 7020-150800-1000 — Trailer Power Socket Sumitomo Plug
- #26 7020-150220 — Cable, Starting Motor
- #07 8010-150002 — Cushion Washer, Flasher
- #06 7020-040411 — Relay Box
