Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

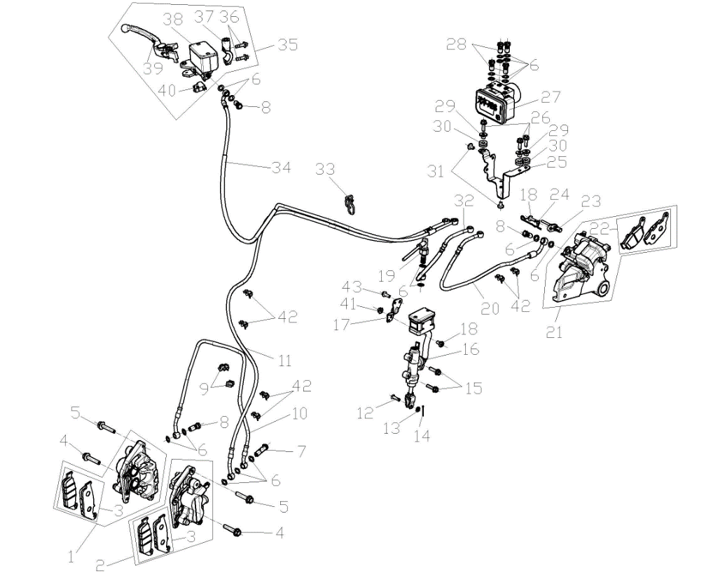

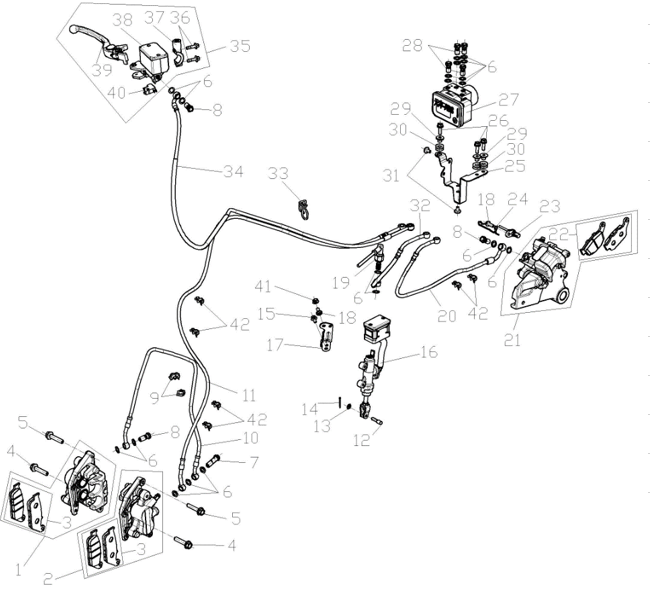

Other parts on this diagram — F13 - Brake System
- 380140067-0013 — Voge DS525X E5+ BOLT,HEXAGON FLANGE
- 380950467-0001 — Voge DS525X E5+ CLAMP,TUBE
- 380370003-0014 — Voge DS525X E5+ NUT,HEXAGON FLANGE
- 291500071-0001 — Voge DS525X E5+ SWITCH ASSY.,FRONT DISC-BRAKE
- 271720252-0001 — Voge DS525X E5+ Front Brake Lever
- 271740064-0001 — Voge DS525X E5+ CLIP,RIGHT LEVER
- 380140045-0002 — Voge DS525X E5+ SCREW,HEXAGON SOCKET
- 291480178-0001 — Voge DS525X E5+ CYLINDER ASSY.,MASTER
- 294180105-0001 — Voge DS525X E5+ ABS CONNECTIVE OIL TUBE
- 380940890-0001 — Voge DS525X E5+ CLAMP,WIRE
- 294180118-0001 — Voge DS525X E5+ ABS CONNECTIVE OIL TUBE
- 380190421-0001 — Voge DS525X E5+ SCREW,HEXAGON SOCKET
- 380890174-0001 — Voge DS525X E5+ I-RUBBER
- 380820512-0004 — Voge DS525X E5+ COLLAR
- 291800034-0002 — Voge DS525X E5+ BOLT,DISC-BRAKE HOSE
- 291820061-0001 — Voge DS525X E5+ ABS.ANTI-LOCKING UP SYSTEM
- 380140077-0012 — Voge DS525X E5+ BOLT,HEXAGON FLANGE
- 297700025-0001 — Voge DS525X E5+ INSTALLATION BRACKET, ABS
- 380940854-0001 — Voge DS525X E5+ CLAMP,WIRE
- 281920033-0001 — Voge DS525X E5+ SPEED SENSOR
- 292400025-0001 — Voge DS525X E5+ Rear Brake Pads
- 292010050-0001 — Voge DS525X E5+ PUMP, REAR DISC-BRAKE LOWER
- 294180100-0001 — Voge DS525X E5+ ABS CONNECTIVE OIL TUBE
- 271760174-0001 — Voge DS525X E5+ SWITCH ASSY.,REAR BRAKE
