Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 287.99 | listing | motogbshop.co.uk |
Location in exploded diagrams

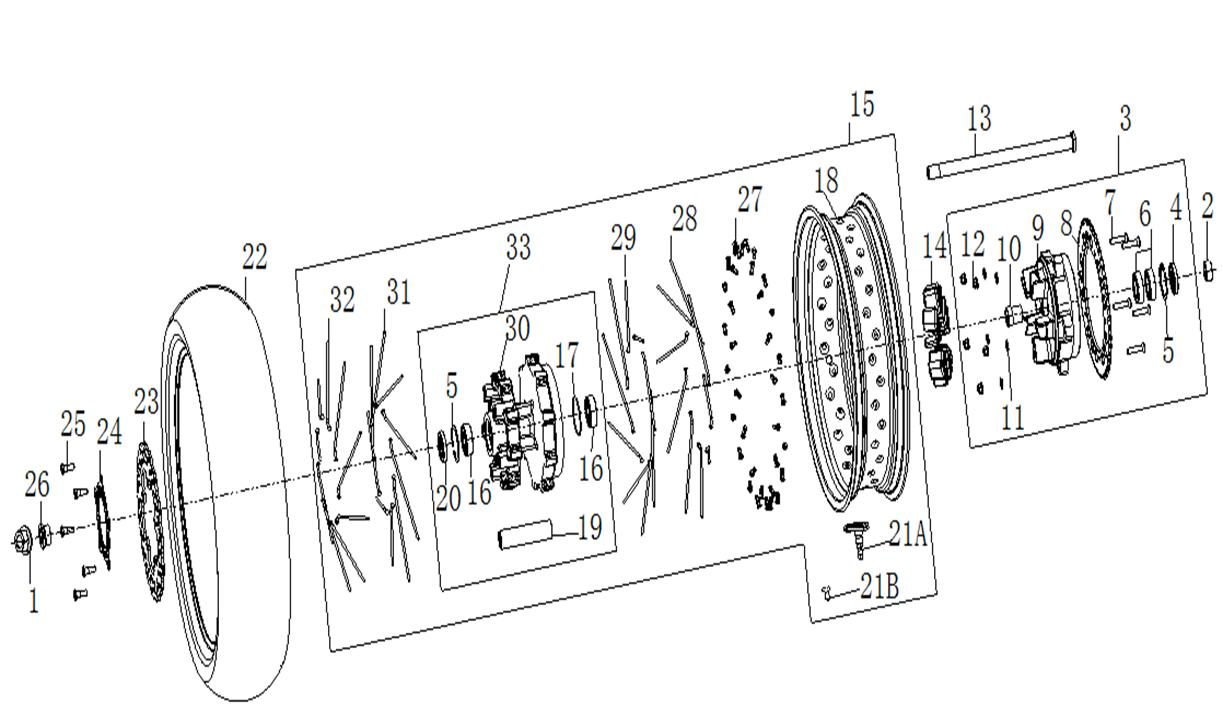

Other parts on this diagram — Rear Wheel Assy
- 290280070-0001 — Voge 525 ACX HUB,REAR WHEEL
- 290290045-0001 — Voge 525 ACX BODY SET,REAR WHEEL HUB
- 290250084-0001 — Voge 525 ACX SPOKE,REAR WHEEL INSIDE
- 290240101-0001 — Voge 525 ACX SPOKE,REAR WHEEL OUTSIDE
- 290260008-0001 — Voge 525 ACX NUT,REAR WHEEL SPOKE
- 380822735-0003 — Voge 525 ACX COLLAR
- 291440040-0001 — Voge 525 ACX FASTENING BOLT,BRAKE DISK
- 297710004-0001 — Voge 525 ACX GEAR RING, ABS
- 291930052-0001 — Voge 525 ACX Rear Brake Disc
- 290150801-0001 — Voge 525 ACX TYRE ASSY.
- 293620003-0001 — Voge 525 ACX CORE,VALVE
- 274470003-0001 — Voge 525 ACX SENSOR?TIRE PRESSURE
- 380650582-0001 — Voge 525 ACX OIL SEAL
- 292150141-0001 — Voge 525 ACX LINING COMP.,HUB
- 380841176-0001 — Voge 525 ACX RING,SEAL
- 380630208-0001 — Voge 525 ACX BEARING
- 290310093-0001 — Voge 525 ACX DAMPING PIECE,REAR WHEEL SINGLES
- 380870985-0001 — Voge 525 ACX AXIS
- 380550113-0002 — Voge 525 ACX CHECK RING,ELASTIC
- 380400007-0008 — Voge 525 ACX NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE
- 380450031-0001 — Voge 525 ACX WASHER,PLAIN
- 380823653-0001 — Voge 525 ACX COLLAR
- 290420263-0001 — Voge 525 ACX SPROCKET WHEEL
- 290440040-0001 — Voge 525 ACX BOLT,SPROCKET WHEEL
